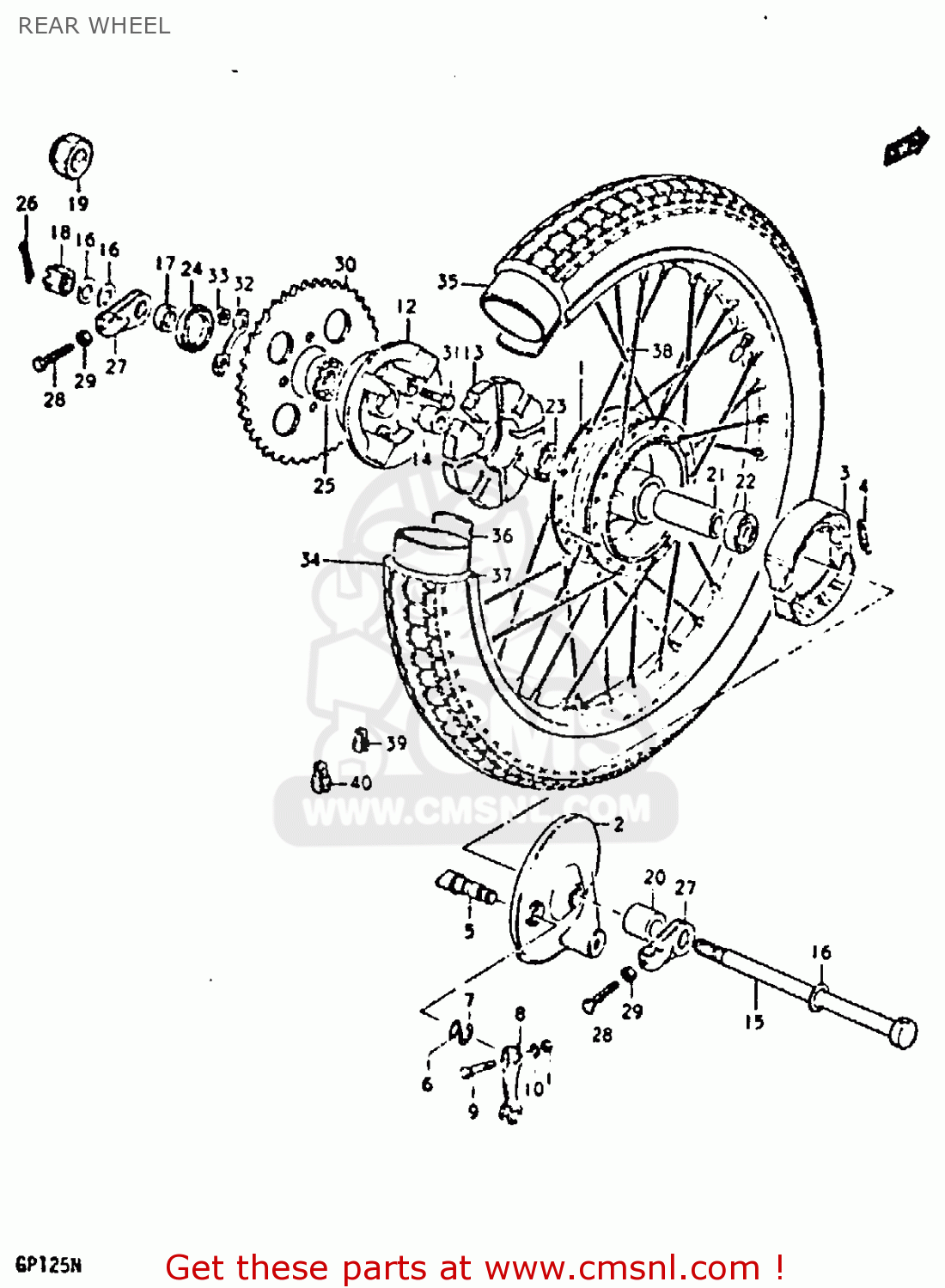

REAR WHEEL

ref

part #

description

quantity

1-2

6411007002
ref: 1-2
TO 64110-07003

HUB, REAR

€ 234.00

2-2

6421039110
ref: 2-2

PANEL, REAR HUB

€ 125.00

3

5441007002
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5
FROM 54441-29301

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

6445148000
ref: 8

LEVER,RR BRAKE CAM

€ 32.50

9

0910006078
ref: 9

BOLT(6X33)

€ 2.50

10

0832221068
ref: 10

WASHER

€ 2.00

11

0831011068
ref: 11

NUT

€ 2.50

12

6461107000
ref: 12

DRUM,RR SPROCKET

€ 47.00

13

6465107001
ref: 13

ABSORBER ASSY,HUB SHOCK

€ 16.00

14

6473339100
ref: 14

RETAINER,RR SPROCKET MTG

€ 17.00

15

6471148000
ref: 15

AXLE,REAR

€ 35.50

16

0832211148
ref: 16

WASHER

€ 2.00

17

0918015042
ref: 17

SPACER(15X28X19)

€ 5.50

18

0914114001
ref: 18

NUT

€ 4.50

20

0918015002
ref: 20

SPACER(15.2X26X33)

€ 5.00

21

0918015011
ref: 21
15.3*21.7*63

SPACER(15.3X21.7X63)

€ 7.50

22

0814463027
ref: 22

BEARING

€ 17.50

23

0814362027
ref: 23

BEARING

€ 12.50

24

0928328002
ref: 24

OIL SEAL

€ 11.50

25

0811362040
ref: 25

Bearing

€ 28.00

26

0411130308
ref: 26

COTTER PIN

€ 1.50

27

6141036001
ref: 27

ADJUSTER,CHAIN

€ 11.50

28

0910408006
ref: 28

BOLT

€ 3.00

29

0831012088
ref: 29

NUT

€ 2.00

30-2

6451120100
ref: 30-2
E2, E4, E17, E18, E2

SPROCKET,REAR

€ 65.00

31

0910508001
ref: 31

BOLT(8X33.5)

€ 2.50

32

0916908012
ref: 32

WASHER

€ 2.00

33

0831012088
ref: 33

NUT

€ 2.00

34

6510036600
ref: 34

TIRE

€ 120.00

35

5520011601
ref: 35

TUBE,INNER

€ 24.50

36-2

5526111010
ref: 36-2
E2, E4, E17, E18, E2

PROTECTOR,INNER TUBE

€ 3.50

37-2

6531120120
ref: 37-2
E2, E4, E17, E18, E2

RIM,REAR WHEEL

€ 86.50

38

6530020808
ref: 38

SPOKE SET,REAR

€ 34.50

39

5541111000
ref: 39
20G

BALANCER,WHEEL (B)

€ 4.50

40

5541211000
ref: 40
30G

BALANCER,WHEEL (30G)

€ 8.00

all assemblies
