FRONT FORK (KAYABA)(GP125UC F.NO.101623~, GP125UN)

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

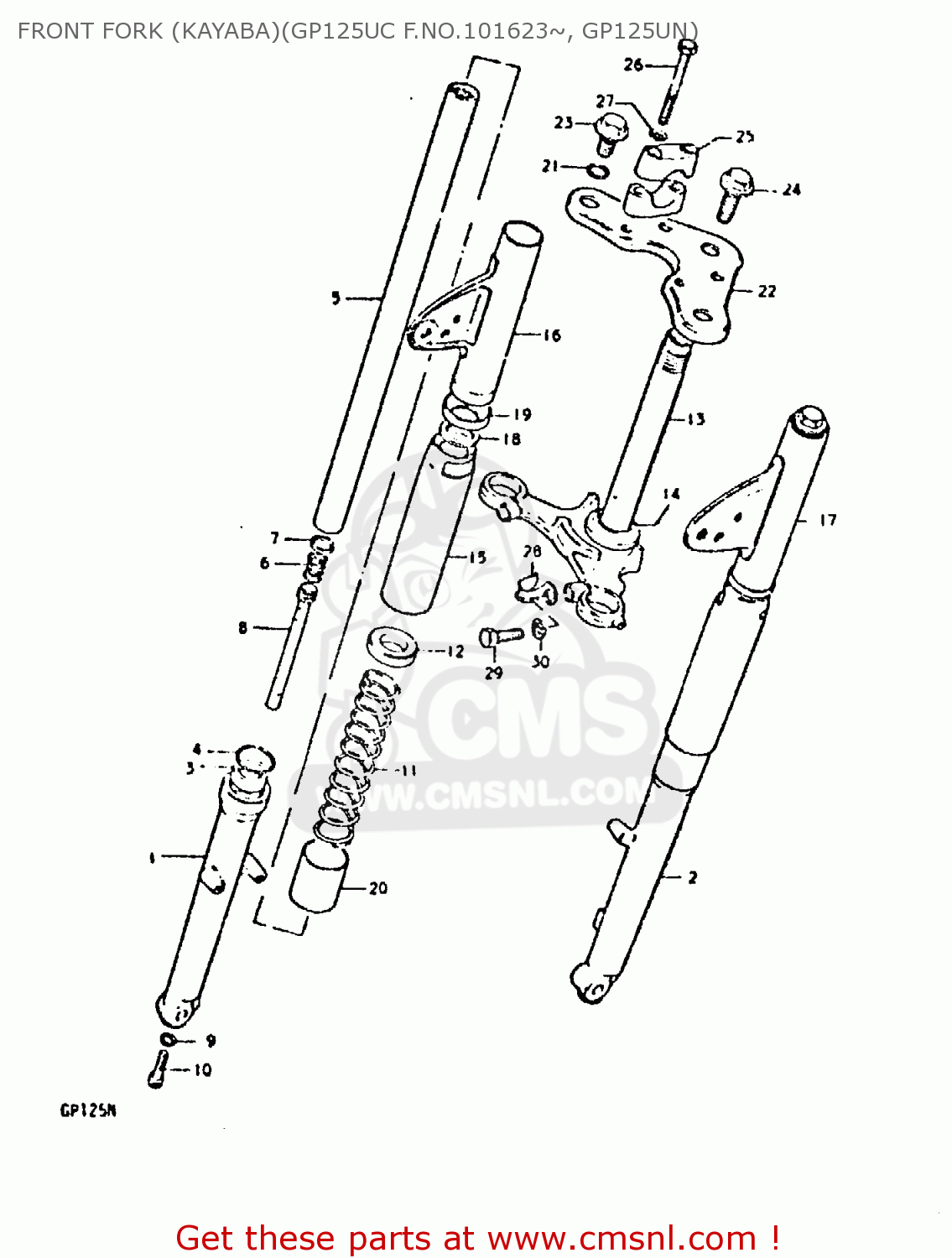

Front fork (kayaba)(gp125uc f.no.101623~, gp125un) diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

FRONT FORK (KAYABA)(GP125UC F.NO.101623~, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
FRONT FORK (KAYABA)(GP125UC F.NO.101623~, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
FRONT FORK (KAYABA)(GP125UC F.NO.101623~, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
prices are in EUR
ref
part #
description
quantity
0
5110039161291
ref: 0
FRONT FORK ASSY
€ 0.00
1
5113039161
ref: 1
TO 51130-39171
OUTER TUBE, RH
€ 0.00
2
5114039161
ref: 2
TO 51140-39171
OUTER TUBE, LH
€ 0.00
3
5115339140
ref: 3
SEAL,OIL
5115339140
€ 8.00
4
5115639140
ref: 4
RING,SNAP
5115639140
€ 4.50
5
5111139140
ref: 5
TUBE, INNER
5111139140
€ 111.00
6
5117739140
ref: 6
TO 51177-43010
SPRING
5117739140
€ 3.50
7
5119639140
ref: 7
RING
5119639140
€ 5.50
8
5114639140
ref: 8
CYLINDER
5114639140
€ 54.50
9
5114841310
ref: 9
GASKET (NAS)
5114841310
€ 2.50
10
5114716510
ref: 10
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
11
5117139160
ref: 11
SPRING
€ 0.00
12
5117239160
ref: 12
GUIDE, SPRING
€ 0.00
13
5141039140
ref: 13
STEM, STEERING
5141039140
€ 91.00
14
5162133001
ref: 14
RACE,STEERING OUTER LWR
5162133001
€ 10.00
15
5151139160291
ref: 15
COVER, OUTER
€ 0.00
16
5153039161291
ref: 16
BRACKET, HEADLAMP RH
€ 0.00
17
5154039161291
ref: 17
BRACKET, HEADLAMP LH
€ 0.00
18
5155320610
ref: 18
GASKET (NAS)
5155320610
€ 4.50
19
5155121010
ref: 19
COVER,GUIDE
€ 0.00
20
5150239160
ref: 20
COVER, OUTER TUBE
€ 0.00
21
5118143010
ref: 21
O-RING,FORK INNER TUBE
5118143010
€ 5.50
22
5131039141291
ref: 22
HEAD, STEERING STEM (BLACK)
€ 54.50
23
5135143010
ref: 23
CAP
5135143010
€ 15.00
24
5135239140
ref: 24
TO 51352-39220
BOLT
€ 4.00
25
5621127200291
ref: 25
HOLDER,HANDLE UPR
5621127200291
€ 13.50
26
0110708558
ref: 26
BOLT 8X55
€ 3.00
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
5145208010
ref: 28
CLIP,SPEEDOMETER CABLE
5145208010
€ 3.00
29
0110710308
ref: 29
BOLT 10X30
€ 3.00
30
0832121108
ref: 30
LOCK WASHER
0832121108
€ 2.00
