FRONT FORK(KAYABA)(GP125C F.NO.101265~,GP125UC F.NO.101623~)

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

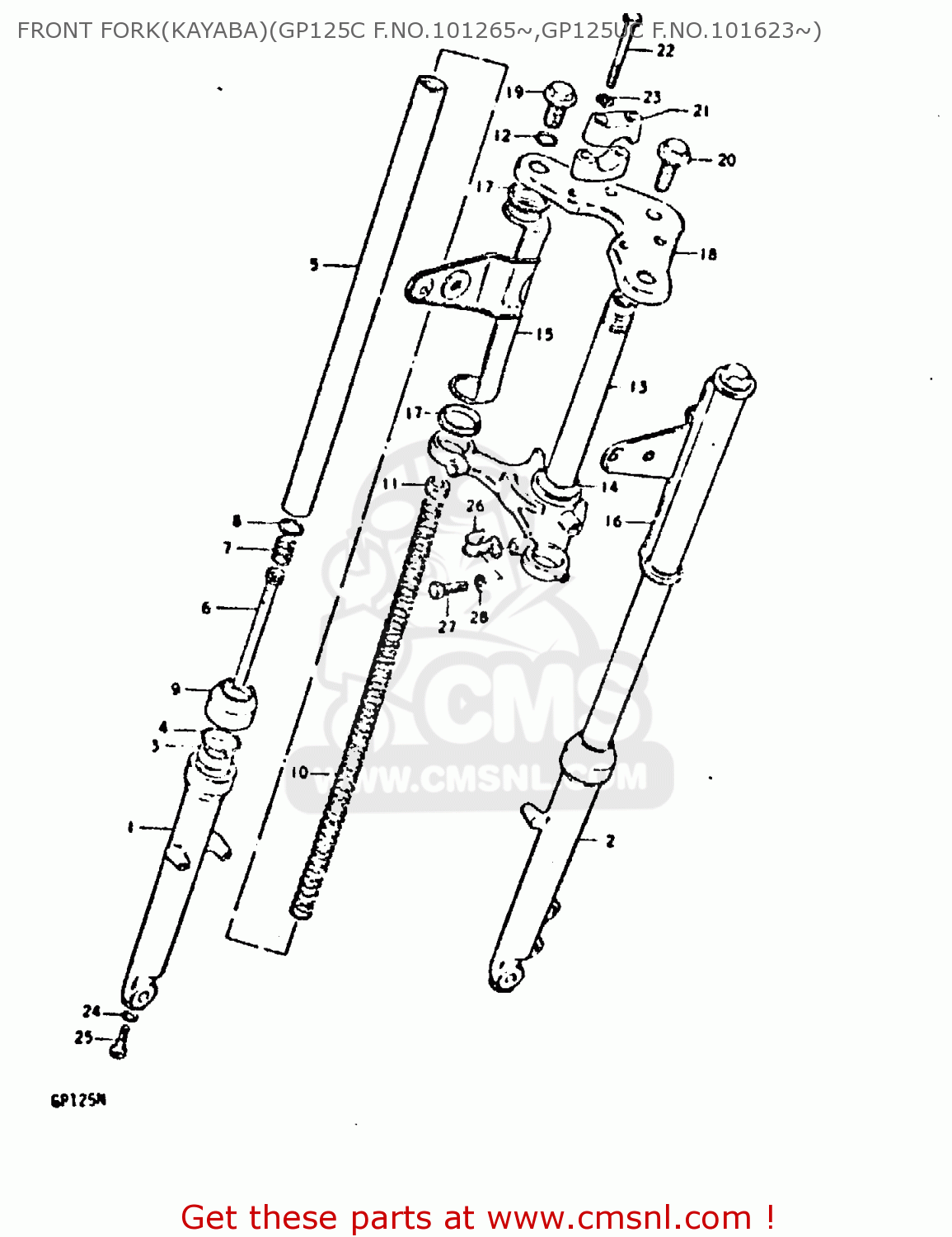

Front fork(kayaba)(gp125c f.no.101265~,gp125uc f.no.101623~) diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

FRONT FORK(KAYABA)(GP125C F.NO.101265~,GP125UC F.NO.101623~) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
FRONT FORK(KAYABA)(GP125C F.NO.101265~,GP125UC F.NO.101623~) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
FRONT FORK(KAYABA)(GP125C F.NO.101265~,GP125UC F.NO.101623~) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
prices are in EUR
ref
part #
description
quantity
0
5110039200291
ref: 0
TO 51100-39201-291
FRONT FORK ASSY
€ 0.00
1-1
5113039171
ref: 1-1
OUTER TUBE, RH
€ 132.00
2-1
5114039171
ref: 2-1
OUTER TUBE, LH
€ 118.00
3
5115339140
ref: 3
SEAL,OIL
5115339140
€ 8.00
4
5115639140
ref: 4
RING,SNAP
5115639140
€ 4.50
5
5111139140
ref: 5
TUBE, INNER
5111139140
€ 111.00
6
5114639140
ref: 6
CYLINDER
5114639140
€ 54.50
7
5117739140
ref: 7
TO 51177-43010
SPRING
5117739140
€ 3.50
8
5119639140
ref: 8
RING
5119639140
€ 5.50
9
5117339140
ref: 9
DUST SEAL
€ 6.00
10
5117139140
ref: 10
SPRING
€ 0.00
11
5135339140
ref: 11
NUT
5135339140
€ 5.00
12
5118143010
ref: 12
O-RING,FORK INNER TUBE
5118143010
€ 5.50
13
5141039210
ref: 13
STEM, STEERING
€ 0.00
14
5162133001
ref: 14
RACE,STEERING OUTER LWR
5162133001
€ 10.00
15
5153039141291
ref: 15
BRACKET, HEADLAMP RH (BLACK)
€ 35.50
16
5154039141291
ref: 16
BRACKET, HEADLAMP LH (BLACK)
€ 35.50
17
5155339140
ref: 17
GASKET (NAS)
5155339140
€ 4.00
18
5131039141291
ref: 18
HEAD, STEERING STEM (BLACK)
€ 54.50
19
5135143010
ref: 19
CAP
5135143010
€ 15.00
20
5135239140
ref: 20
TO 51352-39220
BOLT
€ 4.00
21
5621127200291
ref: 21
HOLDER,HANDLE UPR
5621127200291
€ 13.50
22
0110708558
ref: 22
BOLT 8X55
€ 3.00
23
0832121088
ref: 23
LOCK WASHER
0832121088
€ 2.00
24
5114841310
ref: 24
GASKET (NAS)
5114841310
€ 2.50
25
5114716510
ref: 25
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
26
5145208010
ref: 26
CLIP,SPEEDOMETER CABLE
5145208010
€ 3.00
27
0110710308
ref: 27
BOLT 10X30
€ 3.00
28
0832121108
ref: 28
LOCK WASHER
0832121108
€ 2.00
