HANDLEBAR (GP125C, GP125UC)

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

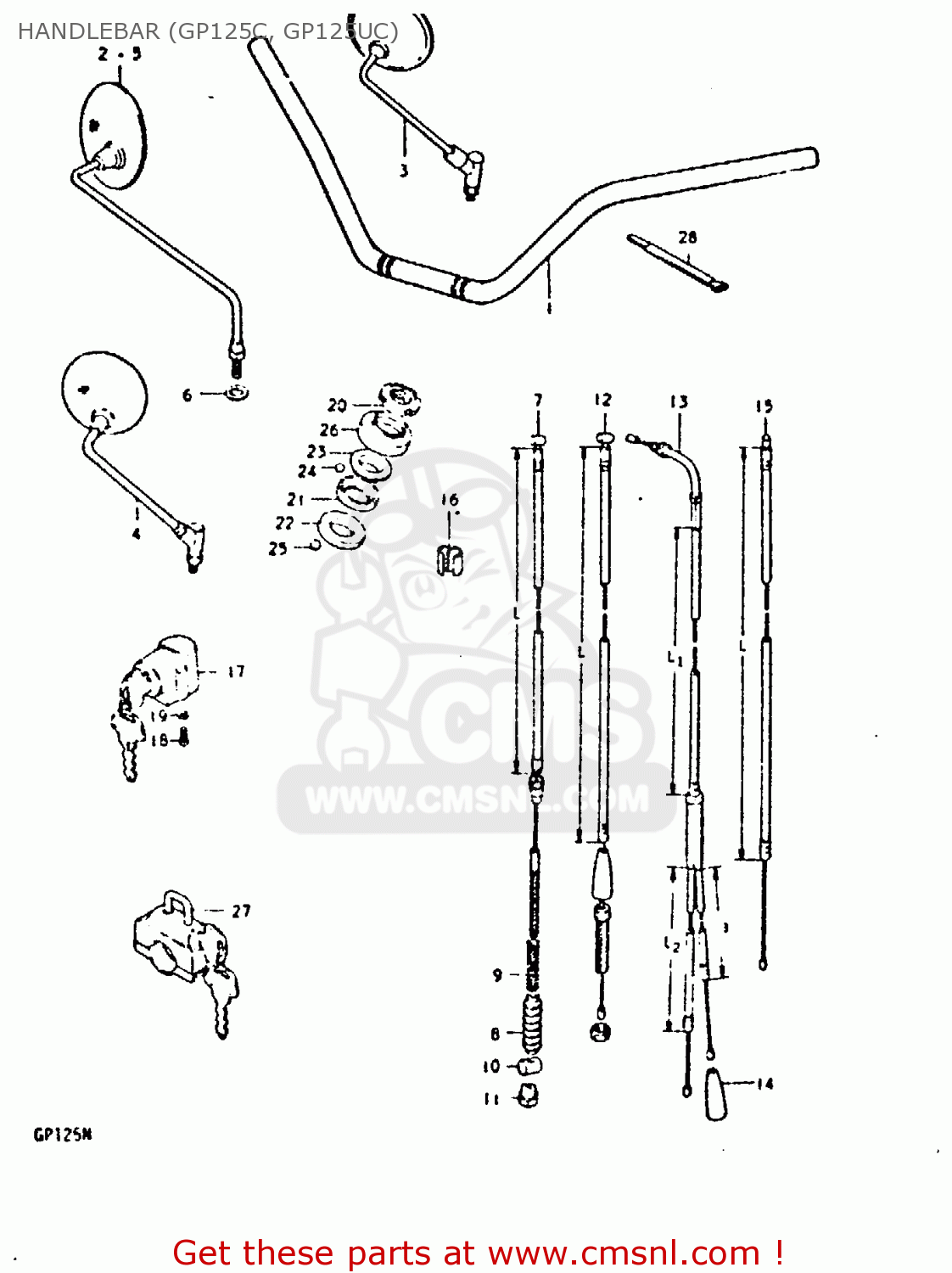

Handlebar (gp125c, gp125uc) diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

HANDLEBAR (GP125C, GP125UC) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
HANDLEBAR (GP125C, GP125UC) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
HANDLEBAR (GP125C, GP125UC) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
prices are in EUR
ref
part #
description
quantity
2-1
5650031011
ref: 2-1
TO 56500-31012
MIRROR ASSEMBLY,RIGHT
€ 65.50
3
5650028010
ref: 3
E2
MIRROR ASSY, REAR VIEW
€ 41.50
6
0832211108
ref: 6
WASHER
€ 2.50
7
5810025300
ref: 7
L:1040
CABLE ASSEMBLY,FRONT BRAKE
5810025300
€ 16.00
8
0928707001
ref: 8
SEAL,DUST(7X16X75)
0928707001
€ 2.00
9
0944006003
ref: 9
SPRING
0944006003
€ 2.00
10
0920910001
ref: 10
PIN,10X19
0920910001
€ 2.00
11
0915005101
ref: 11
NUT
0915005101
€ 3.00
12
5820039100
ref: 12
L:900
CABLE ASSY, CLUTCH (L:900)
5820039100
€ 18.50
13
5830039100
ref: 13
CABLE ASSY, THROTTLE (L1:545, L2:320, L3
5830039100
€ 24.50
14
0928707002
ref: 14
SEAL,DUST(7X18X30)
0928707002
€ 2.50
15
5841039100
ref: 15
L:870
CABLE STARTER
5841039100
€ 7.50
16
0940800005
ref: 16
CLIP
0940800005
€ 2.50
17
5191025310
ref: 17
LOCK ASSEMBLY,STEERING
€ 22.50
18
0211205128
ref: 18
SCREW
€ 2.50
19
0832121058
ref: 19
LOCK WASHER
0832121058
€ 2.00
20
5163128000
ref: 20
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
21
5161120002
ref: 21
RACE,STEERING INNER UPR
5161120002
€ 5.50
22
5161133002
ref: 22
LACE,STEERING INNER LWR
5161133002
€ 7.00
23
5162128000
ref: 23
RACE,STEERING OUTER UPR
5162128000
€ 7.00
24
0611106003
ref: 24
BALL
0611106003
€ 1.50
25
0611108003
ref: 25
BALL
0611108003
€ 1.50
26
5164325001
ref: 26
DUST SEAL,STEERING UPR
5164325001
€ 4.50
28
0940718301
ref: 28
CLAMP
0940718301
€ 6.00
