HEADLAMP (GP125C, GP125UC)

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

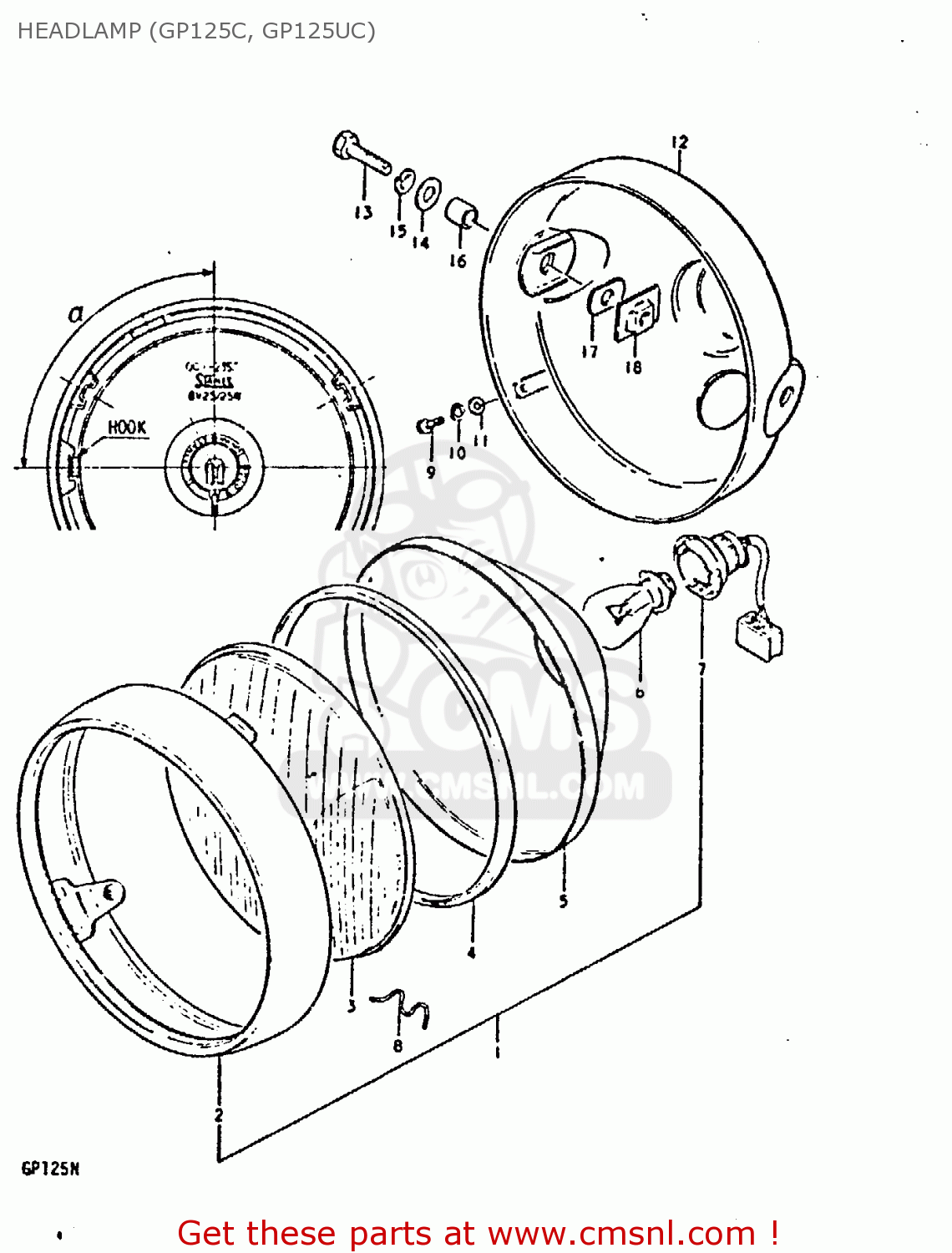

Headlamp (gp125c, gp125uc) diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

HEADLAMP (GP125C, GP125UC) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
HEADLAMP (GP125C, GP125UC) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
HEADLAMP (GP125C, GP125UC) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
prices are in EUR
ref
part #
description
quantity
9
0211204128
ref: 9
SCREW
0211204128
€ 1.50
10
0832121048
ref: 10
LOCK WASHER
0832121048
€ 2.00
11
0832221048
ref: 11
WASHER
0832221048
€ 2.00
12
5181129302291
ref: 12
HOUSING,HEADLAMP
5181129302291
€ 35.00
13
0120408257
ref: 13
BOLT
0120408257
€ 2.00
14
0832211088
ref: 14
WASHER
0832211088
€ 2.00
15
0832121088
ref: 15
LOCK WASHER
0832121088
€ 2.00
16
0918008030
ref: 16
SPACER (8.8X12X7)
0918008030
€ 3.50
17
0932912002
ref: 17
CUSHION
0932912002
€ 3.00
18
5186045000
ref: 18
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
