GS1000G 1980 (T) GENERAL EXPORT (E01)

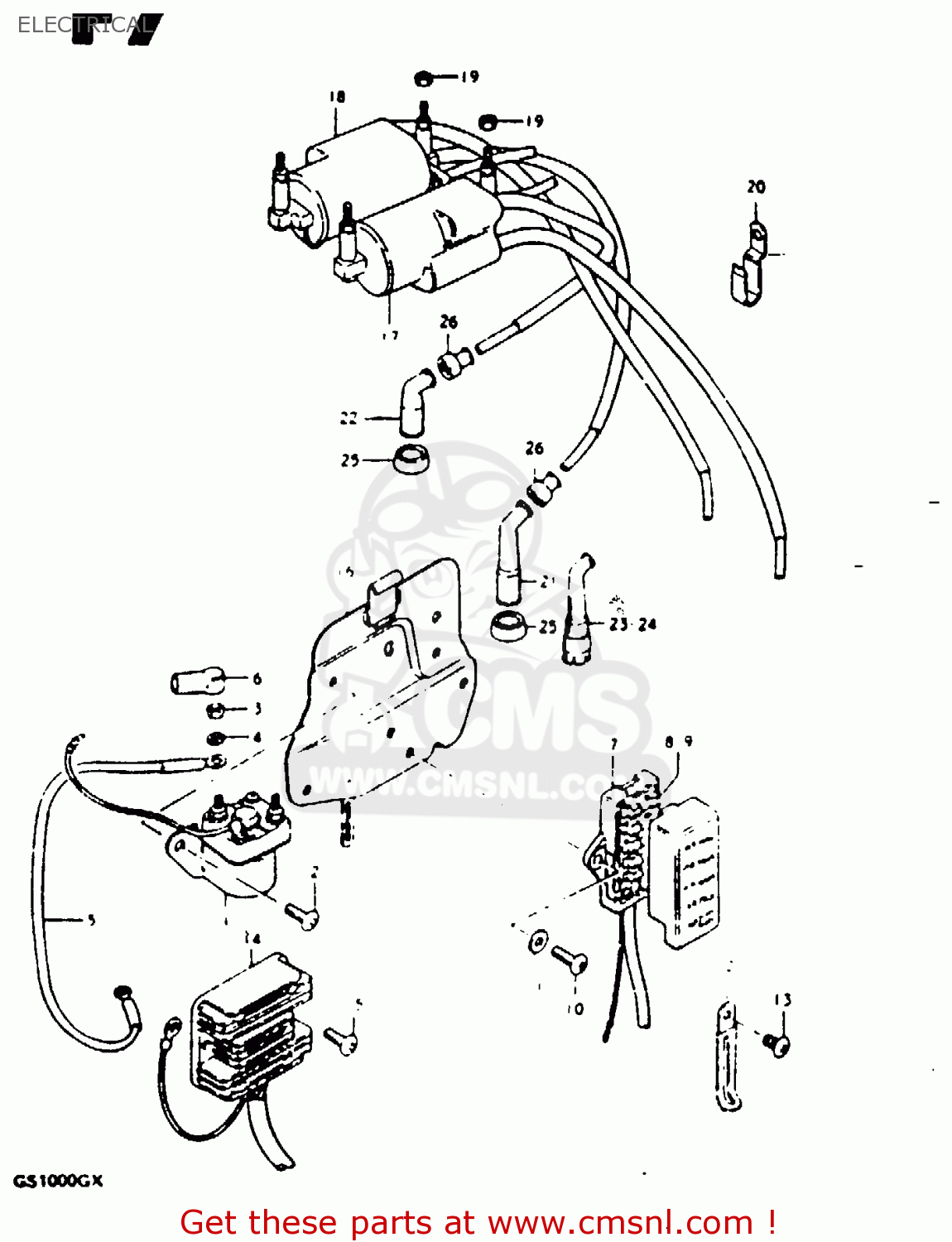

Electrical diagram GS1000G 1980 (T) GENERAL EXPORT (E01)
ELECTRICAL GS1000G 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
SCREW
€ 1.50
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
€ 2.50
5
3385010300
ref: 5
WIRE,STARTER MOTOR LEAD
€ 24.00
6
3186135100
ref: 6
CAP,STARTER RELAY
€ 4.50
7
3674049200
ref: 7
BOX ASSEMBLY,FUSE
€ 94.00
8
0948110001
ref: 8
FUSE(10A)
€ 2.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
0211206128
ref: 10
SCREW 6X12
€ 2.00
11
0832221068
ref: 11
WASHER
€ 2.00
12
0940406401
ref: 12
CLAMP L:35
€ 2.50
13
0211206088
ref: 13
SCREW
€ 2.00
14
3280045240
ref: 14
RECTIFIER ASSEMBLY
€ 248.00
15
0211206128
ref: 15
SCREW 6X12
€ 2.00
16
4741045101
ref: 16
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
17
3341045110
ref: 17
COIL ASSEMBLY,IGNITION
€ 133.50
18
3342045110
ref: 18
COIL ASSEMBLY,IGNITION
€ 133.50
19
0831011068
ref: 19
NUT
€ 2.50
20
0940306307
ref: 20
CLAMP
€ 4.50
21
NOTUSED
ref: 21
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
22
NOTUSED
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
23
3351045600
ref: 23
E2, E4, E17, E18, E2
CAP,SPARK PLUG
€ 47.00
24
3351044600
ref: 24
E2, E4, E17, E18, E2
CAP, SPARK PLUG (S)
€ 40.00
25
3354169010
ref: 25
SEAL,SPARK PLUG
€ 5.00
26
3354298000
ref: 26
SEAL,SPARK PLU
€ 4.50
