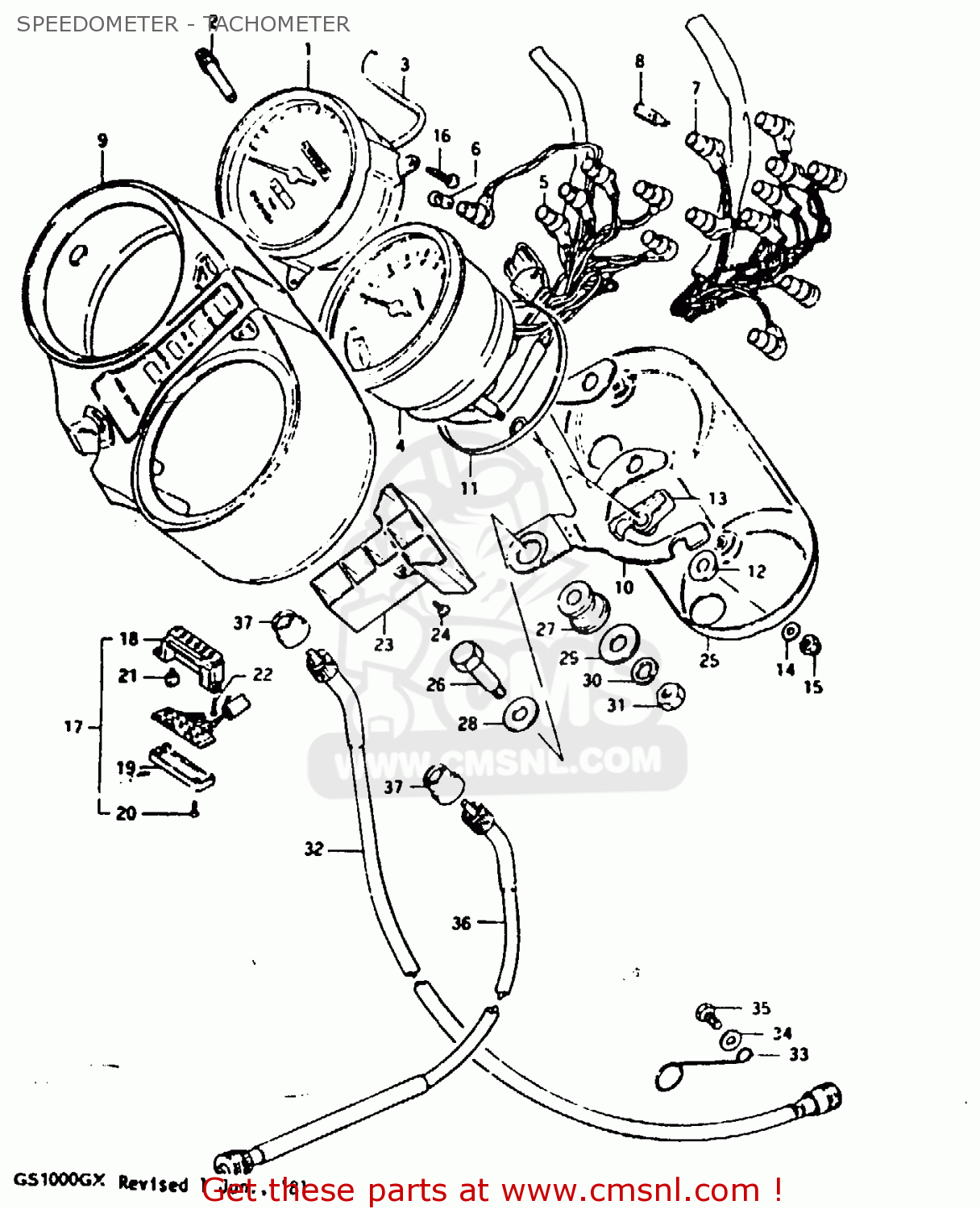

SPEEDOMETER - TACHOMETER - GS1000G 1980 (T) GENERAL EXPORT (E01)

ref

part #

description

quantity

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

3410045133
ref: 0
MILE & KILO SCALE

SPEEDOMETER ASSEMBLY

€ 253.50

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3411045132
ref: 1-2
MILE & KILO SCALE

METER,SPEEDOMETER

€ 85.50

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3498045020
ref: 2

KNOB

€ 4.50

3

3486045110
ref: 3

WIRE,LEAD

€ 20.00

4-1

3421045101
ref: 4-1
FOR KILO SCALE

TACHOMETER

€ 308.50

4-2

3421045131
ref: 4-2
FOR MILE & KILO SCAL

TACHOMETER

€ 308.50

5

3417345100
ref: 5

SOCKET,METER

€ 45.50

6

0947112001
ref: 6

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

7

3417345101
ref: 7

SOCKET,SPEEDOMETER

€ 45.50

8

0947112028
ref: 8

BULB(12V3.4W,T10)

€ 3.50

9

3415045100
ref: 9

CASE

€ 99.50

10

3495147020
ref: 10

BRACKET,COMBINATION METER

€ 23.50

11

3495345020
ref: 11

PLATE,METER,UNDER

€ 20.00

12

3495645020
ref: 12

CUSHION,METER (A)

€ 3.00

13

3495545020
ref: 13

CUSHION,METER (B)

€ 2.50

14

0832221048
ref: 14

WASHER

€ 2.00

15

0831311057
ref: 15

NUT

€ 1.50

16

3418345100
ref: 16

SCREW

€ 2.00

17

3645045101
ref: 17

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

18

3645245100
ref: 18

CASE,GEAR INDICATOR

€ 14.50

19

3645445100
ref: 19

COVER,LWR

€ 7.00

20

3645645100
ref: 20

SCREW,GEAR INDICATOR

€ 2.00

21

0947112071
ref: 21

BULB(14V1.12W)

€ 5.00

22

3645745100
ref: 22

SCREW

€ 2.00

23

3638245100
ref: 23

CASE,PILOT BULB

€ 10.00

24

3649247020
ref: 24

SCREW

€ 1.50

25

3496145021
ref: 25

COVER,UNDER

€ 99.00

26

0911108040
ref: 26

BOLT

€ 4.00

27-1

3495631000
ref: 27-1
MODEL T

CUSHION,METER

€ 4.50

27-2

3495631001
ref: 27-2
MODEL X

CUSHION,METER BRACKET

€ 4.50

28

0832221108
ref: 28

WASHER

€ 2.50

29

0916008002
ref: 29

WASHER (8.5X29X1.6)

€ 2.00

30

0832121088
ref: 30

LOCK WASHER

€ 2.00

31

0831012088
ref: 31

NUT

€ 2.00

32

3491045122
ref: 32
FROM 34910-45121

CABLE ASSEMBLY,SPEEDOMETER

€ 24.00

33

3493845100
ref: 33

CLAMP,SPEEDOMETER CABLE

€ 14.50

34

0832221068
ref: 34

WASHER

€ 2.00

35

0110706168
ref: 35

BOLT, UPPER

€ 3.00

36

3494049013
ref: 36

CABLE ASSEMBLY,TACHOMETER

€ 36.50

37

3493749000
ref: 37

SEAL, CABLE END

€ 7.00
