FUEL TANK (MODEL X)

GS1000G 1980 (T) GENERAL EXPORT (E01)

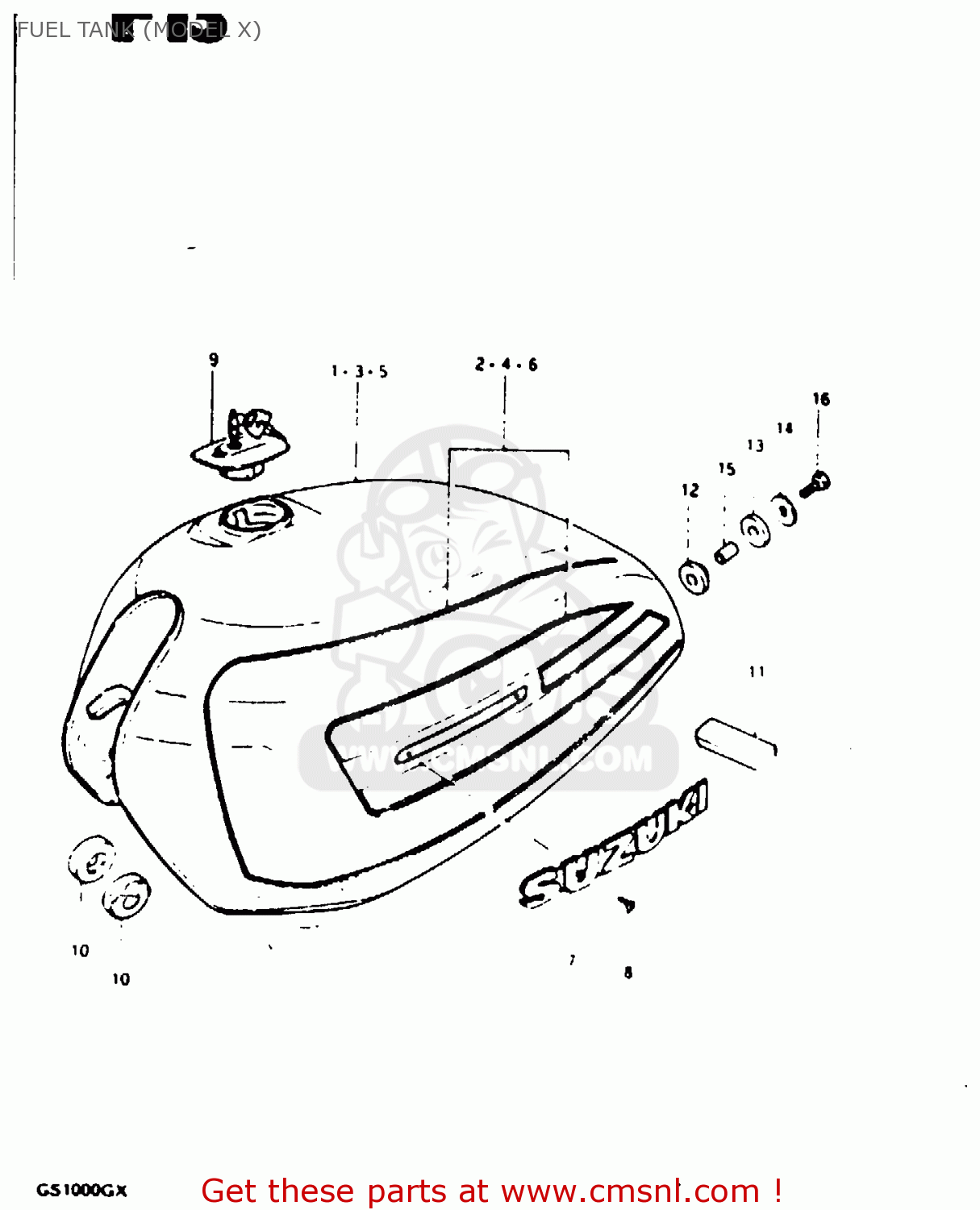

Fuel tank (model x) diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

FUEL TANK (MODEL X) GS1000G 1980 (T) GENERAL EXPORT (E01)
FUEL TANK (MODEL X) GS1000G 1980 (T) GENERAL EXPORT (E01)
FUEL TANK (MODEL X) GS1000G 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
441004518008E
ref: 1
TANK, FUEL (BLACK)
€ 638.50
2
681104518076W
ref: 2
TAPE SET
€ 0.00
3
441004518000J
ref: 3
TANK, FUEL (RED)
€ 638.50
4
681104518076W
ref: 4
TAPE SET
€ 0.00
5
441004518005H
ref: 5
TANK, FUEL (BLUE)
€ 638.50
6
681104518078Y
ref: 6
TAPE SET
€ 0.00
7
6811145010
ref: 7
EMBLEM,FUEL TANK
6811145010
€ 26.00
8
0213203065
ref: 8
SCREW 3X6
0213203065
€ 2.00
9
4420049703
ref: 9
CAP SET,FUEL TANK
€ 121.00
10
0932910007
ref: 10
CUSHION
0932910007
€ 3.00
11
0932901005
ref: 11
CUSHION
0932901005
€ 11.50
12
0932012010
ref: 12
CUSHION
0932012010
€ 3.00
13
0932012023
ref: 13
CUSHION
0932012023
€ 2.50
14
0916008002
ref: 14
WASHER (8.5X29X1.6)
0916008002
€ 2.00
15
0918008067
ref: 15
SPACER(8.5X12X19)
0918008067
€ 2.50
16
0110708308
ref: 16
BOLT (8X30)
0110708308
€ 2.50
