OPTIONAL

GS1000G 1980 (T) GENERAL EXPORT (E01)

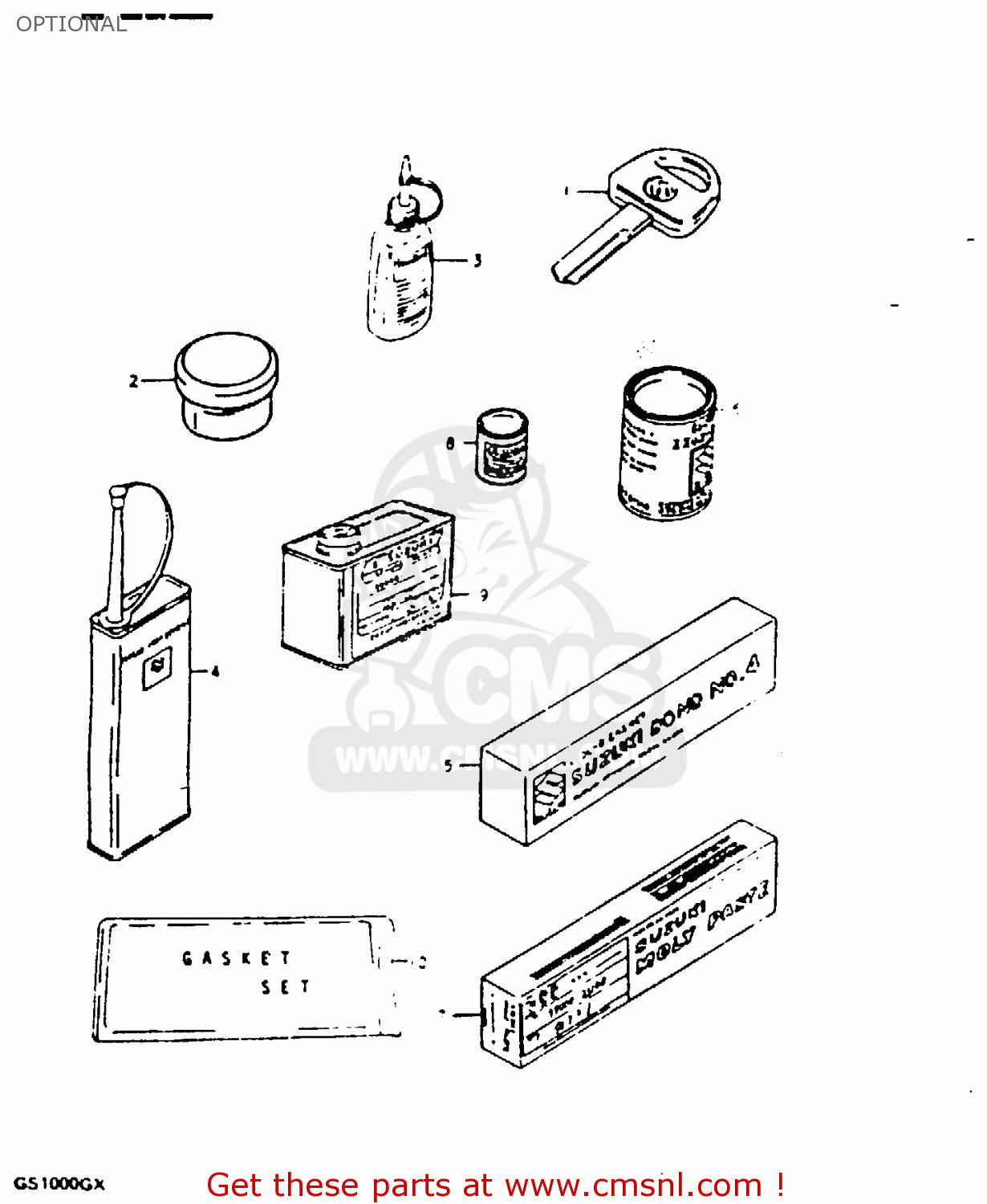

Optional diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

OPTIONAL GS1000G 1980 (T) GENERAL EXPORT (E01)

OPTIONAL GS1000G 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3714647010
ref: 1

KEY,BLANK

€ 15.00

2

9900025110
ref: 2
NET:20G

GREASE,PBC FOR BRK PAD 20G

€ 44.00

3-1

9900032020
ref: 3-1
NET:50G, 1333B

THREAD LOCK(1333B RED 50G)

€ 29.00

3-2

9900032030
ref: 3-2
NET:50G, 1303B

THREAD LOCK NO.1303B PURPL 50G

€ 40.00

3-3

9900032050
ref: 3-3
NET:50G, 1342

THREAD LOCK NO.1342

€ 20.00

3-4

9900032090
ref: 3-4
NET:50G, 1332B

THREAD LOCK SUPER (1332B)

€ 40.00

4

9900032040
ref: 4
NET:200G, 1401

THREAD LOCK NO.1401 CLEAR 200G

€ 92.50

5

9900031030
ref: 5
NET:200G

BOND 1104

€ 92.50

6

9900025030
ref: 6
NET:150G

GREASE(C)EP2 LITHIUM 150G

€ 8.00

7

9900025140
ref: 7
NET:50G

SUZUKI MOLY PASTE

€ 12.00

8-1

9900010109019
ref: 8-1

PAINT,BLACK

€ 16.00

8-2

9900010109291
ref: 8-2

PAINT,BLACK

€ 9.00

8-3

990001020908E
ref: 8-3
NET:90G

PAINT (PEARL BLACK)

€ 0.00

8-4

990001020905H
ref: 8-4

PAINT (CANDAY FLORIDA BLUE)

€ 16.00

8-5

9900010209712
ref: 8-5
MODEL X

PAINT (CANDY GYPSY RED)

€ 39.00

9-1

9900010105019
ref: 9-1

PAINT (BLACK)

€ 9.00

9-2

9900010105291
ref: 9-2

PAINT (BLACK SEMI-GLOSS)

€ 9.00

9-3

990001020508E
ref: 9-3
NET:500G

PAINT (PEARL BLACK)

€ 0.00

9-4

990001020505H
ref: 9-4

PAINT (CANDY FLORIDA BLUE)

€ 85.50

9-5

9900010205712
ref: 9-5
MODEL X

PAINT (CANDY GYPSY RED)

€ 0.00

10

1140049851
ref: 10

GASKET SET (MCA)

€ 144.50
