STARTING MOTOR

GS1000G 1980 (T) GENERAL EXPORT (E01)

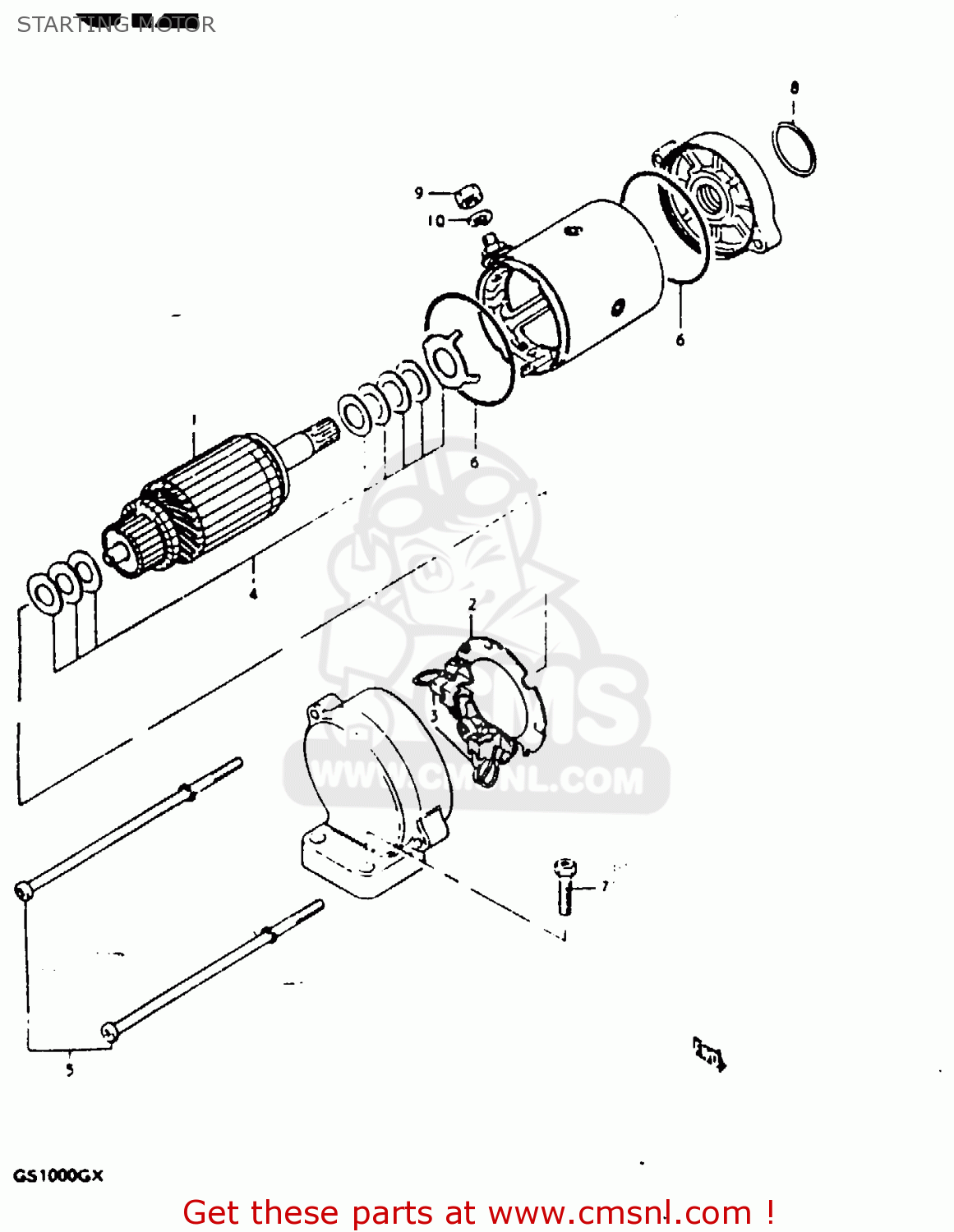

Starting motor diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3110045040
ref: 0
MITSUBA

MOTOR ASSEMBLY,STARTING

€ 873.50

3131131040
ref: 1

ARMATURE

€ 150.50

3117331040
ref: 2

HOLDER ASSY

€ 25.50

3113131040
ref: 3

BRUSH SET

€ 17.00

3136131040
ref: 4

SHIM SET

€ 22.50

3128131040
ref: 5

BOLT,STARTING MOTOR HOUSING

€ 12.50

3126431040
ref: 6

O RING

€ 8.50

0912806024
ref: 7

SCREW (6X25)

€ 2.50

0928024001
ref: 8

O RING(D:2,ID:24.5)

€ 2.00

0831022068
ref: 9

NUT 6MM

€ 2.50

0832121068
ref: 10

LOCK WASHER

€ 2.50
