REAR MASTER CYLINDER

GS1000G 1980 (T) GENERAL EXPORT (E01)

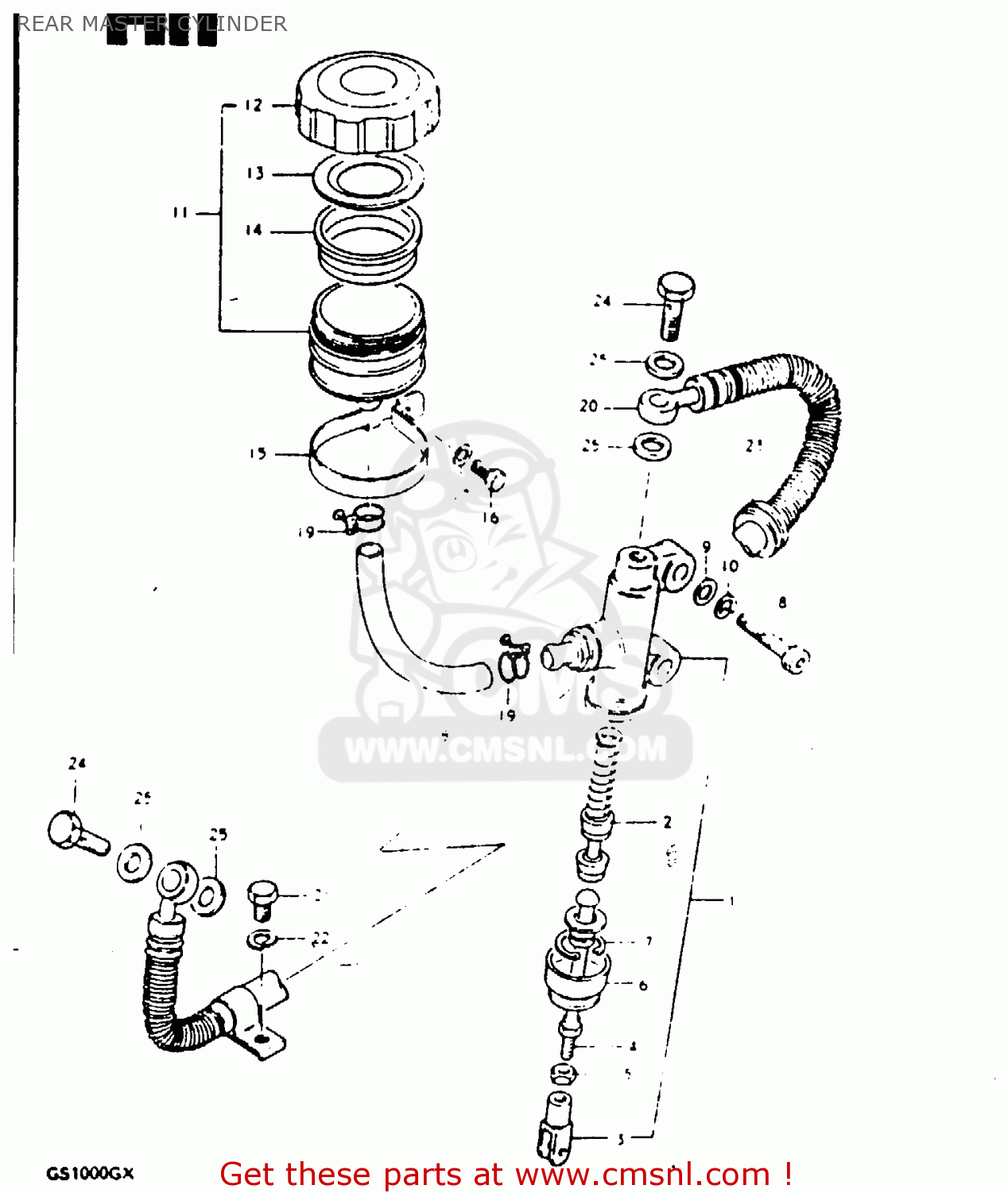

Rear master cylinder diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

REAR MASTER CYLINDER GS1000G 1980 (T) GENERAL EXPORT (E01)

REAR MASTER CYLINDER GS1000G 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

6960047001
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045810
ref: 2

PISTON/CUP SET

€ 53.00

3

6969245001
ref: 3

YOKE

€ 11.00

4

6967045000
ref: 4

ROD,PUSH

€ 18.50

5

0831012088
ref: 5

NUT

€ 2.00

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0910608013
ref: 8

BOLT

€ 3.00

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832131088
ref: 10

WASHER,LOCK,8.

€ 2.00

11

6974047001
ref: 11

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966933621
ref: 12

CAP

€ 35.00

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15

0940251601
ref: 15

CLAMP

€ 6.50

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

6973147000
ref: 18

HOSE,RESERVOIR TANK

€ 34.00

19

0940016301
ref: 19

CLAMP

€ 4.50

20

6948045101
ref: 20

HOSE,REAR BRAKE

€ 75.50

21

0110706108
ref: 21

BOLT

€ 2.00

22

0832121068
ref: 22

LOCK WASHER

€ 2.50

23

0930814007
ref: 23

GROMMET

€ 4.00

24

0936010007
ref: 24

BOLT,UNION

€ 6.50

25

0916110005
ref: 25

WASHER

€ 2.00
