TURN SIGNAL LAMP (MODEL T)

GS1000G 1980 (T) GENERAL EXPORT (E01)

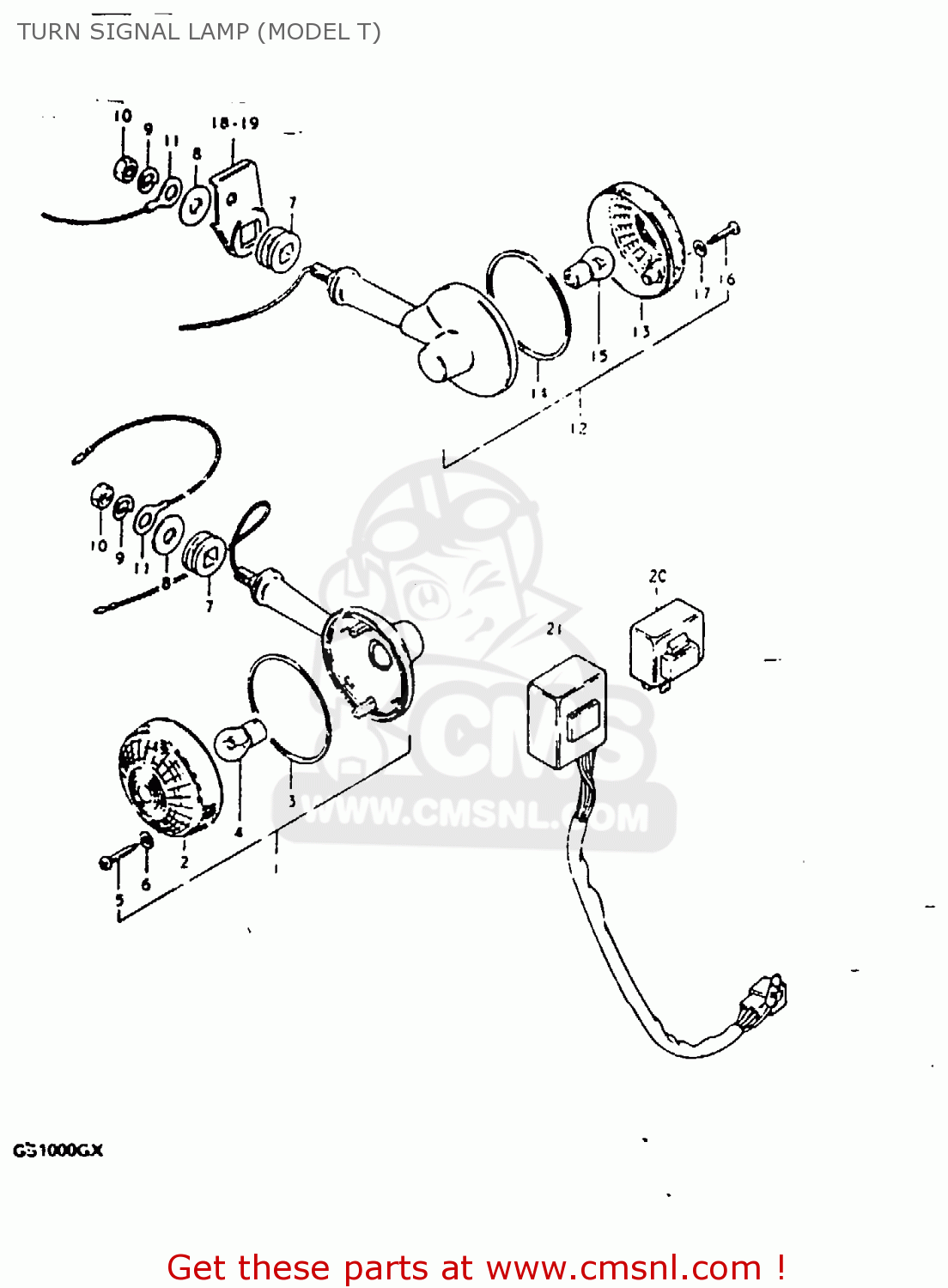

Turn signal lamp (model t) diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (MODEL T) GS1000G 1980 (T) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (MODEL T) GS1000G 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3560149030
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 115.00

2

3561245010
ref: 2

LENS

€ 12.50

3

3561345010
ref: 3

GASKET (NAS)

€ 7.50

4

0947112006
ref: 4

BULB(12V23W,STANLEY,A4577A)

€ 4.00

5

3562549030
ref: 5

BOLT

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3569032200
ref: 7

CUSHION

€ 38.50

8

0916008001
ref: 8

WASHER

€ 2.00

9

0832121088
ref: 9

LOCK WASHER

€ 2.00

10

0831012088
ref: 10

NUT

€ 2.00

11

3685145100
ref: 11

LEAD WIRE,EARTH

€ 7.50

12

3560149030
ref: 12

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 115.00

13

3561245010
ref: 13

LENS

€ 12.50

14

3561345010
ref: 14

GASKET (NAS)

€ 7.50

15

0947112006
ref: 15

BULB(12V23W,STANLEY,A4577A)

€ 4.00

16

3562549030
ref: 16

BOLT

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

4158045000019
ref: 18

BRACKET,RR TURNSIGNAL LAMP,R

€ 12.00

19

4159045000019
ref: 19

BRACKET,RR TURNSIGNAL LAMP,L

€ 16.50

20

3861049231
ref: 20

RELAY ASSY,TURNSIGNAL

€ 71.00

21

3883049200
ref: 21

UNIT,TURN SIGNAL CONTROL

€ 269.50
