Buy Suzuki GS Parts Online


FRONT FENDER - HEADLAMP HOUSING

GS1000G 1980 (T) GENERAL EXPORT (E01)

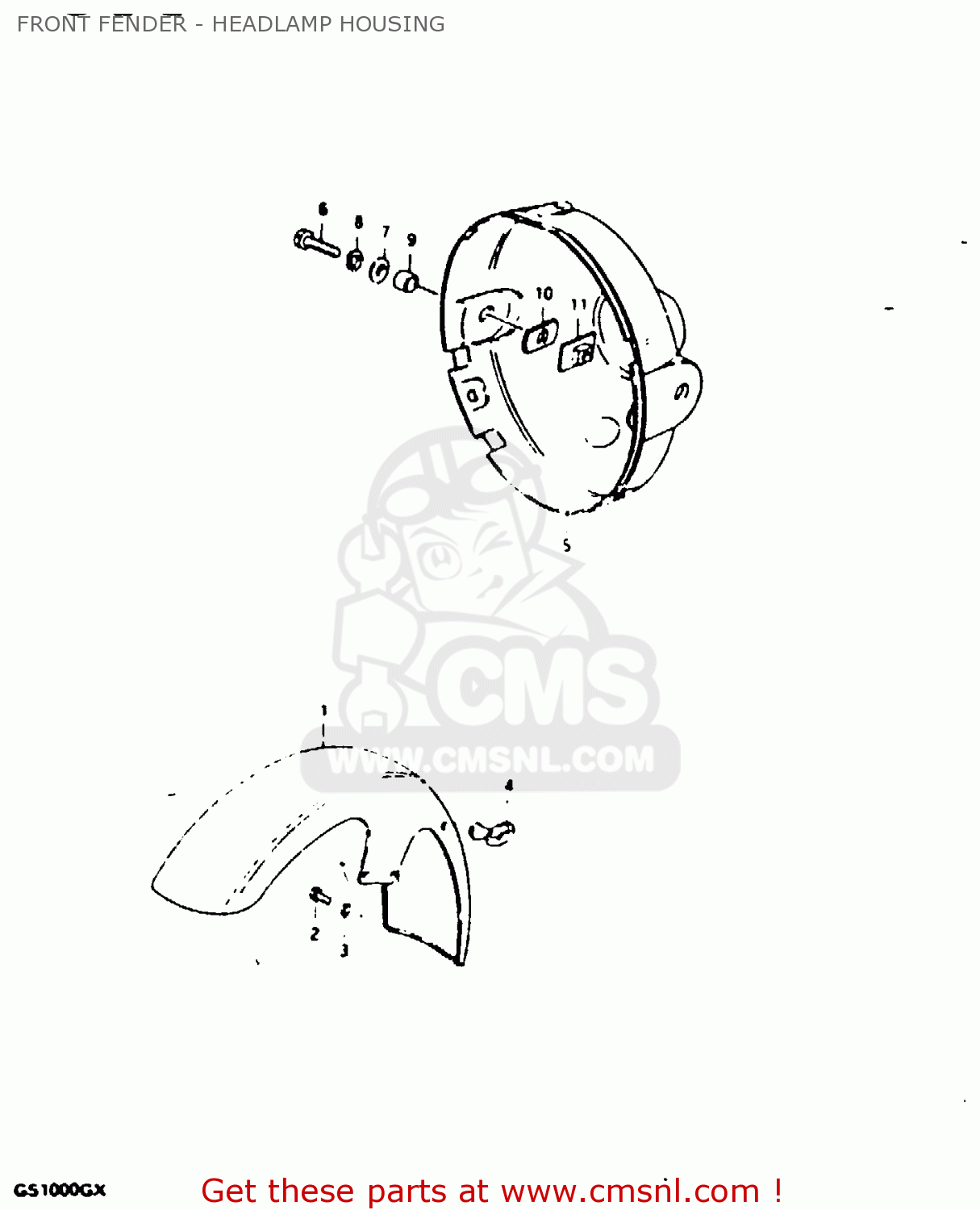

Front fender - headlamp housing diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

FRONT FENDER - HEADLAMP HOUSING GS1000G 1980 (T) GENERAL EXPORT (E01)
FRONT FENDER - HEADLAMP HOUSING GS1000G 1980 (T) GENERAL EXPORT (E01)
FRONT FENDER - HEADLAMP HOUSING GS1000G 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5311049011
ref: 1
FENDER,FR
5311049011
€ 367.50
2
0110708168
ref: 2
BOLT
€ 2.00
3
0832121088
ref: 3
LOCK WASHER
0832121088
€ 2.00
4
5862121203A
ref: 4
GUIDE,CABLE
€ 7.50
5-1
5181145002291
ref: 5-1
MODEL T
HOUSING,HEADLAMP(BLACK)
5181145002291
€ 69.50
5-2
518114500208E
ref: 5-2
MODEL X
HOUSING, HEADLAMP (BLACK)
€ 69.50
5-3
518114500200J
ref: 5-3
MODEL X
HOUSING, HEADLAMP (RED)
€ 69.50
5-4
518114500205H
ref: 5-4
MODEL X
HOUSING, HEADLAMP (BLUE)
€ 69.50
5-5
NOTUSED
ref: 5-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
0120408257
ref: 6
BOLT
0120408257
€ 2.00
7
0832211088
ref: 7
WASHER
0832211088
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
0918008030
ref: 9
SPACER (8.8X12X7)
0918008030
€ 3.50
10
0932912002
ref: 10
CUSHION
0932912002
€ 3.00
11
5186045000
ref: 11
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
