TURN SIGNAL LAMP (MODEL X : E21)

GS1000G 1980 (T) GENERAL EXPORT (E01)

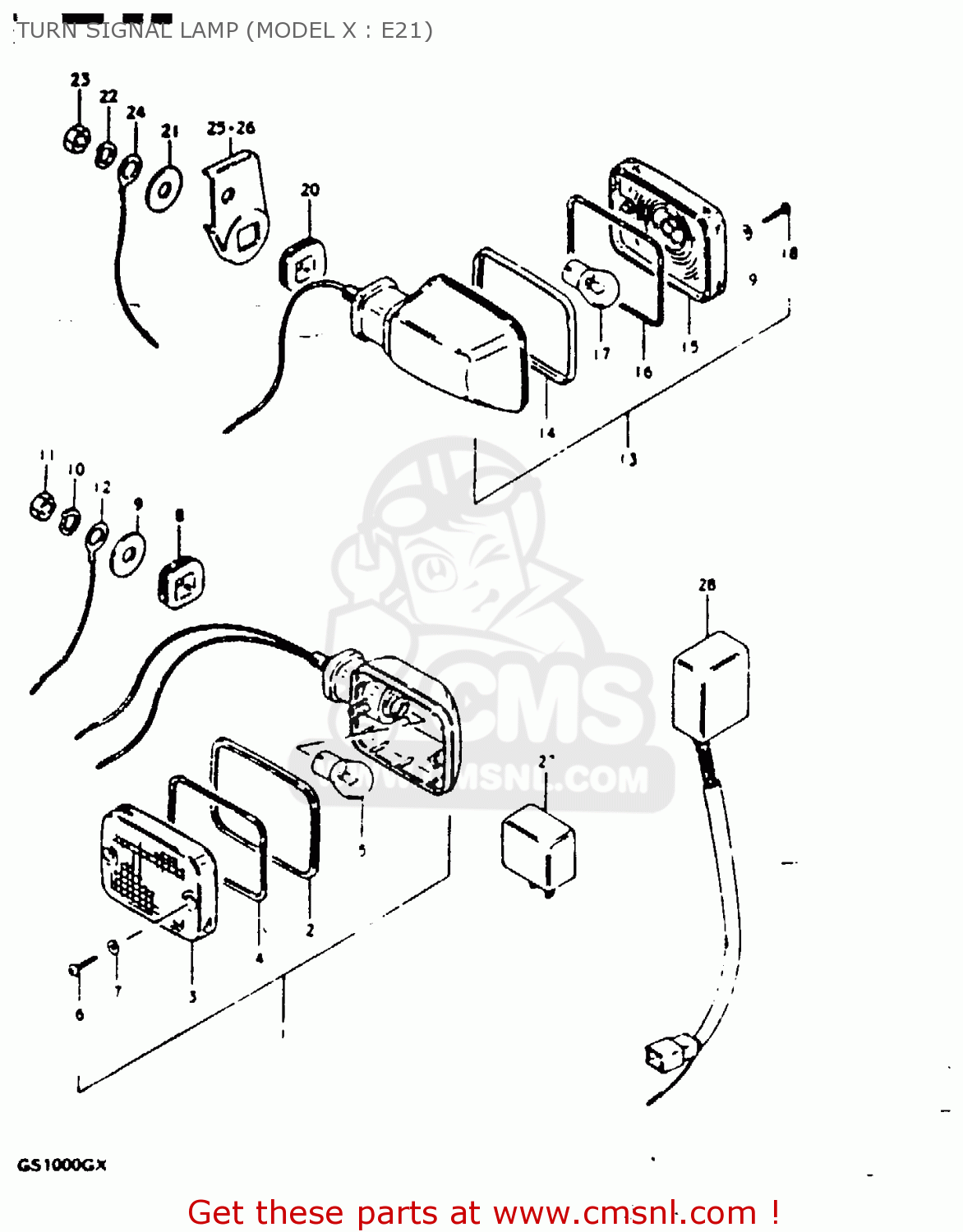

Turn signal lamp (model x : e21) diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (MODEL X : E21) GS1000G 1980 (T) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (MODEL X : E21) GS1000G 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3560144171
ref: 1

LAMP, FRONT TURN SIGNAL

€ 97.50

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249230
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112056
ref: 5

BULB 12V 21W

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0932015002
ref: 8

CUSHION

€ 4.50

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3666033000
ref: 12

LEAD WIRE,EARTH

€ 5.00

13

3560344171
ref: 13

LAMP, REAR TURN SIGNAL

€ 82.00

14

3561149230
ref: 14

RIM

€ 11.00

15

3565244181
ref: 15

LENS

€ 13.00

16

3561349230
ref: 16

GASKET (NAS)

€ 5.00

17

0947112056
ref: 17

BULB 12V 21W

€ 5.00

18

0321104208
ref: 18

SCREW

€ 1.50

19

3562743010
ref: 19

GASKET (NAS)

€ 2.00

20

0932015002
ref: 20

CUSHION

€ 4.50

21

0916010006
ref: 21

WASHER (10.5X30X2.3)

€ 2.50

22

0832121108
ref: 22

LOCK WASHER

€ 2.00

23

0831012108
ref: 23

NUT

€ 2.50

24

3666033000
ref: 24

LEAD WIRE,EARTH

€ 5.00

25

4158045000019
ref: 25
1

BRACKET,RR TURNSIGNAL LAMP,R

€ 12.00

26

4159045000019
ref: 26

BRACKET,RR TURNSIGNAL LAMP,L

€ 16.50

27

3861049231
ref: 27

RELAY ASSY,TURNSIGNAL

€ 71.00

28

3883049200
ref: 28

UNIT,TURN SIGNAL CONTROL

€ 269.50
