FRONT FORK (E2, E4, E17, E18, E21, E22, E24-26, E34, E39)

GS1000G 1980 (T) GENERAL EXPORT (E01)

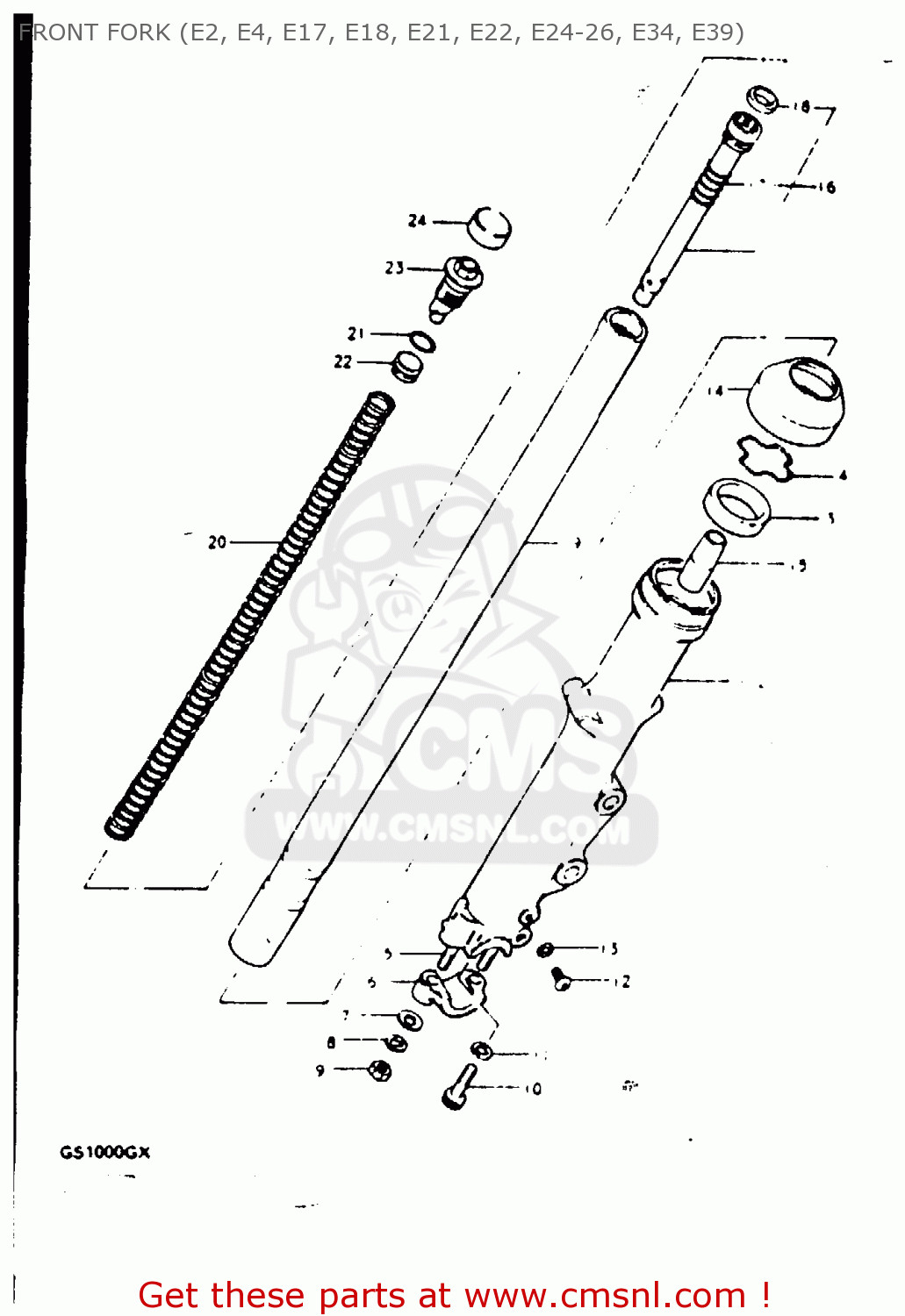

Front fork (e2, e4, e17, e18, e21, e22, e24-26, e34, e39) diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

FRONT FORK (E2, E4, E17, E18, E21, E22, E24-26, E34, E39) GS1000G 1980 (T) GENERAL EXPORT (E01)
FRONT FORK (E2, E4, E17, E18, E21, E22, E24-26, E34, E39) GS1000G 1980 (T) GENERAL EXPORT (E01)
FRONT FORK (E2, E4, E17, E18, E21, E22, E24-26, E34, E39) GS1000G 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5110345160
ref: 0
DAMPER ASSY, RH
€ 0.00
0
5110445160
ref: 0
DAMPER ASSY, LH
€ 221.50
1
5113045101
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 219.50
2
5114045101
ref: 2
TUBE,FORK,LEFT,OUTER
5114045101
€ 117.50
3
5115349000
ref: 3
OIL SEAL,FRONT FORK
5115349000
€ 16.50
4
5115640301
ref: 4
RING,STOPPER
5115640301
€ 4.50
5
0142108308
ref: 5
STUD BOLT
€ 2.00
6
5113249000
ref: 6
HOLDER,AXLE
5113249000
€ 30.00
7
0832221088
ref: 7
WASHER
0832221088
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
0914008005
ref: 9
NUT (8MM)
0914008005
€ 1.50
10
5114716510
ref: 10
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
11
5114841310
ref: 11
GASKET (NAS)
5114841310
€ 2.50
12
0211204088
ref: 12
SCREW
€ 1.50
13
5118303010
ref: 13
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
14
5117349002
ref: 14
SEAL,DUST
5117349002
€ 13.00
15
5119549071
ref: 15
PIECE,OIL LOCK
€ 12.00
16
5114645160
ref: 16
CYLINDER
5114645160
€ 43.50
17
5117749000
ref: 17
SPRING,REBOUND
5117749000
€ 7.50
18
5119649000
ref: 18
RING,PISTON
5119649000
€ 9.00
19
5111045160
ref: 19
INNER TUBE
5111045160
€ 217.50
20
5117145160
ref: 20
SPRING,FRONT FORK
€ 32.50
21
5111745110
ref: 21
O-RING
5111745110
€ 4.00
22
5117245110
ref: 22
PISTON,FREE
5117245110
€ 10.50
23
5135149200
ref: 23
CAP
5135149200
€ 59.00
24
5118945110
ref: 24
CAP
5118945110
€ 9.00
