REAR SWINGING ARM

GS1000G 1980 (T) GENERAL EXPORT (E01)

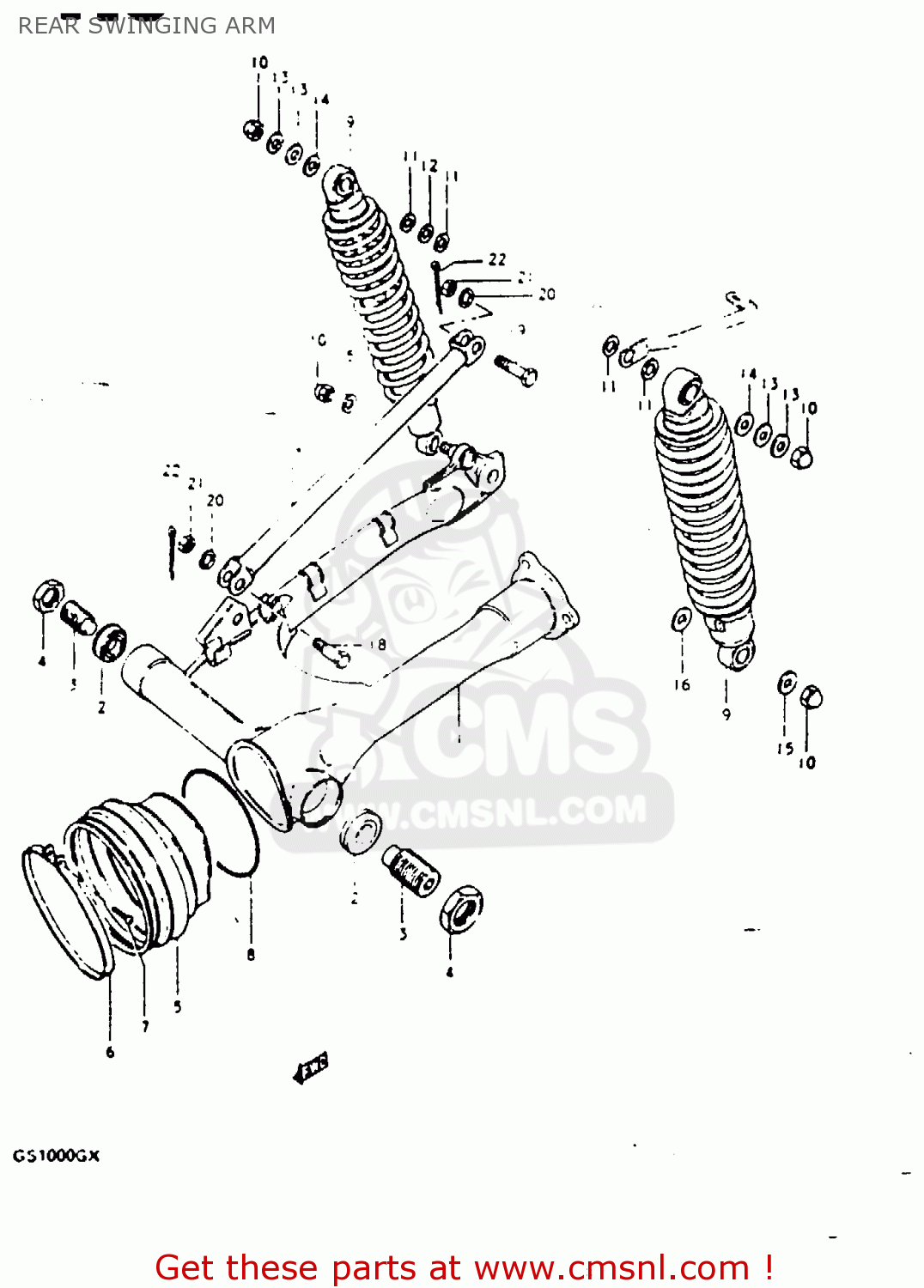

Rear swinging arm diagram GS1000G 1980 (T) GENERAL EXPORT (E01)

REAR SWINGING ARM GS1000G 1980 (T) GENERAL EXPORT (E01)

REAR SWINGING ARM GS1000G 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

6110045821019
ref: 1
BLACK

SWING ARM ASSEMBLY,REAR

€ 0.00

2

0926517012
ref: 2

BEARING(17X40X13.25)

€ 35.00

3

6121345101
ref: 3

BOLT,REAR SWING ARM PIVOT

€ 16.00

4-1

0914024009
ref: 4-1
MODEL T

NUT

€ 4.50

4-2

0914024007
ref: 4-2
MODEL X

NUT

€ 4.50

5

6137245102
ref: 5

BOOT,PROPELLER SHAFT

€ 23.00

6

0940200304
ref: 6

CLAMP

€ 5.00

7

0321104255
ref: 7

SCREW 4X25

€ 2.00

8

6137345100
ref: 8

SPRING,PROPELLER SHAFT

€ 9.00

9-1

NOTUSED
ref: 9-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9-2

6210045130
ref: 9-2
E2, E4, E17, E18, E2

SHOCK ABSORBER, REAR

€ 0.00

10

0831311108
ref: 10

NUT, LOWER LH

€ 2.50

11

0832211128
ref: 11
12.5*22*2.3

WASHER

€ 2.00

12

0916012012
ref: 12
12.5*24*3.2

WASHER (12.5X24X3.2)

€ 2.50

13

0916010001
ref: 13
10.5*24*2.3

WASHER

€ 2.00

14

0916010033
ref: 14
10.5*24*3.2

WASHER(10.5X24X3.2)

€ 2.00

15

0916010001
ref: 15
10.5*24*2.3

WASHER

€ 2.00

16

0832211128
ref: 16
12.5*22*2.3

WASHER

€ 2.00

17

6431045100019
ref: 17
BLACK

LINK,REAR TORQUE

€ 29.00

18

0911110020
ref: 18

BOLT

€ 0.00

19

0910110017
ref: 19

BOLT(10X39)

€ 5.00

20

0832211108
ref: 20

WASHER

€ 2.50

21

0831441108
ref: 21

NUT

€ 2.50

22

0411120208
ref: 22

PIN 20X20

€ 1.50
