CAM CHAIN
GS125ES 1985 (F) (E01 E02 E04 E15 E24)

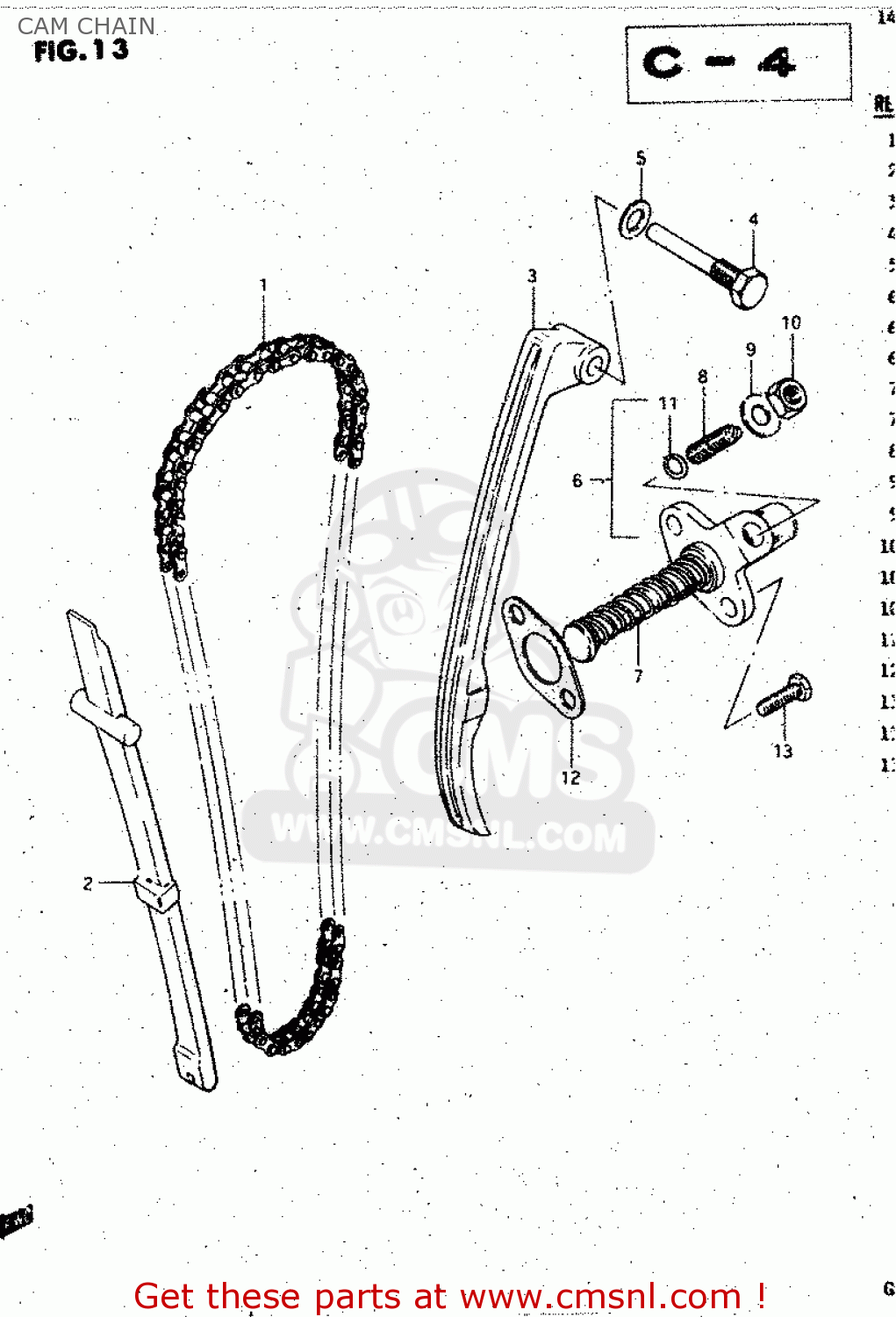

Cam chain diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)
CAM CHAIN GS125ES 1985 (F) (E01 E02 E04 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1276044A00
ref: 1
98LE
CHAIN,CAMSHAFT DRIVE
€ 54.00
2
1277105200
ref: 2
GUIDE,CAM CHAIN
€ 20.50
3
1281105220
ref: 3
ARROW LEFT12811-0520
TENSIONER,CAM CHAIN
€ 24.50
4
1281232410
ref: 4
BOLT,CAM CHAIN TENSIONER
€ 3.50
5
0916808008
ref: 5
GASKET 8.2X14X1 (NAS)
€ 1.00
6-1
1283032430
ref: 6-1
MODEL Z
ADJUSTER ASSEMBLY,TENSIONER
€ 48.00
6-2
1283032461
ref: 6-2
MODEL D/F/K/L/M
ADJUSTER ASSEMBLY,TENSIONER
€ 73.00
6-3
1283032463
ref: 6-3
MODEL R
ADJUSTER ASSY,TENSIONER
€ 73.00
7-1
0944011015
ref: 7-1
MODEL Z
SPRING
€ 1.50
7-2
0944011018
ref: 7-2
MODEL D/F/K/L/M/R
SPRING
€ 2.00
8
1283845001
ref: 8
SCREW
€ 6.00
9-1
0832211088
ref: 9-1
MODEL Z
WASHER
€ 2.00
9-2
0832211084
ref: 9-2
MODEL D/F/K/L/M
WASHER
€ 1.50
10-1
0831012088
ref: 10-1
MODEL Z
NUT
€ 2.00
10-2
0831012085
ref: 10-2
MODEL D/F/K/L/M
NUT ,8MM
€ 1.50
10-3
0831610083
ref: 10-3
MODEL R
NUT
€ 3.00
11
0928006005
ref: 11
O RING(D:1.9,ID:5.7)
€ 2.50
12
1283732410
ref: 12
GASKET,TENSIONER ADJUSTER (NAS)
€ 2.50
13-1
0110706207
ref: 13-1
MODEL Z
BOLT
€ 2.00
13-2
0110706205
ref: 13-2
MODEL D/F/K/L/M
BOLT
€ 2.00
13-3
0150006203
ref: 13-3
MODEL R
BOLT
€ 2.00
