KICK STARTER (GS125Z/D,UR E71)

GS125ES 1985 (F) (E01 E02 E04 E15 E24)

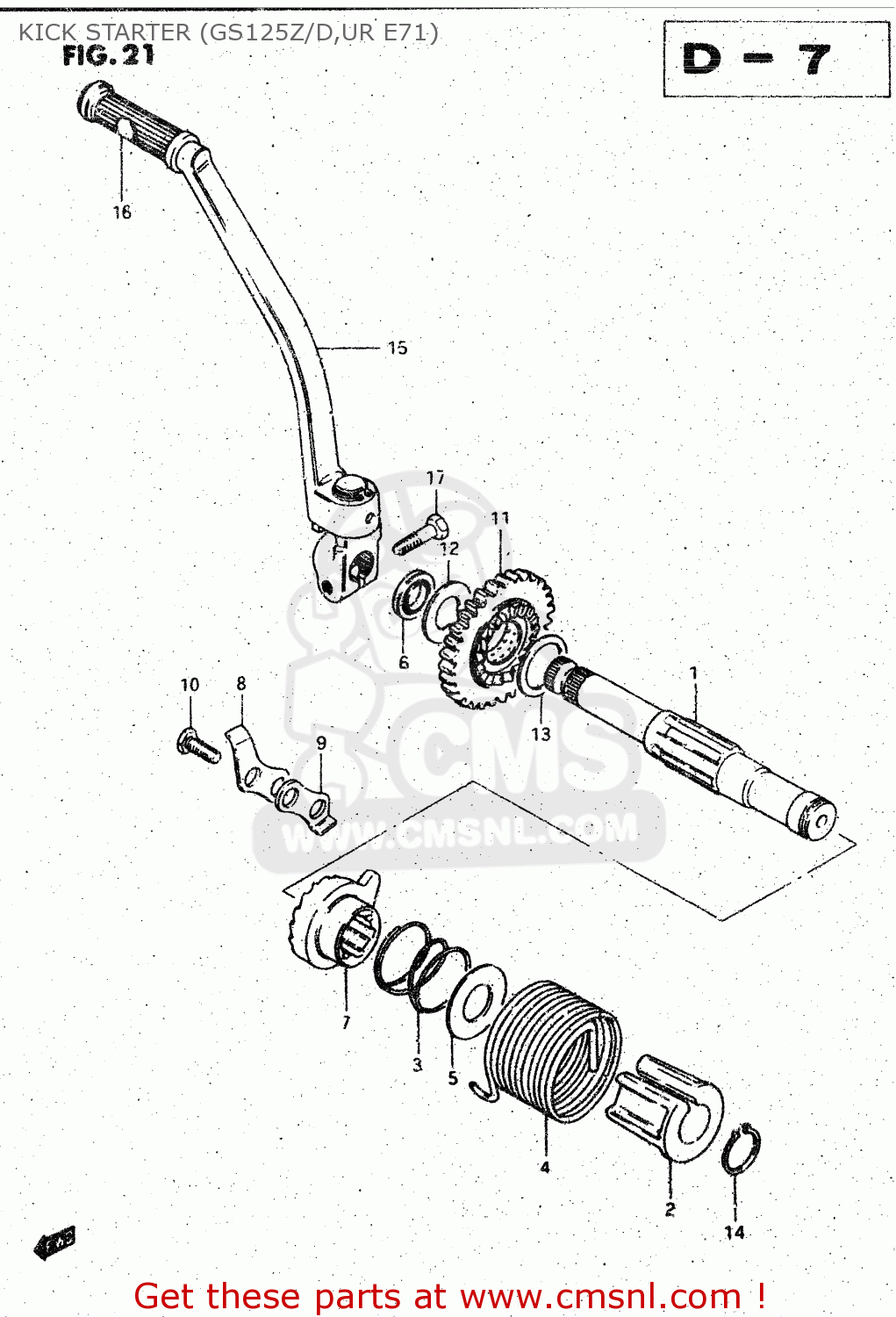

Kick starter (gs125z/d,ur e71) diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)

KICK STARTER (GS125Z/D,UR E71) GS125ES 1985 (F) (E01 E02 E04 E15 E24)
KICK STARTER (GS125Z/D,UR E71) GS125ES 1985 (F) (E01 E02 E04 E15 E24)
KICK STARTER (GS125Z/D,UR E71) GS125ES 1985 (F) (E01 E02 E04 E15 E24)
prices are in EUR
ref
part #
description
quantity
1
2621105202
ref: 1
SHAFT,KICK STARTER
2621105202
€ 46.00
2
2622105200
ref: 2
GUIDE,KICK STARTER SFT SPRING
2622105200
€ 4.50
3
0944032006
ref: 3
SPRING
0944032006
€ 1.50
4
0944845003
ref: 4
SPRING
0944845003
€ 4.50
5
0821117341
ref: 5
WASHER
0821117341
€ 2.00
6
0928516003
ref: 6
SEAL,OIL(16X24X5)
0928516003
€ 3.00
7
2623138201
ref: 7
STARTER,KICK
€ 25.50
8
2623238200
ref: 8
GUIDE,KICK STARTER
2623238200
€ 4.00
9
2623332400
ref: 9
STOPPER,KICK STARTER
2623332400
€ 3.00
10
0150008203
ref: 10
BOLT
0150008203
€ 2.00
11
2624005201
ref: 11
GEAR,KICK STARTER DRIVE
€ 54.00
12
0916016003
ref: 12
WASHER(16X30X1)
0916016003
€ 2.50
13
0821120261
ref: 13
WASHER
0821120261
€ 2.50
14
0938017001
ref: 14
CIRCLIP
0938017001
€ 2.00
15
2630005303
ref: 15
LEVER ASSY,KICK STARTER
€ 60.50
16
2635201000
ref: 16
RUBBER,KICK STARTER PEDAL
2635201000
€ 3.50
17
0150008253
ref: 17
BOLT
0150008253
€ 2.50
