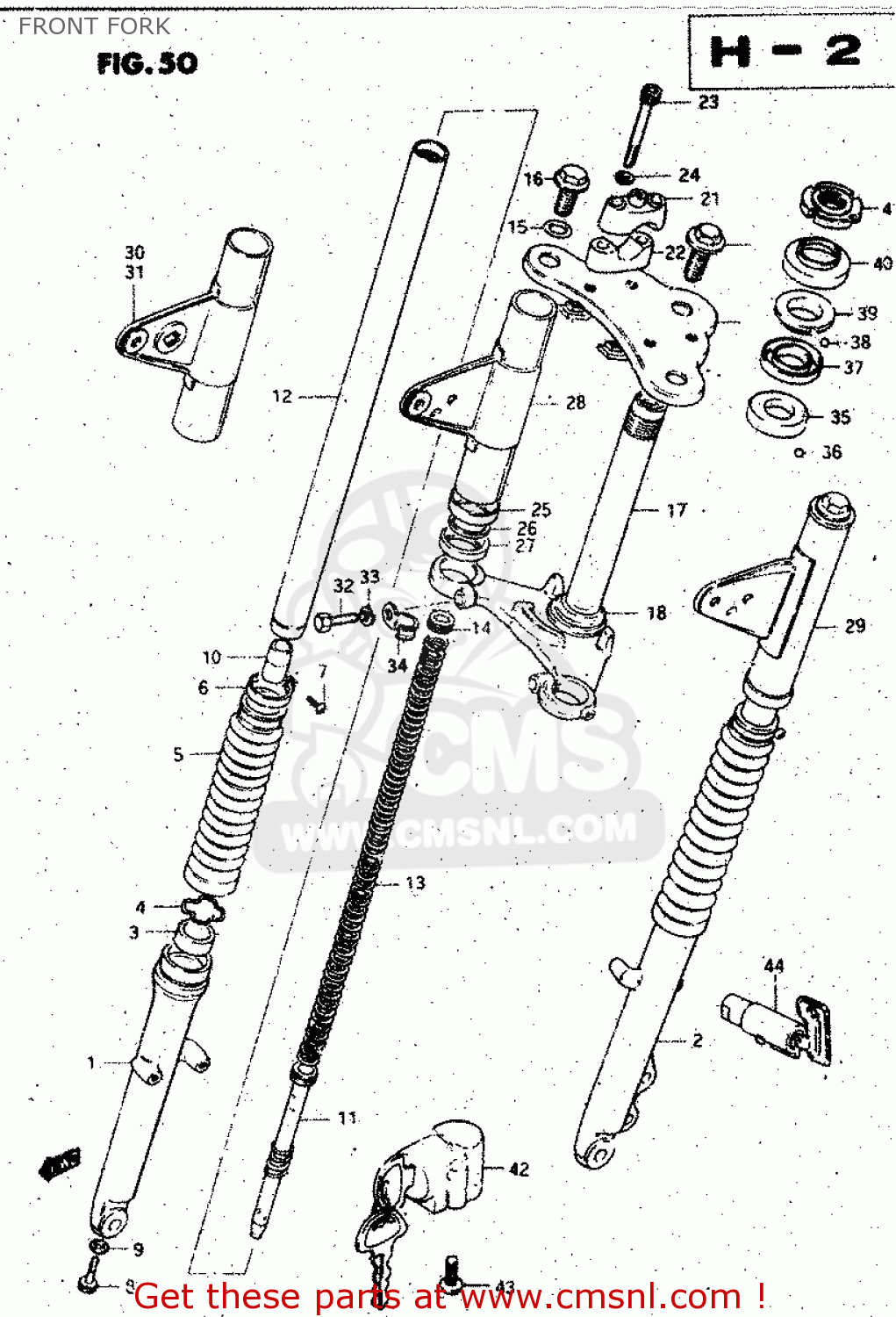

FRONT FORK

ref

part #

description

quantity

0

5110005330291
ref: 0

FRONT FORK ASSY (BLACK)

€ 0.00

0

5110005340291
ref: 0
E15

FRONT FORK ASSY (BLACK)

€ 0.00

0

5110005350291
ref: 0
E18,E30,E34,E39 MODE

FRONT FORK ASSY (BLACK)

€ 900.00

1

5113036500
ref: 1

TUBE,OUTER,R

€ 88.50

2

5114036500
ref: 2

TUBE,OUTER,L

€ 0.00

3

5115329400
ref: 3

OIL SEAL,FRONT FORK

€ 11.00

4

5115639260
ref: 4

RING,SNAP

€ 2.50

5

5157129500
ref: 5

BOOT

€ 19.00

6

5157529500
ref: 6

BAND,BOOT

€ 6.50

7-1

0211204167
ref: 7-1
MODEL Z/D/F/K/L

SCREW

€ 1.00

7-2

0211204163
ref: 7-2
MODEL M/R

SCREW 4X16

€ 1.00

8

5114716310
ref: 8

BOLT

€ 0.00

9

5114841310
ref: 9

GASKET (NAS)

€ 2.50

10

5119536220
ref: 10

PIECE,OIL LOCK

€ 11.50

11

5114605330
ref: 11

FRONT FORK DAMPER TUBE

€ 20.00

12-1

5111005330
ref: 12-1
MODEL Z/D/F/K/L

TUBE, INNER

€ 119.00

12-2

5111039680
ref: 12-2
MODEL M/R

TUBE,FORK INNER

€ 119.00

13

5117105330
ref: 13

SPRING

€ 25.50

14

5135336220
ref: 14

NUT

€ 7.00

15-1

5111736220
ref: 15-1
MODEL Z/D/F/K/L

O RING

€ 2.00

15-2

0928022001
ref: 15-2
MODEL M/R

O RING(D:2.4,ID:21.8)

€ 2.00

16-1

5135139220
ref: 16-1
MODEL Z/D/F/K/L

CAP

€ 12.00

16-2

5135139221
ref: 16-2
MODEL M/R

CAP,FORK

€ 12.00

17-1

5141036230
ref: 17-1
MODEL Z/D

STEM, STEERING

€ 135.50

17-2

5141036231
ref: 17-2
MODEL F/K/L/M/R

STEM,STEERING

€ 135.50

17-3

5141005340
ref: 17-3
MODEL Z/D E15

STEM, STEERING

€ 123.00

17-4

5141005341
ref: 17-4
MODEL F E15

STEM,STEERING

€ 123.00

18

5162133001
ref: 18

RACE,STEERING OUTER LWR

€ 10.00

19

5131005330291
ref: 19

HEAD,STEERING STEM

€ 64.50

20

5135239220
ref: 20
ARROW LEFT51352-3914

BOLT

€ 4.00

21

5621129900291
ref: 21

HOLDER,HANDLEBAR(BLACK)

€ 9.00

22

5621127200291
ref: 22

HOLDER,HANDLE UPR

€ 13.50

23

0711008556
ref: 23

BOLT

€ 3.50

24-1

0832121088
ref: 24-1
MODEL Z/D/F/K/L

LOCK WASHER

€ 2.00

24-2

0832101087
ref: 24-2
MODEL M/R

WASHER,LOCK

€ 2.00

25

5155325210
ref: 25

CUSHION,HEAD LAMP BRACKET

€ 6.50

26

5155110200
ref: 26

GUIDE,BRACKET

€ 5.50

27

5155539640
ref: 27

SPACER

€ 3.00

28

5153005330291
ref: 28

BRACKET,HEADLAMP,R

€ 33.00

29

5154005330291
ref: 29

BRACKET,HEADLAMP,L

€ 31.50

30-1

5153005340291
ref: 30-1
E15,E18,E30,E34,E39

BRACKET, HEADLAMP RH

€ 36.50

30-2

5153005341291
ref: 30-2
MODEL F E15

BRACKET,HEADLAMP,R

€ 36.50

31-1

5154005340291
ref: 31-1
E15,E18,E30,E34,E39

BRACKET, HEADLAMP LH

€ 36.50

31-2

5154005341291
ref: 31-2
MODEL F E15

BRACKET,HEADLAMP,L

€ 36.50

32

5145128012
ref: 32

BOLT,FR FORK LWR(12X33)

€ 11.50

33-1

0832121128
ref: 33-1
MODEL Z/D/F/K/L

WASHER,LOCK 12

€ 2.50

33-2

0832101127
ref: 33-2
MODEL M/R

WASHER,LOCK

€ 2.50

34

5145536010
ref: 34

CLIP

€ 6.50

35

5161133002
ref: 35

LACE,STEERING INNER LWR

€ 7.00

36

0611108003
ref: 36

BALL

€ 1.50

37

5161120002
ref: 37

RACE,STEERING INNER UPR

€ 5.50

38

0611106003
ref: 38

BALL

€ 1.50

39

5162128000
ref: 39

RACE,STEERING OUTER UPR

€ 7.00

40

5164325001
ref: 40

DUST SEAL,STEERING UPR

€ 4.50

41

5163128000
ref: 41

NUT,STEERING STEM(25X44X10)

€ 12.50

42

5191025311
ref: 42

LOCK ASSY,STEERING

€ 22.50

43-1

0211235127
ref: 43-1
MODEL Z/D/F/K/L/M

SCREW

€ 1.00

43-2

0211235123
ref: 43-2
MODEL R

SCREW

€ 1.50

44

5190030901
ref: 44
E15

LOCK ASSY,STEERING(NEIMAN)

€ 168.50
