GS125ES 1985 (F) (E01 E02 E04 E15 E24)

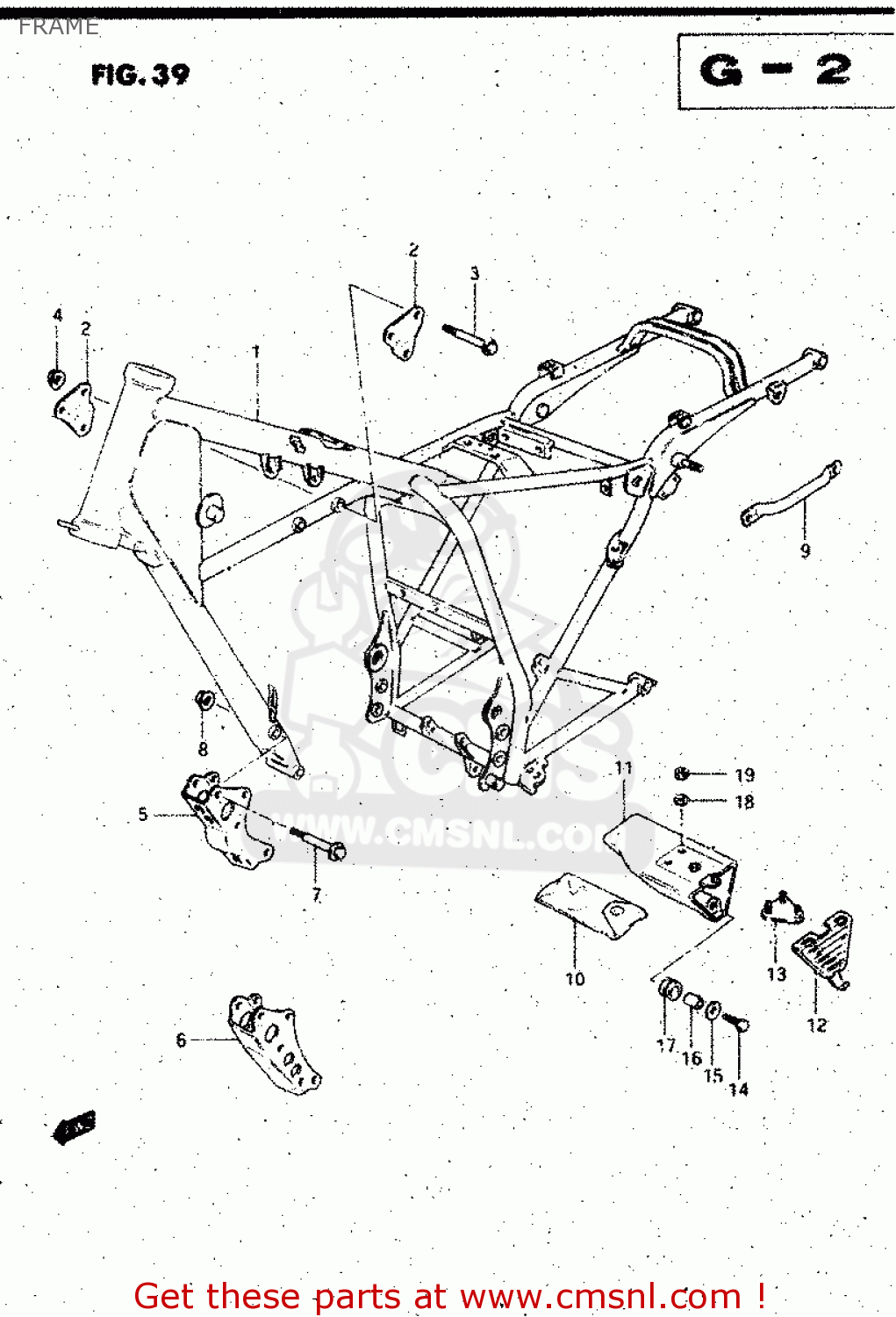

Frame diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)
FRAME GS125ES 1985 (F) (E01 E02 E04 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110005340019
ref: 1-1
MODEL Z/D
FRAME (BLACK)
€ 844.50
1-2
4110005341019
ref: 1-2
MODEL F
FRAME (BLACK)
€ 844.50
1-3
4110005342019
ref: 1-3
MODEL K/L/M
FRAME (BLACK)
€ 844.50
1-4
41100053B0019
ref: 1-4
MODEL R
FRAME(BLACK)
€ 844.50
1-5
4110005351019
ref: 1-5
E15 ~F.NO.114708,E17
FRAME (BLACK)
€ 0.00
1-6
4110005361019
ref: 1-6
MODEL Z/D E18
FRAME (BLACK)
€ 0.00
1-7
4110005362019
ref: 1-7
MODEL K/M E2
FRAME (BLACK)
€ 0.00
1-8
4110005364019
ref: 1-8
MODEL R E2
FRAME (BLACK)
€ 0.00
1-9
4110005371019
ref: 1-9
E15 F.NO.114709~
FRAME (BLACK)
€ 0.00
2
4199105300
ref: 2
PLATE,ENGINE MOUNTING
€ 3.50
3-1
0151708508
ref: 3-1
MODEL Z/D/F
BOLT
€ 3.50
3-2
0910308081
ref: 3-2
MODEL K/L/M/R
BOLT(8X50)
€ 3.50
4
0831931087
ref: 4
NUT
€ 2.50
5
4199205300
ref: 5
BRACKET,ENGINE MOUNTING LWR
€ 9.00
6
4199205310
ref: 6
GS125Z/D E1,E2 GS125
PLATE, LOWER
€ 0.00
7-1
0151708658
ref: 7-1
MODEL Z/D/F/K/L/M
BOLT 8X65
€ 3.00
7-2
0155008653
ref: 7-2
MODEL R
BOLT
€ 3.00
8
0831931087
ref: 8
NUT
€ 2.50
9
4161105310
ref: 9
GRIP,STAND
€ 106.00
10-1
0980000245
ref: 10-1
MODEL Z/D/F/K/L/M
TOOL SET
€ 33.00
10-2
0980021021
ref: 10-2
MODEL R
TOOL ASSY
€ 33.00
11
4743105300
ref: 11
BOX,TOOL
€ 15.00
12
4743205300
ref: 12
CAP,TOOL BOX
€ 2.50
13-1
4744005300
ref: 13-1
MODEL Z
PLATE,TOOL HOLDER
€ 3.00
13-2
4744005301
ref: 13-2
MODEL D/F/K/L/M/R
PLATE,TOOL HOLDER
€ 3.00
14-1
0110706167
ref: 14-1
MODEL Z/D/F
BOLT
€ 3.00
14-2
0911606008
ref: 14-2
MODEL K/L/M/R
BOLT 6X16
€ 2.50
15
0916006027
ref: 15
MODEL Z/D/F
WASHER (6.5X20X1.2)
€ 2.00
16
0918006038
ref: 16
SPACER(6.1X9X7.5)
€ 2.00
17-1
0932008007
ref: 17-1
MODEL Z/D/F/K/L/M
CUSHION
€ 4.00
17-2
0932008021
ref: 17-2
MODEL R
CUSHION
€ 4.00
18
0832221067
ref: 18
WASHER
€ 2.00
19-1
0831011067
ref: 19-1
MODEL Z/D/F/K/L/M
NUT 6MM
€ 2.50
19-2
0831610063
ref: 19-2
MODEL R
NUT
€ 2.50
