OIL PUMP
GS125ES 1985 (F) (E01 E02 E04 E15 E24)

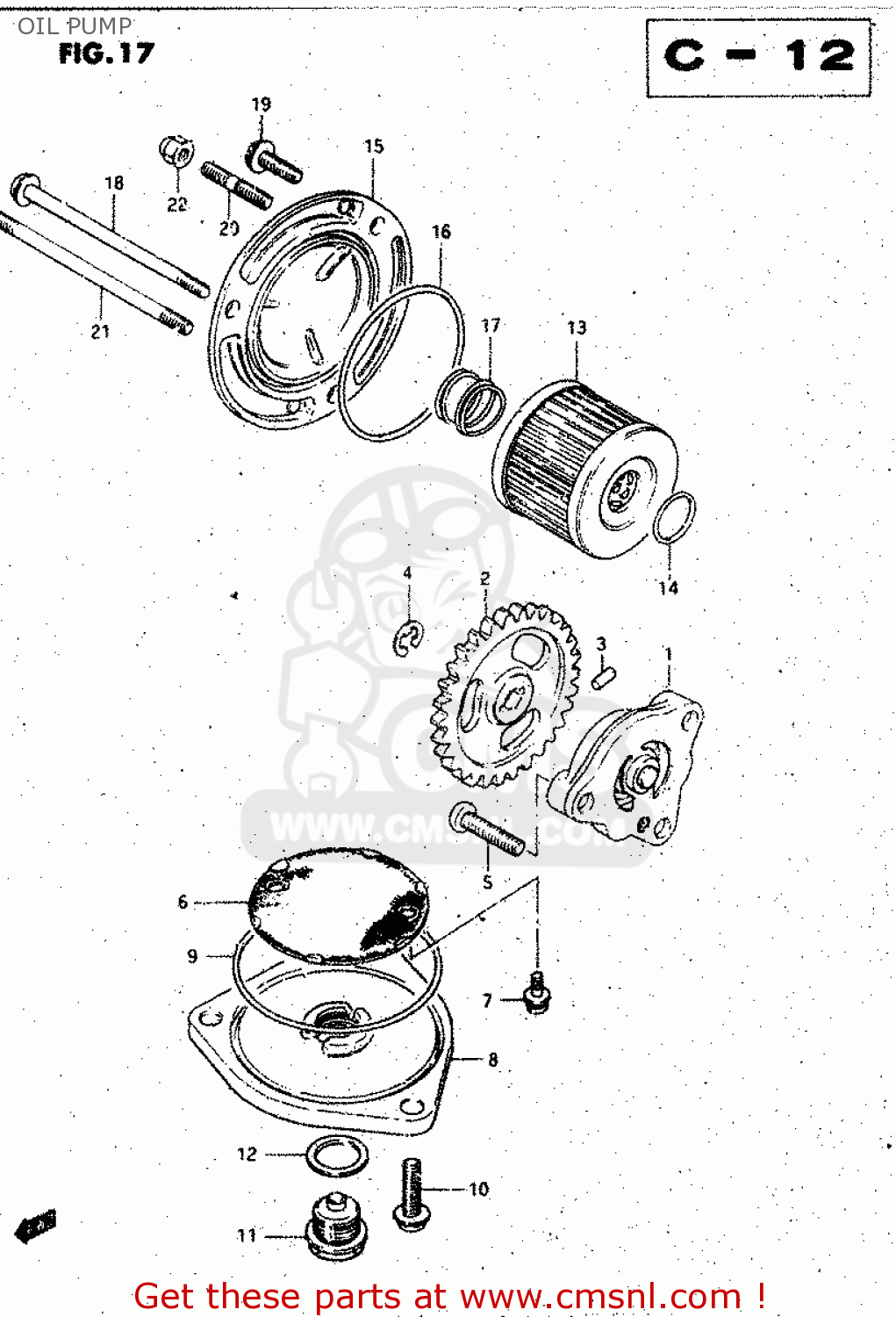

Oil pump diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)
OIL PUMP GS125ES 1985 (F) (E01 E02 E04 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1640005201
ref: 1
ARROW LEFT16400-0520
PUMP ASSY,ENGINE OIL
€ 93.00
2
1633105200
ref: 2
GEAR,ENG OIL PUMP DRIVEN(NT:30
€ 21.00
3
0926102008
ref: 3
PIN(2.5X11.8)
€ 1.50
4
0833211063
ref: 4
E.RING
€ 2.00
5
0211206253
ref: 5
SCREW
€ 1.50
6
1652005202
ref: 6
STRAINER,ENGINE OIL
€ 4.50
7
0211275123
ref: 7
SCREW
€ 2.50
8
1652305200
ref: 8
CAP,OIL STRAINER
€ 9.00
9
0928060005
ref: 9
O RING(D:2.4,ID:60.5)
€ 3.00
10
0154706203
ref: 10
SCREW
€ 2.50
11
0924714001
ref: 11
PLUG
€ 5.00
12
0916814002
ref: 12
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
13
1651005240
ref: 13
FILTER ASSY,ENGINE OIL
€ 8.50
14
0928013004
ref: 14
O RING(D:1.9,ID:13)
€ 2.50
15-1
1651205210
ref: 15-1
ARROW RIGHT16512-052
CAP,OIL FILTER
€ 15.00
15-2
1651205212
ref: 15-2
CAP,OIL FILTER
€ 15.00
16
0928054001
ref: 16
O RING(D:2.4,ID:52.6)
€ 4.00
17
0944018002
ref: 17
SPRING
€ 1.50
18
0154706907
ref: 18
BOLT
€ 3.00
19
0154706203
ref: 19
SCREW
€ 2.50
20
0142106128
ref: 20
STUD 6X12
€ 1.50
21
0142106858
ref: 21
STUD BOLT, 6X8
€ 2.50
22
0831310067
ref: 22
NUT
€ 2.00
