FRAME COVER (MODEL F/K/L)

GS125ES 1985 (F) (E01 E02 E04 E15 E24)

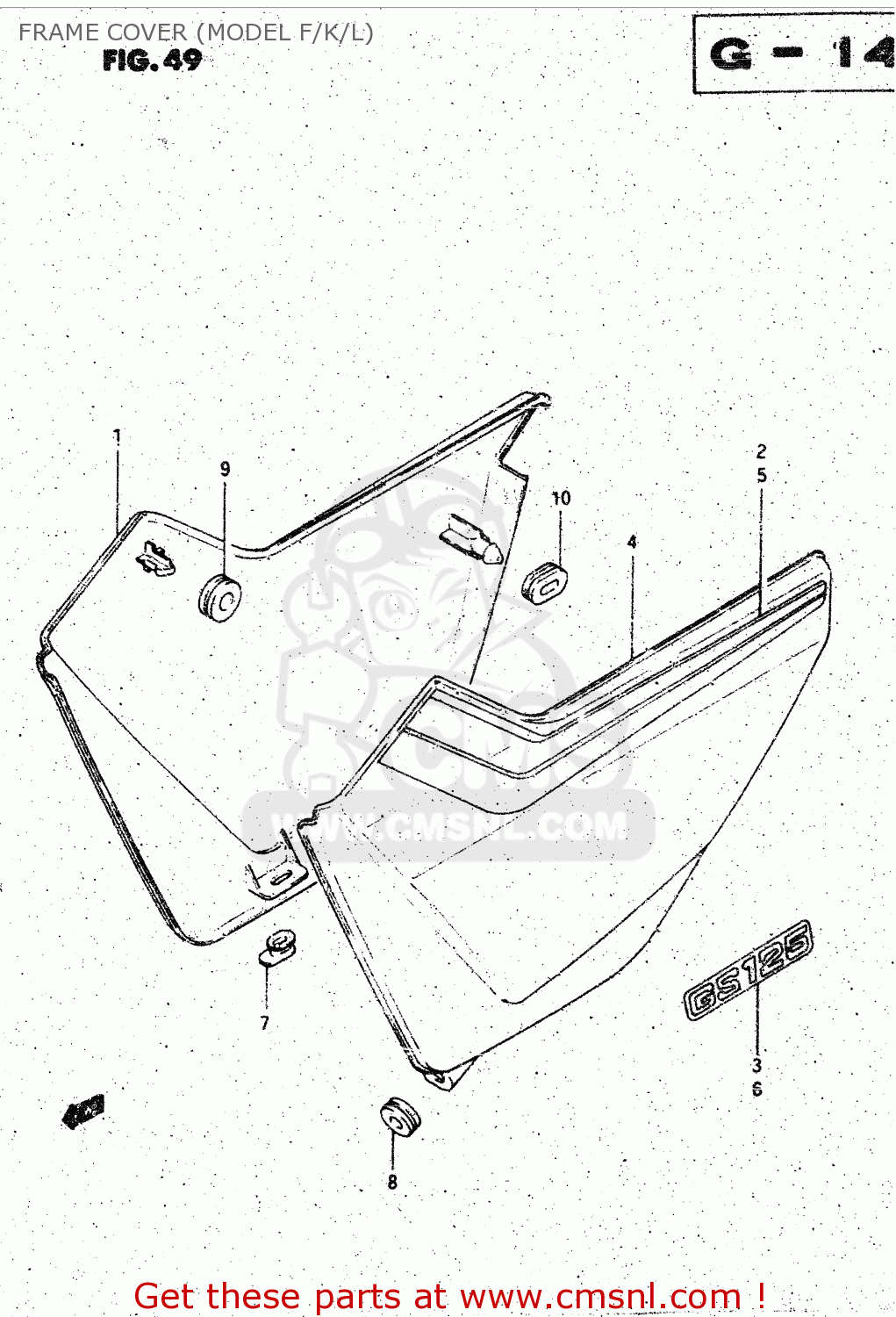

Frame cover (model f/k/l) diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)

FRAME COVER (MODEL F/K/L) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

FRAME COVER (MODEL F/K/L) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

prices are in EUR

ref

part #

description

quantity

1-1

471110535107P
ref: 1-1

COVER, FRAME RH (RED)

€ 62.50

1-2

471110535104Y
ref: 1-2

COVER, FRAME RH (BLUE)

€ 50.00

1-3

4711105351019
ref: 1-3

COVER,FRAME,R(BLACK)

€ 50.00

1-4

471110535114L
ref: 1-4

COVER,FRAME,R(WHITE)

€ 65.00

1-5

471110535122R
ref: 1-5
MODEL K/L

COVER, FRAME RH (WHITE)

€ 50.00

1-6

47111053510NH
ref: 1-6
MODEL L

COVER,FRAME,R(RED)

€ 62.50

2-1

68130053107RN
ref: 2-1
FOR 07P,0NH

TAPE SET, FRAME COVER RH

€ 14.00

2-2

68130053107SL
ref: 2-2
FOR 04Y

TAPE SET, FRAME COVER RH

€ 0.00

2-3

68130053107RM
ref: 2-3
FOR 019

TAPE SET, FRAME COVER RH

€ 0.00

2-4

68130053107DH
ref: 2-4
FOR 14L

TAPE SET, FRAME COVER RH

€ 0.00

2-5

68130053102WT
ref: 2-5
MODEL K/E,FOR 22R

TAPE SET,FRM COVER,R

€ 0.00

3-1

6813105390064
ref: 3-1
FOR 07P,04Y,019,0NH

EMBLEM

€ 5.50

3-2

6813105390019
ref: 3-2
FOR 14L,22R

EMBLEM

€ 10.00

4-1

472110535107P
ref: 4-1

COVER, FRAME LH (RED)

€ 62.50

4-2

472110535104Y
ref: 4-2

COVER, FRAME LH (BLUE)

€ 55.50

4-3

4721105351019
ref: 4-3

COVER,FRAME,L(BLACK)

€ 55.50

4-4

472110535114L
ref: 4-4

COVER, FRAME LH (WHITE)

€ 55.50

4-5

472110535122R
ref: 4-5
MODEL K/L

COVER,FRAME,L(WHITE)

€ 0.00

4-6

47211053510NH
ref: 4-6
MODEL L

COVER,FRAME,L(RED)

€ 62.50

5-1

68140053107RN
ref: 5-1
FOR 07P,0NH

TAPE SET, FRAME COVER LH

€ 14.00

5-2

68140053107SL
ref: 5-2
FOR 04Y

TAPE SET, FRAME COVER LH

€ 12.50

5-3

68140053107RM
ref: 5-3
FOR 019

TAPE SET, FRAME COVER LH

€ 0.00

5-4

68140053107DH
ref: 5-4
FOR 14L

TAPE SET, FRAME COVER LH

€ 0.00

5-5

68140053102WT
ref: 5-5
MODEL K/L, FOR 22R

TAPE SET,FRM COVER,L

€ 0.00

6-1

6813105390064
ref: 6-1
FOR 07P,04Y,019,0NH

EMBLEM

€ 5.50

6-2

6813105390019
ref: 6-2
FOR 14L,22R

EMBLEM

€ 10.00

7

0932003004
ref: 7

CUSHION

€ 2.00

8

0932005006
ref: 8

CUSHION

€ 4.00

9-1

0932008018
ref: 9-1
MODEL Z/D/F

CUSHION

€ 4.00

9-2

0932008018
ref: 9-2
MODEL K/L

CUSHION

€ 4.00

10

0932908003
ref: 10
MODEL Z/D/F

CUSHION

€ 3.50
