FRONT WHEEL (GS125UR)

GS125ES 1985 (F) (E01 E02 E04 E15 E24)

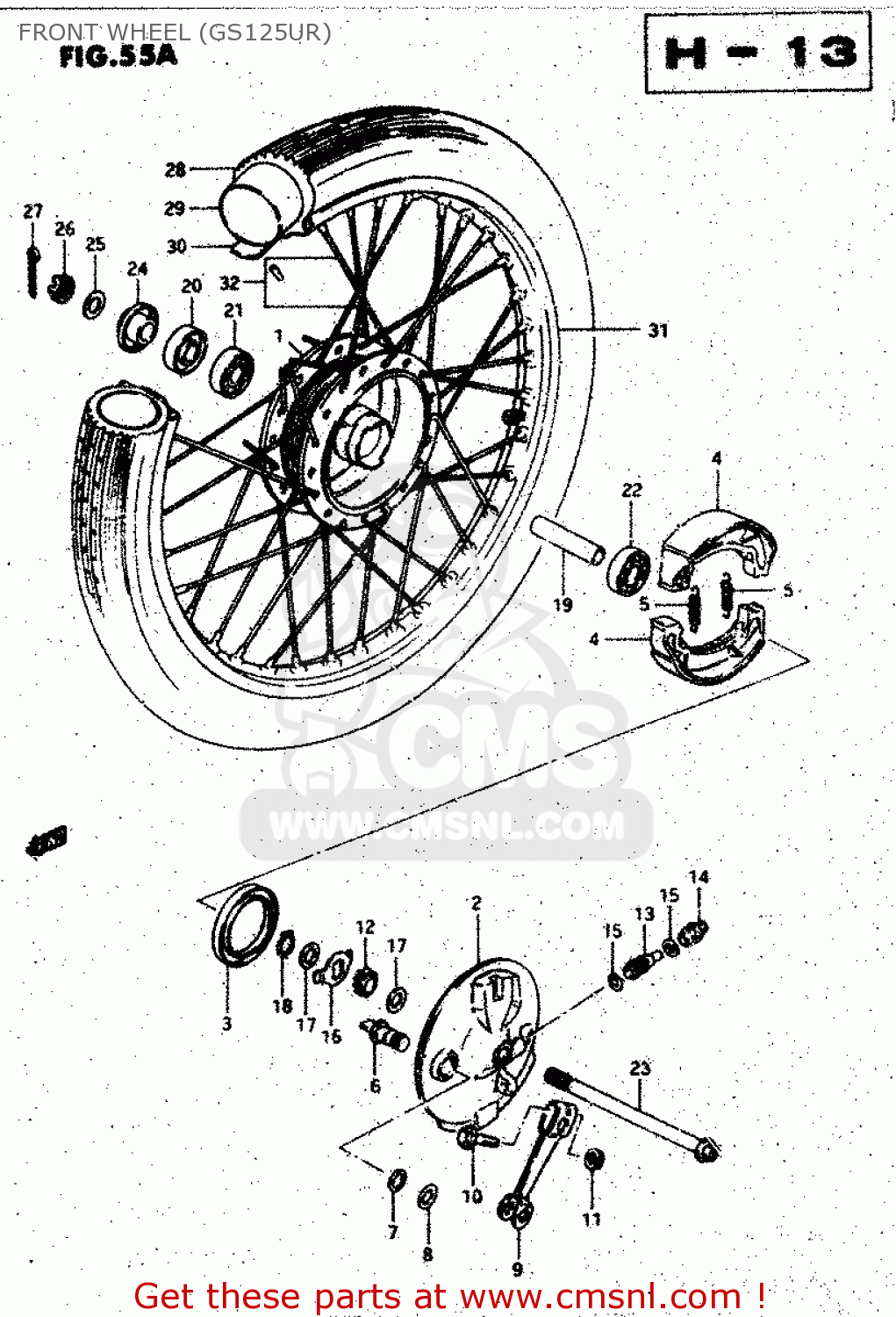

Front wheel (gs125ur) diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)

FRONT WHEEL (GS125UR) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

FRONT WHEEL (GS125UR) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

prices are in EUR

ref

part #

description

quantity

1

5411007003
ref: 1

HUB,FR WHEEL

€ 137.50

2

5421005301
ref: 2

PANEL,FRONT BRAKE ANCHOR

€ 0.00

3

0928548001
ref: 3

SEAL,OIL(48X62X7)

€ 5.50

4

5441007040
ref: 4

SHOE,BRAKE

€ 35.00

5

0944307001
ref: 5

SPRING(L:34)

€ 2.50

6

5444129305
ref: 6

CAM,BRAKE

€ 13.00

7

0928014003
ref: 7

O-RING (D:2.4 ID:13.8)

€ 3.50

8

0916014001
ref: 8

WASHER (14.5X22X1.6)

€ 2.50

9

5445146110
ref: 9

LEVER,FR BRAKE CAM

€ 7.50

10

0155006353
ref: 10

BOLT

€ 2.50

11

0831610063
ref: 11

NUT

€ 2.50

12

5461107002
ref: 12

GEAR,SPEEDOMETER(NT:24)

€ 16.50

13

5462139202
ref: 13

PINION,SPEEDOMETER(NT:9)

€ 33.50

14

5463202201
ref: 14

BUSH,SPEEDOMETER PINION OUTER

€ 6.50

15

0916005001
ref: 15

WASHER (5.1X9X0.4)

€ 2.00

16

5466107000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916018002
ref: 17

WASHER(18.5X24X1)

€ 2.00

18

0833131186
ref: 18

CLIP

€ 2.00

19

0918012032
ref: 19

SPACER(12.6X19X47)

€ 6.00

20

0928418001
ref: 20

OIL SEAL(17X38X5)

€ 12.50

21

0811363010
ref: 21

BEARING

€ 9.50

22

0814363017
ref: 22

BEARING

€ 14.50

23

5471141101
ref: 23

AXLE,FR

€ 42.00

24

5474041301
ref: 24

SPACER,FR AXLE,R

€ 5.50

25

0832201127
ref: 25

WASHER

€ 2.00

26

0914112003
ref: 26

NUT

€ 4.50

27

0411120308
ref: 27

COTTER PIN

€ 1.00

28

5510012B00
ref: 28

TIRE,FR(2.75-18)

€ 201.00

29

5520011601
ref: 29

TUBE,INNER

€ 24.50

30

5526111010
ref: 30

PROTECTOR,INNER TUBE

€ 3.50

31

5531105300
ref: 31

RIM,FR WHEEL 1.60X18

€ 86.50

32

5532005300
ref: 32

SPOKE SET,FRONT

€ 34.50
