FRONT MASTER CYLINDER (MODEL Z/D/F)

GS125ES 1985 (F) (E01 E02 E04 E15 E24)

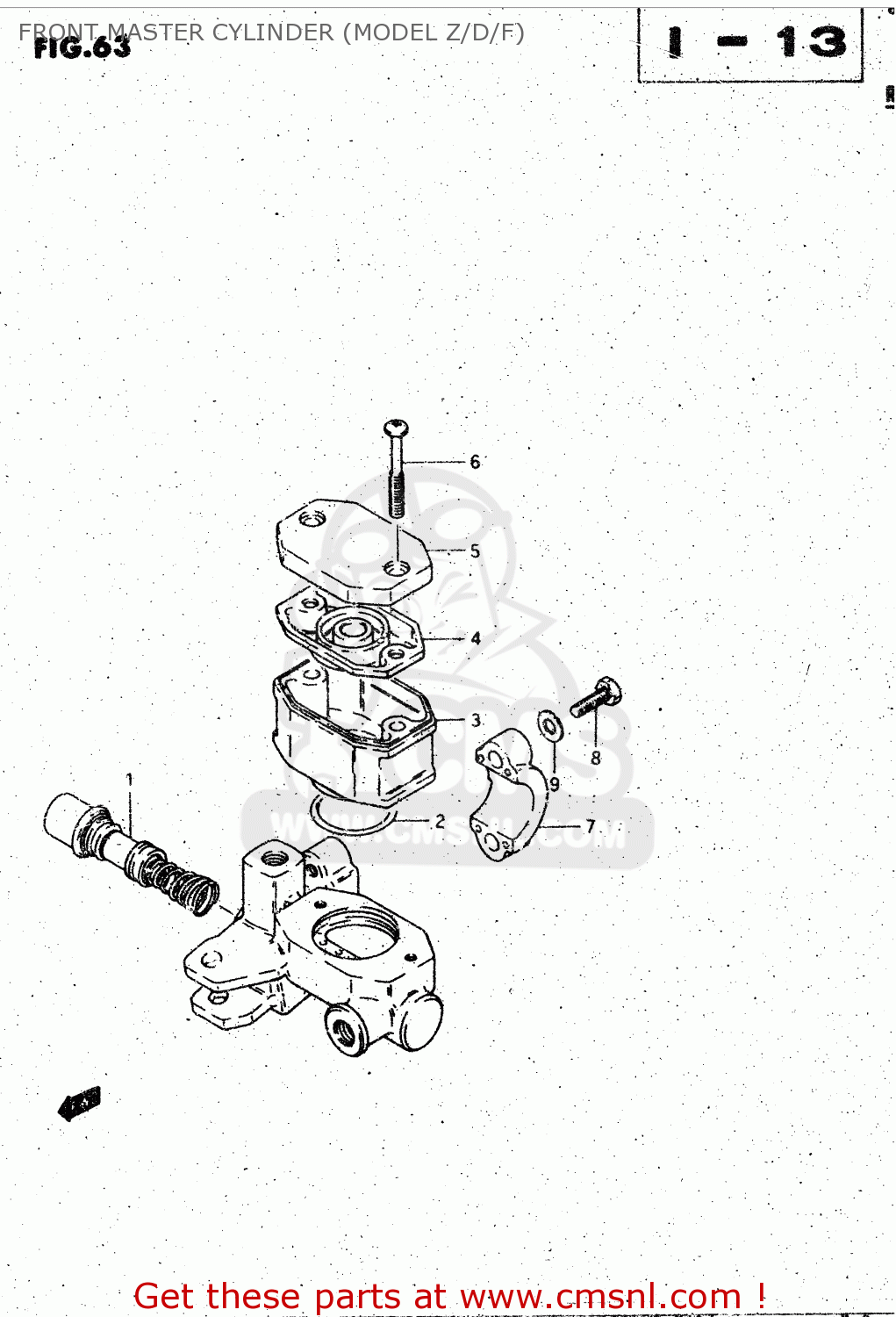

Front master cylinder (model z/d/f) diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)

FRONT MASTER CYLINDER (MODEL Z/D/F) GS125ES 1985 (F) (E01 E02 E04 E15 E24)
FRONT MASTER CYLINDER (MODEL Z/D/F) GS125ES 1985 (F) (E01 E02 E04 E15 E24)
FRONT MASTER CYLINDER (MODEL Z/D/F) GS125ES 1985 (F) (E01 E02 E04 E15 E24)
prices are in EUR
ref
part #
description
quantity
0
5960005300
ref: 0
CYLINDER ASSY,FR MASTER
€ 139.50
0
5960005310
ref: 0
E4
CYLINDER ASSY,FR MASTER
€ 0.00
1
5960036810
ref: 1
PISTON & CUP SET
5960036810
€ 38.50
2
5968645100
ref: 2
O RING
5968645100
€ 9.50
3
5968736500
ref: 3
RESERVOIR
5968736500
€ 13.50
4
5966736500
ref: 4
DIAPHRAGM
5966736500
€ 8.00
5-1
5966936500
ref: 5-1
CAP,RESERVOIR
5966936500
€ 13.50
5-2
5966936510
ref: 5-2
E4
CAP
5966936510
€ 9.00
6
5969136500
ref: 6
SCREW
5969136500
€ 1.50
7
5967105300
ref: 7
HOLDER
5967105300
€ 13.00
8
0110706255
ref: 8
BOLT
0110706255
€ 2.50
9
0832221064
ref: 9
WASHER
0832221064
€ 2.00
