STAND
GS125ES 1985 (F) (E01 E02 E04 E15 E24)

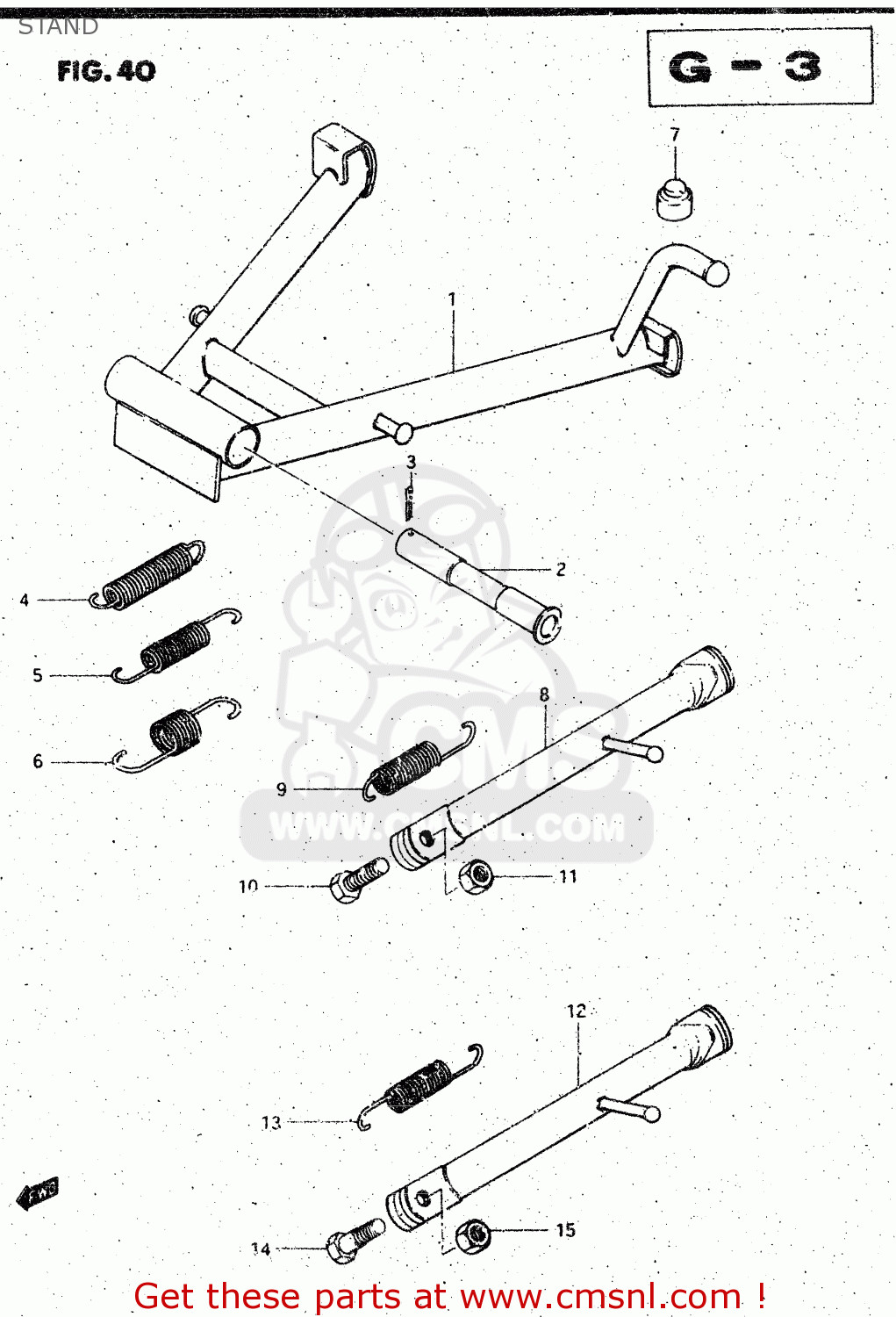

Stand diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)
STAND GS125ES 1985 (F) (E01 E02 E04 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1
4210005303
ref: 1
STAND,CTR
€ 70.50
2-1
4221136501
ref: 2-1
MODEL Z/D/F
SHAFT,CENTER STAND
€ 20.00
2-2
4221136502
ref: 2-2
MODEL K/L/M
SHAFT,CENTER STAND
€ 20.00
3-3
4221136504
ref: 3-3
MODEL R
SHAFT,CTR STAND
€ 20.00
3
0411130308
ref: 3
COTTER PIN
€ 1.50
4-1
0944318003
ref: 4-1
MODEL Z/D
SPRING
€ 5.50
4-2
0944318006
ref: 4-2
MODEL F/K/L/M/R
SPRING
€ 5.50
5
0944315013
ref: 5
E15 F.NO.114709~
SPRING
€ 22.50
6
0944322002
ref: 6
E15 F.NO.114709~
SPRING
€ 7.00
7
0932110001
ref: 7
CUSHION
€ 2.50
8
4231005300
ref: 8
STAND,PROP
€ 75.50
9
0944317007
ref: 9
SPRING
€ 4.50
10-1
0910010067
ref: 10-1
MODEL Z/D/F/K/L/M
BOLT(10X30)
€ 3.50
10-2
0910010501
ref: 10-2
MODEL R
BOLT(10X30)
€ 2.50
11-1
0831022107
ref: 11-1
MODEL Z/D/F/K/L/M
NUT
€ 2.50
11-2
0914010043
ref: 11-2
MODEL R
NUT
€ 2.00
12
4231005310
ref: 12
E18,E15 F.NO.114709~
STAND,PROP
€ 19.00
13
0944317011
ref: 13
E18,E15 F.NO.114709~
SPRING
€ 9.00
14-1
0911110019
ref: 14-1
E18,E19 F.NO.114709~
BOLT L:30
€ 4.50
14-2
0911110047
ref: 14-2
MODEL R E2
BOLT(10X30)
€ 4.50
15-1
0831022107
ref: 15-1
E18,E15 F.NO.114709~
NUT
€ 2.50
15-2
0914010043
ref: 15-2
MODEL R E2
NUT
€ 2.00
