HANDLE SWITCH (GS125ESE/EZ/ESD/ESF)

GS125ES 1985 (F) (E01 E02 E04 E15 E24)

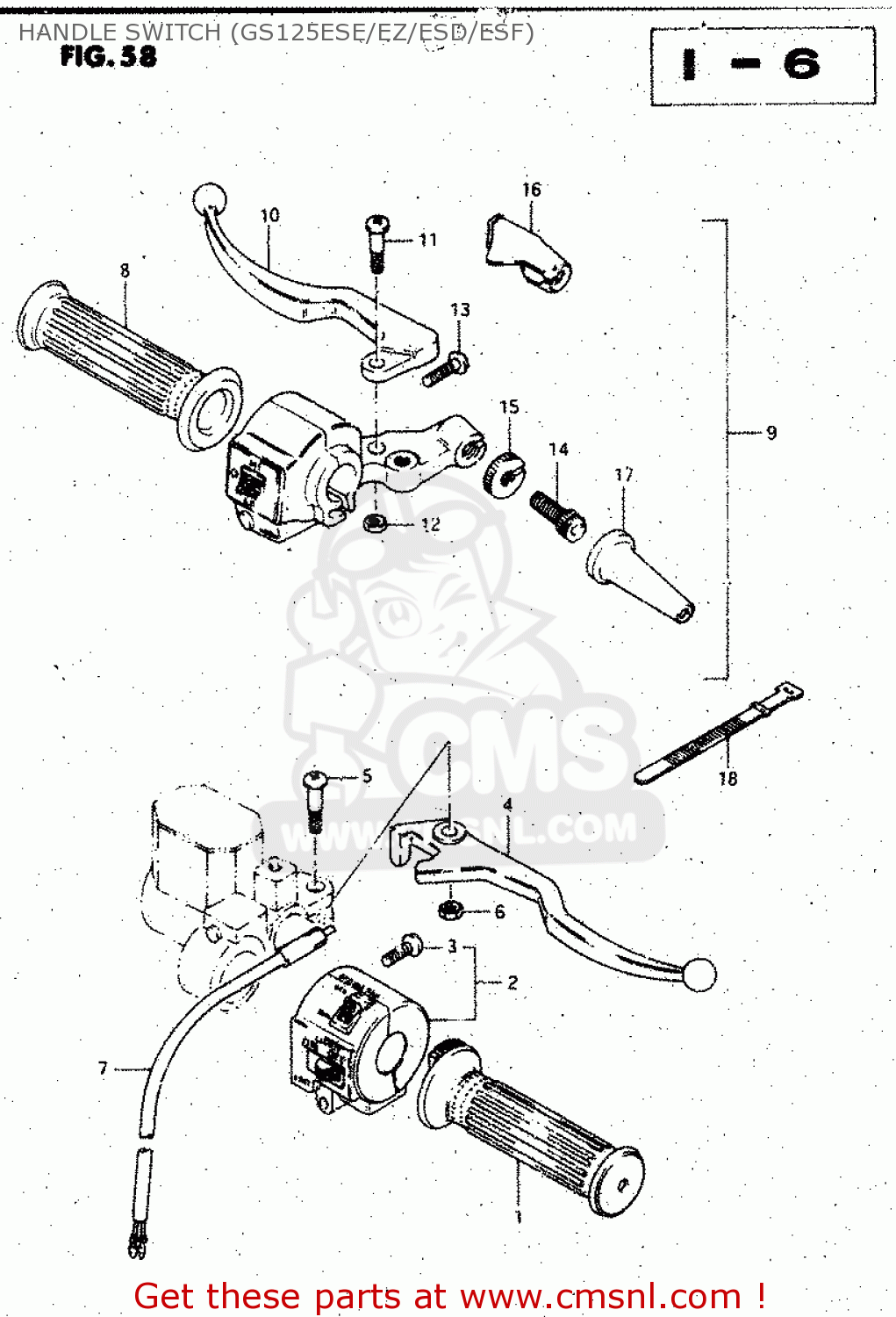

Handle switch (gs125ese/ez/esd/esf) diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)

HANDLE SWITCH (GS125ESE/EZ/ESD/ESF) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

HANDLE SWITCH (GS125ESE/EZ/ESD/ESF) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

prices are in EUR

ref

part #

description

quantity

1

3711013010
ref: 1

GRIP, THROTTLE

€ 0.00

2-1

3720005312
ref: 2-1
E1,E6,E24,E30

SWITCH ASSY,HANDLE,R

€ 0.00

2-2

3720005302
ref: 2-2
E2,E4,E15,E17,E18,E3

SWITCH ASSY,HANDLE,R

€ 86.50

3

0211205208
ref: 3

SCREW 5X20

€ 3.00

4

5742113001
ref: 4

LEVER,BRAKE

€ 18.00

5

5743113010
ref: 5

SCREW

€ 5.50

6

0831921065
ref: 6

NUT

€ 2.50

7

5746013001
ref: 7

SWITCH ASSY,STOP

€ 18.00

8

5721146120
ref: 8

GRIP,L

€ 13.00

9-1

5750005312
ref: 9-1
E1,E2,E4,E6,E17,E18,

LEVER ASSY,CLUTCH

€ 71.00

9-2

5750005321
ref: 9-2
E15,E39

LEVER ASSY, CLUTCH

€ 0.00

10

5762036500
ref: 10

LEVER,CLUTCH

€ 34.50

11

5743113001
ref: 11

SCREW

€ 5.00

12

0831921055
ref: 12

NUT 8MM

€ 1.50

13

0211205205
ref: 13

SCREW 5X20

€ 2.50

14

5744111010
ref: 14

ADJUSTER,CABLE

€ 8.00

15

5744211010
ref: 15

NUT,CABLE ADJUSTER

€ 4.00

16

5766131000
ref: 16

COVER,CLUTCH LEVER

€ 5.50

17

5827331000
ref: 17

BOOT,CLUTCH CABLE

€ 2.50

18

0940712402
ref: 18

CLAMP(L:120)

€ 3.00
