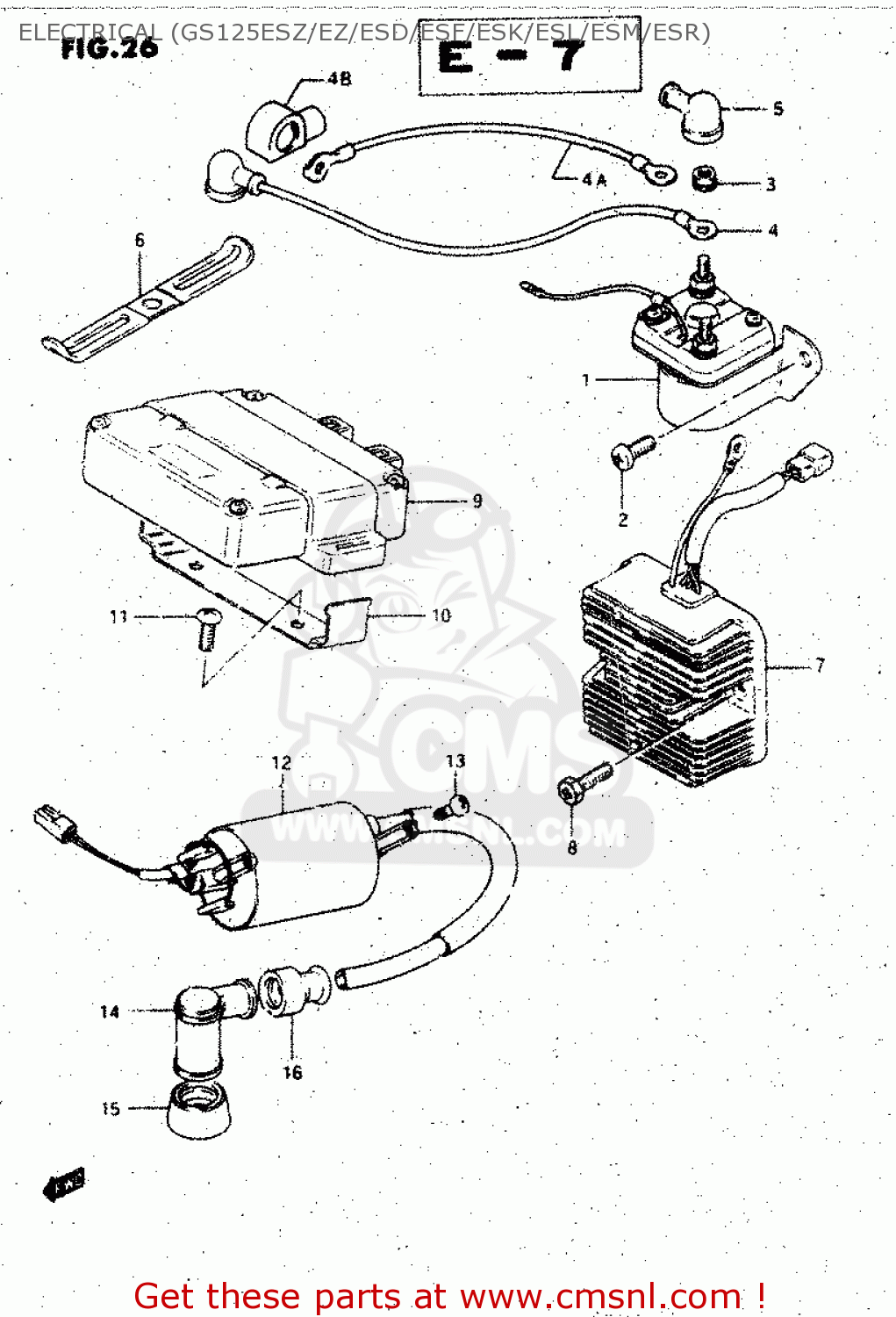

ELECTRICAL (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR)

GS125ES 1985 (F) (E01 E02 E04 E15 E24)

Electrical (gs125esz/ez/esd/esf/esk/esl/esm/esr) diagram GS125ES 1985 (F) (E01 E02 E04 E15 E24)

ELECTRICAL (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

ELECTRICAL (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1985 (F) (E01 E02 E04 E15 E24)

prices are in EUR

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2-1

0211206108
ref: 2-1
MODEL Z/D/F/K/L

SCREW

€ 1.50

2-2

0912806004
ref: 2-2
MODEL M/R

SCREW(6X10)

€ 1.50

3

0836135066
ref: 3

NUT

€ 2.00

4

3385005301
ref: 4
MODEL Z/D/F/K/L

WIRE,STARTER MOTOR

€ 16.50

4A

3385005310
ref: 4A
MODEL M

WIRE,STARTER MOTOR LEAD

€ 16.50

4B

3186106C00
ref: 4B
MODEL M

CAP,STARTER MOTOR TERMINAL

€ 3.00

5

3186105300
ref: 5
MODEL Z/D

CAP,STARTER MOTOR TERMINAL

€ 4.50

6

3665105300
ref: 6

CLAMP,WIRING HARNESS

€ 5.00

7-1

3280005300
ref: 7-1
MODEL Z/D/F/K/L

RECTIFIER ASSEMBLY

€ 188.00

7-2

3280005310
ref: 7-2
MODEL M

RECTIFIER, REGULATOR

€ 188.00

7-3

3280005320
ref: 7-3
MODEL R

RECTIFIER ASSY

€ 188.00

8-1

0912806011
ref: 8-1
MODEL Z/D/F/K/L/M

SCREW(6X12)

€ 3.00

8-2

0912806006
ref: 8-2
MODEL R

BOLT(6X20)

€ 2.00

9

3290005300
ref: 9

IGNITOR UNIT

€ 435.00

10

3293105301
ref: 10

BRACKET, IGNITER

€ 0.00

11

0214206088
ref: 11

SCREW, PLATE

€ 1.00

12-1

3341005321
ref: 12-1
MODEL Z

COIL, IGNITION

€ 94.50

12-2

3341005302
ref: 12-2
MODEL D/F/K/L/M

COIL ASSY,IGNITION

€ 94.50

12-3

3341005350
ref: 12-3
MODEL R

COIL ASSY,IGNITION

€ 128.00

13

0214205193
ref: 13

SCREW

€ 0.00

14

3351022610
ref: 14

CAP,SPARK PLUG

€ 61.50

15

3354124510
ref: 15

SEAL,SPARK PLUG CAP

€ 7.00

16

3354238B00
ref: 16

SEAL,HIGH TENSION CORD

€ 4.50
