AIR CLEANER (GS125 UR E71)

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

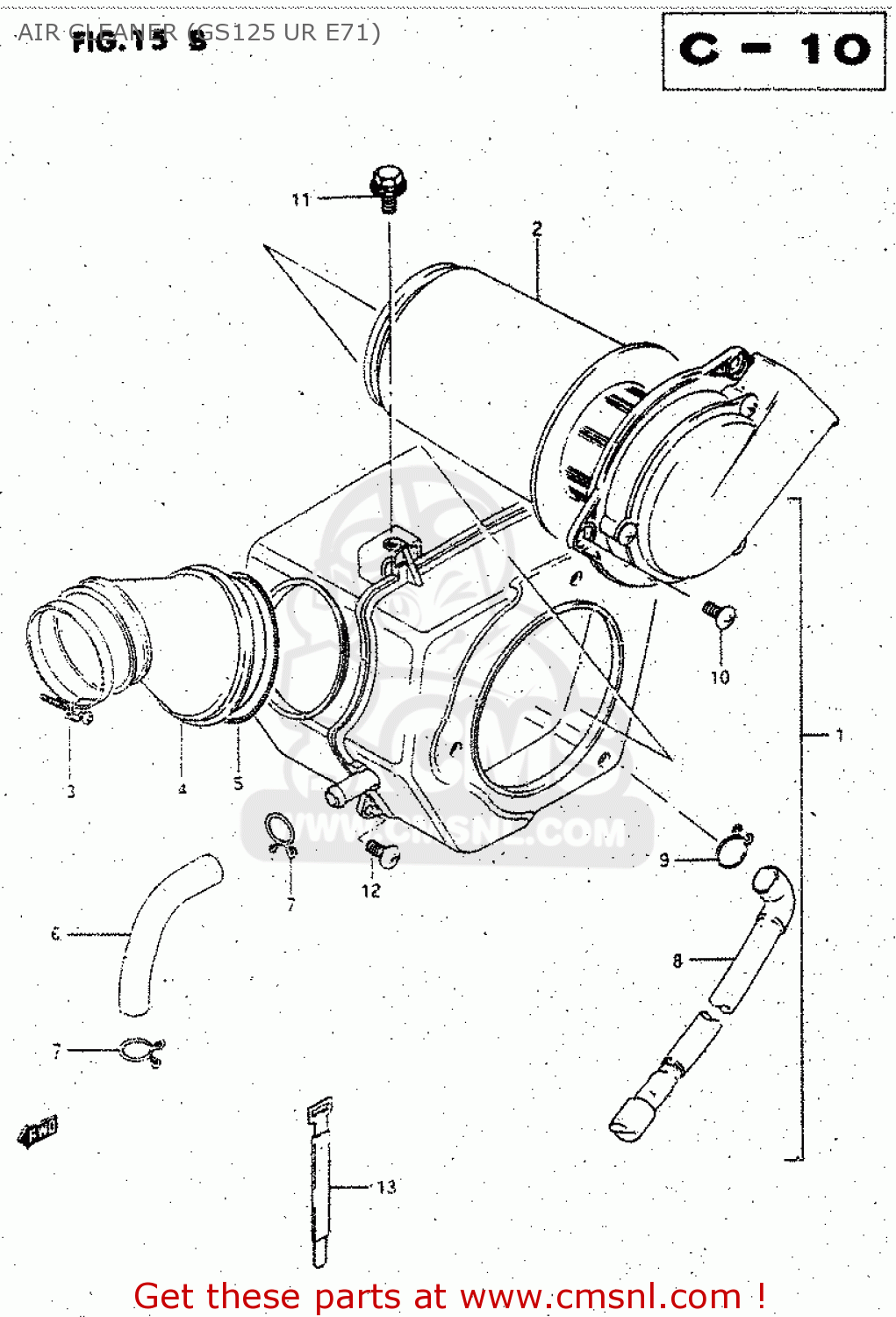

Air cleaner (gs125 ur e71) diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

AIR CLEANER (GS125 UR E71) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
AIR CLEANER (GS125 UR E71) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
AIR CLEANER (GS125 UR E71) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1
1370005370
ref: 1
CLEANER ASSY
€ 0.00
2
1378005360
ref: 2
FILTER
€ 0.00
3
0940256208
ref: 3
CLAMP
0940256208
€ 3.50
4
1388105300
ref: 4
TUBE,OUTLET
1388105300
€ 21.00
5
1382638300
ref: 5
CLAMP,AIR CLEANER SIDE
1382638300
€ 3.00
6
1385305300
ref: 6
TUBE,BREATHER
1385305300
€ 13.00
7
0940114401
ref: 7
CLIP
0940114401
€ 2.00
8
1387021308
ref: 8
TUBE,DRAIN
1387021308
€ 16.50
9
1382400A00
ref: 9
CLIP
1382400A00
€ 2.50
10
0214205127
ref: 10
SCREW
0214205127
€ 1.50
11
0911806017
ref: 11
BOLT(6X16)
0911806017
€ 1.50
12
0214206163
ref: 12
SCREW
0214206163
€ 2.50
13
0940711301
ref: 13
CLAMP L:110
€ 6.00
