FRONT CALIPERS (MODEL Z)

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

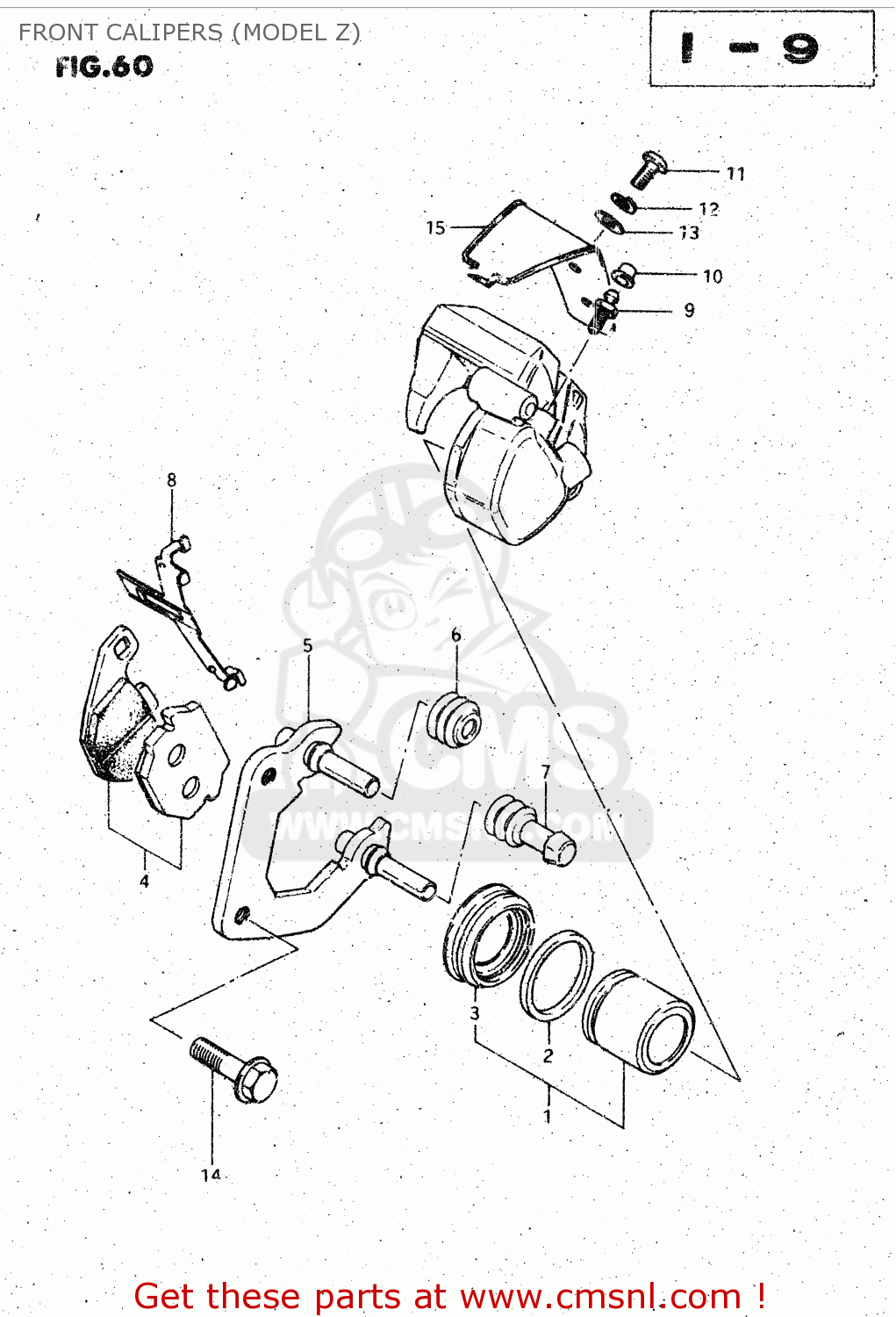

Front calipers (model z) diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

FRONT CALIPERS (MODEL Z) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
FRONT CALIPERS (MODEL Z) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
FRONT CALIPERS (MODEL Z) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
0
5930005310
ref: 0
TOKICO
CALIPERS ASSY, FRONT LH
€ 299.00
1
5930036830
ref: 1
PISTON SET
5930036830
€ 53.00
2
5910739100
ref: 2
SEAL,PISTON
5910739100
€ 18.00
3
5930836500
ref: 3
BOOT,PISTON
5930836500
€ 12.50
4
5930033812
ref: 4
PAD SET,BRAKE (MCA)
5930033812
€ 47.50
5
5935036501
ref: 5
CARRIER,L
5935036501
€ 52.00
6
5931236500
ref: 6
BOOT,AXLE
5931236500
€ 4.00
7
5931336500
ref: 7
INSULATOR,AXLE
5931336500
€ 5.50
8
5931536500
ref: 8
SPRING,PAD
5931536500
€ 11.00
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5912218410
ref: 10
CAP,BREATHER
5912218410
€ 6.00
11
0211205128
ref: 11
SCREW
€ 2.50
12
0832121057
ref: 12
LOCK WASHER
0832121057
€ 2.00
13
0832221057
ref: 13
WASHER
0832221057
€ 2.50
14
0151708307
ref: 14
BOLT 8X30
€ 3.50
15
5931312001
ref: 15
COVER
€ 0.00
