ELECTRICAL (GS125Z/D,UR E71)

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

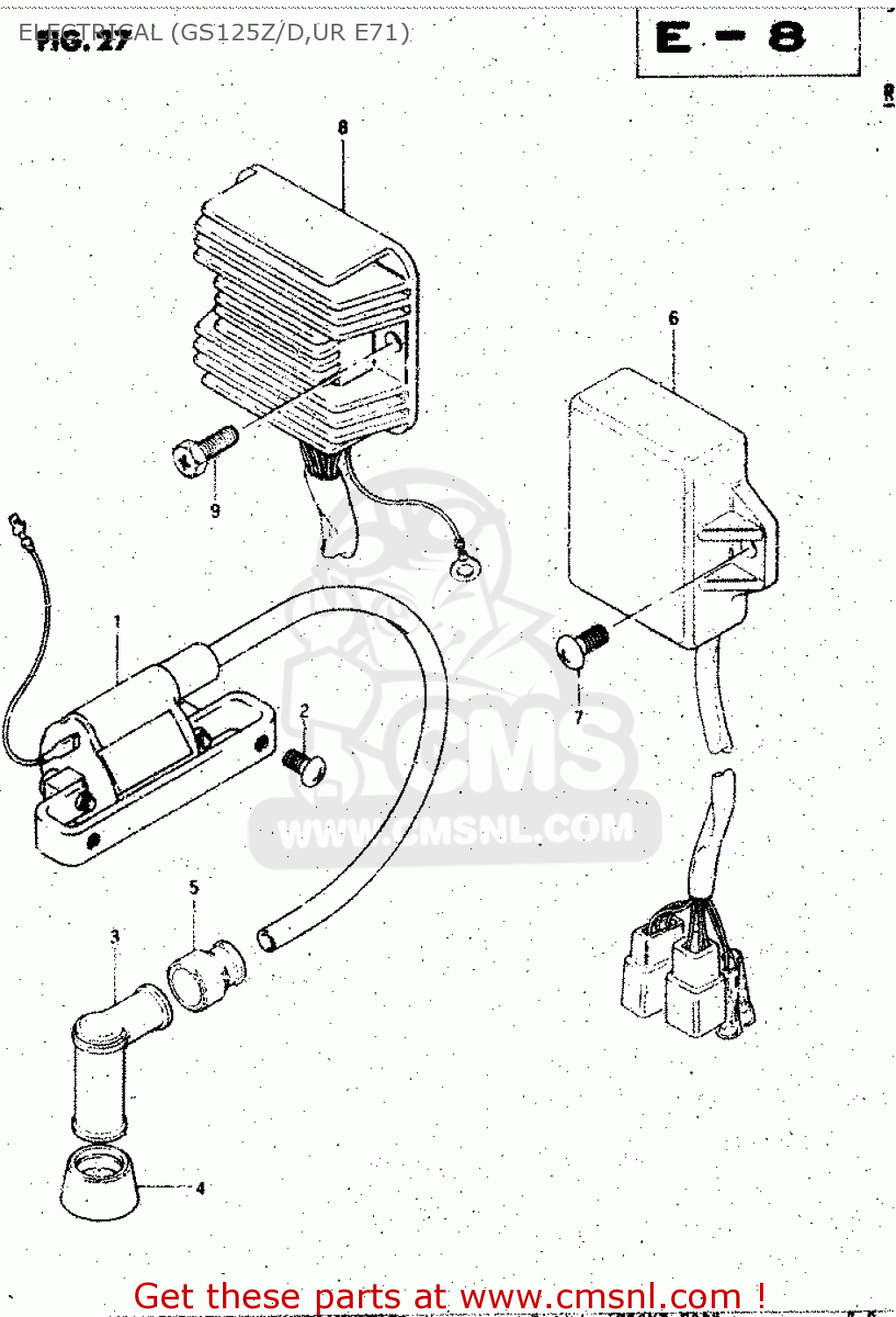

Electrical (gs125z/d,ur e71) diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

ELECTRICAL (GS125Z/D,UR E71) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
ELECTRICAL (GS125Z/D,UR E71) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
ELECTRICAL (GS125Z/D,UR E71) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1-1
3341005311
ref: 1-1
MODEL Z
COIL, IGNITION
€ 90.00
1-2
3341005330
ref: 1-2
MODEL D
COIL, IGNITION
€ 90.00
1-3
3341005331
ref: 1-3
E71,ARROW RIGHT33410
COIL, IGNITION
€ 90.00
2
0214205103
ref: 2
SCREW
0214205103
€ 2.50
3
3351022010
ref: 3
CAP ASSY,SPARK PLUG
3351022010
€ 16.50
4
3354124510
ref: 4
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
5
3354238B00
ref: 5
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
6
3290005220
ref: 6
CDI UNIT
3290005220
€ 224.00
7
0214206163
ref: 7
SCREW
0214206163
€ 2.50
8-1
3280005300
ref: 8-1
MODEL Z/D,ARROW RIGH
RECTIFIER ASSEMBLY
3280005300
€ 188.00
8-2
3280005320
ref: 8-2
E71
RECTIFIER ASSY
€ 188.00
9-1
0912806011
ref: 9-1
MODEL Z/D
SCREW(6X12)
0912806011
€ 3.00
9-2
0912806006
ref: 9-2
E71
BOLT(6X20)
0912806006
€ 2.00
