FRONT FORK (GS125EZ E17)

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

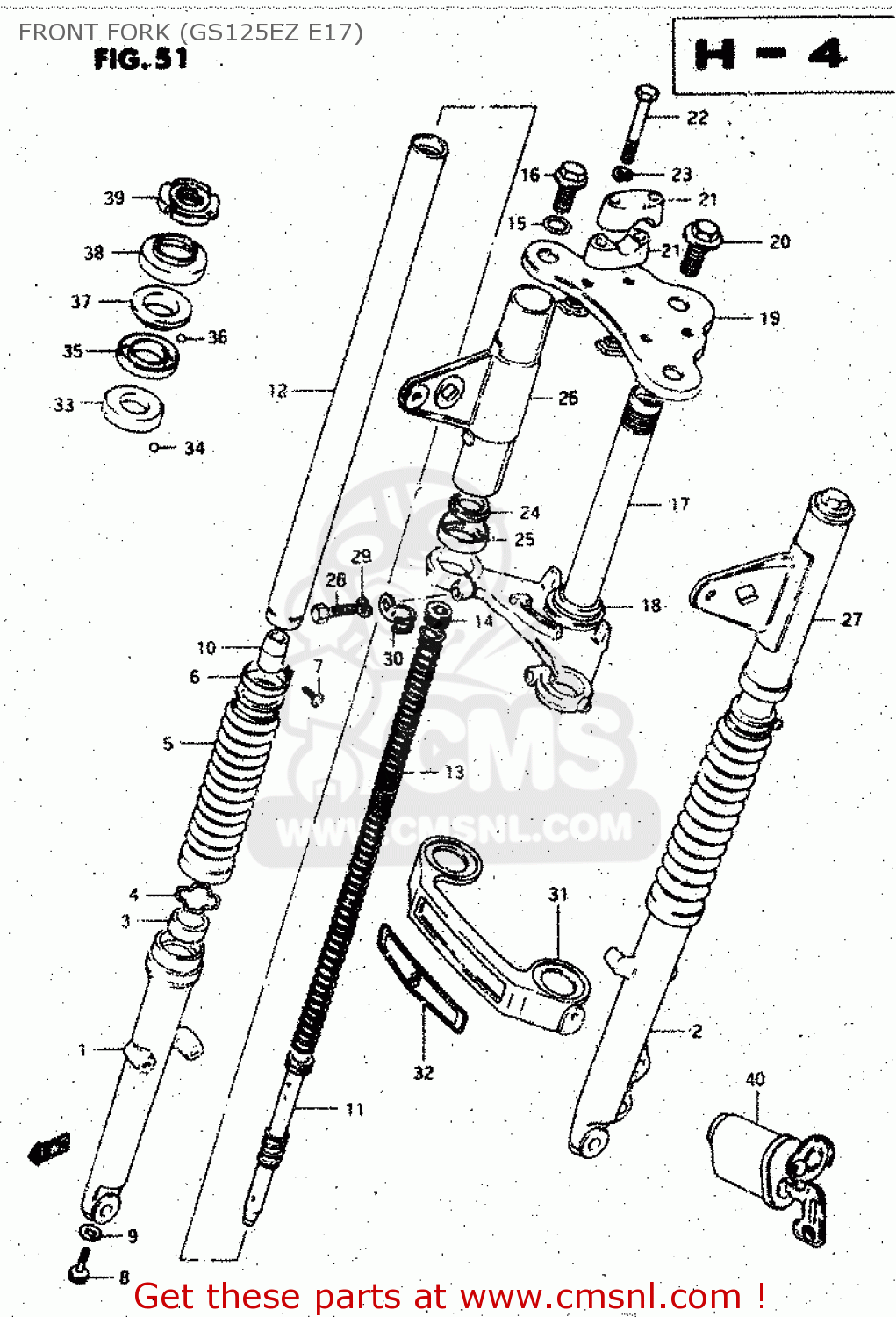

Front fork (gs125ez e17) diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

FRONT FORK (GS125EZ E17) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

FRONT FORK (GS125EZ E17) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

prices are in EUR

ref

part #

description

quantity

0

5110005370291
ref: 0

FRONT FORK ASSY

€ 0.00

1

5113036500
ref: 1

TUBE,OUTER,R

€ 88.50

2

5114036500
ref: 2

TUBE,OUTER,L

€ 0.00

3

5115329400
ref: 3

OIL SEAL,FRONT FORK

€ 11.00

4

5115639260
ref: 4

RING,SNAP

€ 2.50

5

5157129500
ref: 5

BOOT

€ 19.00

6

5157529500
ref: 6

BAND,BOOT

€ 6.50

7

0211204167
ref: 7

SCREW

€ 1.00

8

5114716510
ref: 8

BOLT,FORK CYLINDER(10X25)

€ 3.50

9

5114841310
ref: 9

GASKET (NAS)

€ 2.50

10

5119536220
ref: 10

PIECE,OIL LOCK

€ 11.50

11

5114605330
ref: 11

FRONT FORK DAMPER TUBE

€ 20.00

12

5111005330
ref: 12

TUBE, INNER

€ 119.00

13

5117105330
ref: 13

SPRING

€ 25.50

14

5135336220
ref: 14

NUT

€ 7.00

15

5111736220
ref: 15

O RING

€ 2.00

16

5135139220
ref: 16

CAP

€ 12.00

17

5141005340
ref: 17

STEM, STEERING

€ 123.00

18

5162133001
ref: 18

RACE,STEERING OUTER LWR

€ 10.00

19

5131005330291
ref: 19

HEAD,STEERING STEM

€ 64.50

20

5135239220
ref: 20
ARROW LEFT51352-3914

BOLT

€ 4.00

21

5621127200291
ref: 21

HOLDER,HANDLE UPR

€ 13.50

22

0120408557
ref: 22

BOLT

€ 2.50

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

3155325210
ref: 24

CUSHION

€ 0.00

25

5155110200
ref: 25

GUIDE,BRACKET

€ 5.50

26

5153005340291
ref: 26

BRACKET, HEADLAMP RH

€ 36.50

27

5154005340291
ref: 27

BRACKET, HEADLAMP LH

€ 36.50

28

5145128012
ref: 28

BOLT,FR FORK LWR(12X33)

€ 11.50

29

0832121128
ref: 29

WASHER,LOCK 12

€ 2.50

30

5145536010
ref: 30

CLIP

€ 6.50

31

5187105350291
ref: 31

COVER, FRONT FORK

€ 23.50

32

6821138300
ref: 32

EMBLEM,FR FORK COVER

€ 13.50

33

5161133002
ref: 33

LACE,STEERING INNER LWR

€ 7.00

34

0611108003
ref: 34

BALL

€ 1.50

35

5161120002
ref: 35

RACE,STEERING INNER UPR

€ 5.50

36

0611106003
ref: 36

BALL

€ 1.50

37

5162128000
ref: 37

RACE,STEERING OUTER UPR

€ 7.00

38

5164325001
ref: 38

DUST SEAL,STEERING UPR

€ 4.50

39

5163128000
ref: 39

NUT,STEERING STEM(25X44X10)

€ 12.50

40

5190045400
ref: 40
EXECUTED LOCALLY

LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE

€ 0.00
