WIRING HARNESS

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

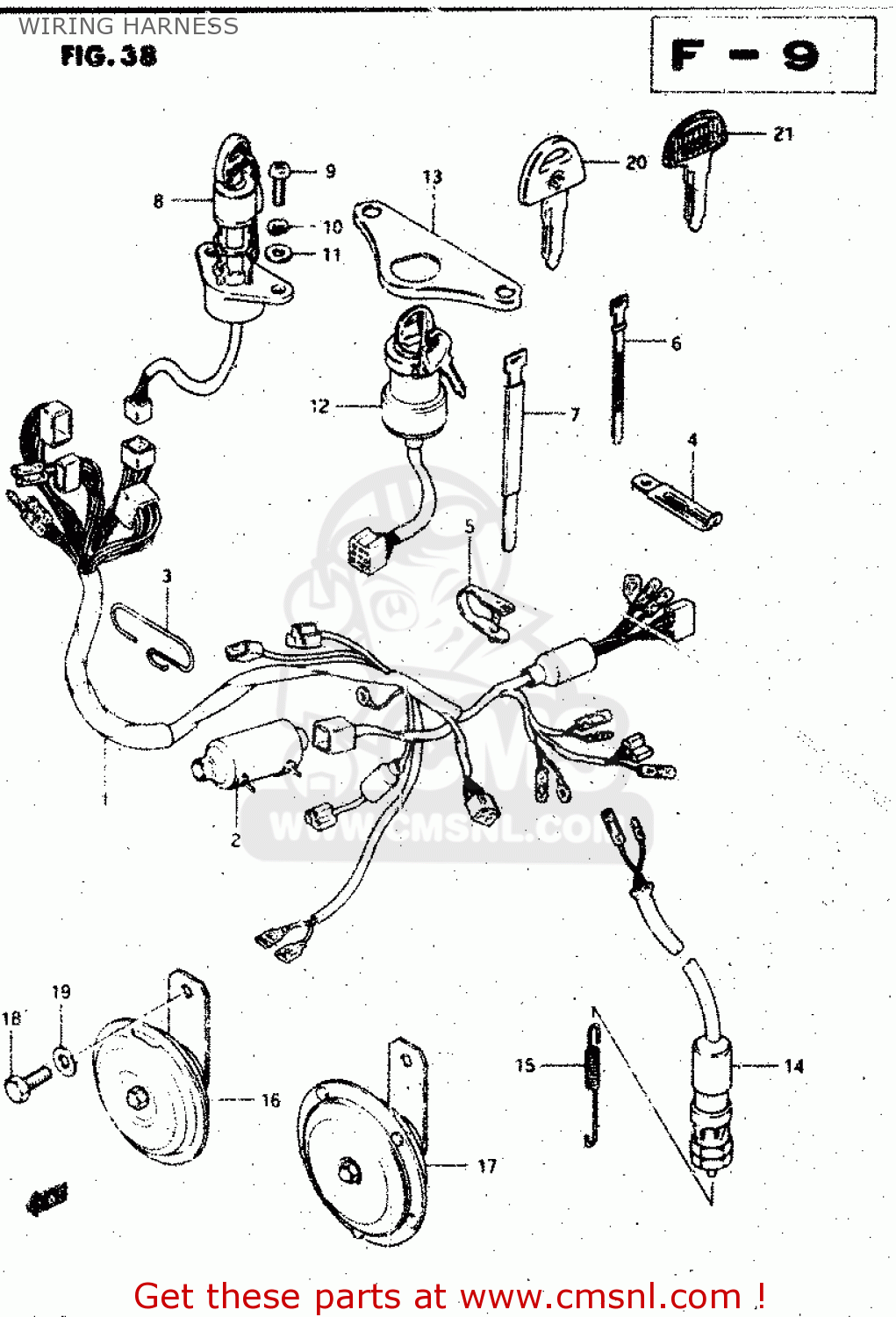

Wiring harness diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

WIRING HARNESS GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
WIRING HARNESS GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
WIRING HARNESS GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1-1
3661005361
ref: 1-1
GS125ESZ/EZ/ESD/ESF
WIRING HARNESS
€ 104.50
1-2
3661005440
ref: 1-2
GS125ESZ/ESZ/ESD/ESF
WIRING HARNESS
€ 104.50
1-3
3661005470
ref: 1-3
GS125ESK/ESL
WIRING HARNESS
€ 104.50
1-4
3661005351
ref: 1-4
GS125Z/D,GS125UR E71
HARNESS,WIRING
€ 0.00
1-5
3661005520
ref: 1-5
MODEL M
WIRING HARNESS
€ 0.00
1-6
3661005521
ref: 1-6
MODEL R
WIRING HARNESS
€ 0.00
2
3661830610
ref: 2
BOOT,WIRING HARNESS
3661830610
€ 9.50
3
3661937300
ref: 3
CLAMP,WIRING HARNESS
€ 0.00
4
0940406402
ref: 4
CLAMP
€ 2.50
5
0940705403
ref: 5
CLAMP,L:88
0940705403
€ 1.50
6-1
0940712402
ref: 6-1
CLAMP(L:120)
0940712402
€ 3.00
6-2
0940714401
ref: 6-2
CLAMP
0940714401
€ 3.00
6-3
0940714403
ref: 6-3
CLAMP(L:125)
0940714403
€ 2.50
6-4
0940714301
ref: 6-4
CLAMP
€ 6.00
7-1
0940711301
ref: 7-1
CLAMP L:110
€ 6.00
7-2
0940718301
ref: 7-2
CLAMP
0940718301
€ 6.00
7-3
0940718403
ref: 7-3
CLAMP L:165
€ 2.50
7-4
0940725301
ref: 7-4
CLAMP(L:250)
0940725301
€ 4.50
7-5
0940725401
ref: 7-5
CLAMP(L:235)
0940725401
€ 4.00
8
3711005301
ref: 8
SWITCH ASSY,IGNITION
3711005301
€ 121.00
9-1
0211206164
ref: 9-1
MODEL Z/D/F/K/L/M
SCREW
€ 2.00
9-2
0211276163
ref: 9-2
MODEL R
SCREW
0211276163
€ 2.00
10
0832121064
ref: 10
WASHER,LOCK
0832121064
€ 2.00
11
0832221064
ref: 11
WASHER
0832221064
€ 2.00
12
3711037172
ref: 12
GS125Z/D,GS125UR E71
SWITCH ASSY,IGNITION
3711037172
€ 81.00
13
3711536210
ref: 13
GS125Z/D,GS125UR E71
BRACKET,IGNITION SWITCH
3711536210
€ 6.00
14-1
3774048071
ref: 14-1
MODEL Z/D/F/K/L/M
SWITCH ASSY,STOP LAMP
3774048071
€ 22.00
14-2
3774004A10
ref: 14-2
MODEL R
SWITCH ASSY,STOP LAMP
3774004A10
€ 22.00
15
0944306012
ref: 15
SPRING
0944306012
€ 3.00
16
3850038360
ref: 16
HORN ASSEMBLY
€ 29.00
17
3850038390
ref: 17
E4,E18,E34,E39
HORN ASSY
3850038390
€ 61.50
18-1
0110708165
ref: 18-1
MODEL Z/D/F/X/L/M
BOLT
€ 2.00
18-2
0150008123
ref: 18-2
MODEL R
BOLT
0150008123
€ 1.50
19-1
0832211084
ref: 19-1
WASHER
0832211084
€ 1.50
19-2
3665105301
ref: 19-2
CLAMP,STARTER MOTOR LEAD
3665105301
€ 5.00
20
3714647010
ref: 20
OPT:GS125ESZ/EZ/ESD/
KEY,BLANK
3714647010
€ 15.00
21
3714519710
ref: 21
OPT:GS125Z/D
KEY,BLANK
3714519710
€ 13.00
