FRONT CALIPERS (MODEL D/F/K/L/M)

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

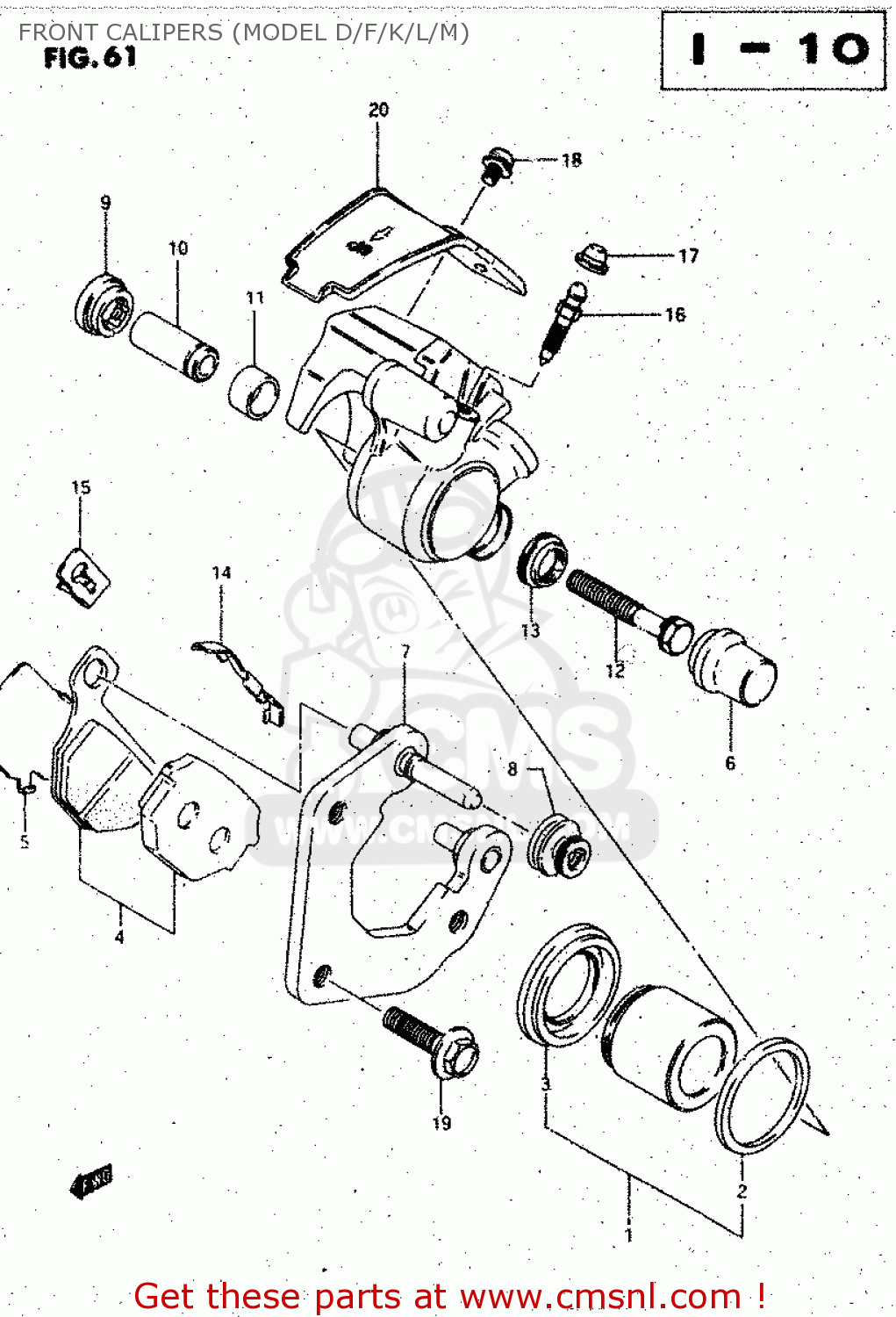

Front calipers (model d/f/k/l/m) diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

FRONT CALIPERS (MODEL D/F/K/L/M) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
FRONT CALIPERS (MODEL D/F/K/L/M) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
FRONT CALIPERS (MODEL D/F/K/L/M) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
0
5930005350
ref: 0
AISIN
CALIPERS ASSY, FRONT LH
€ 250.00
1
5930029810
ref: 1
PISTON SET
5930029810
€ 83.50
2
5930739220
ref: 2
SEAL, PISTON
5930739220
€ 4.50
3
5930839220
ref: 3
BOOT, PISTON
5930839220
€ 4.00
4
5930139841
ref: 4
PAD SET
€ 40.50
5
5937139300
ref: 5
SHIM, PAD
€ 6.00
6
5938439300
ref: 6
CAP, BUSH
€ 4.50
7
5930039890
ref: 7
CARRIER SET,CALIPER
€ 30.00
8
5930339300
ref: 8
BOOT, GUIDE PIN
€ 5.50
9
5938339300
ref: 9
BOOT, BUSH DAST
€ 5.00
10
5938139300
ref: 10
BUSH, CYLINDER
5938139300
€ 8.50
11
5938539300
ref: 11
COLLAR, BUSH
€ 4.50
12
5938239300
ref: 12
BOLT, BUSH
€ 2.50
13
5938639300
ref: 13
SEAL, CYLINDER
5938639300
€ 4.50
14
5931505350
ref: 14
SPRING,PAD NO.1
5931505350
€ 6.50
15
5931705350
ref: 15
SPRING,PAD
5931705350
€ 7.50
16
5912147050
ref: 16
BREATHER
5912147050
€ 11.50
17
5912218410
ref: 17
CAP,BREATHER
5912218410
€ 6.00
18
0211275123
ref: 18
SCREW
€ 2.50
19
0151708307
ref: 19
BOLT 8X30
€ 3.50
20
5931313001
ref: 20
PROTECTOR,CALIPER
5931313001
€ 4.50
