CARBURETOR (MODEL Z/D/F/K)

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

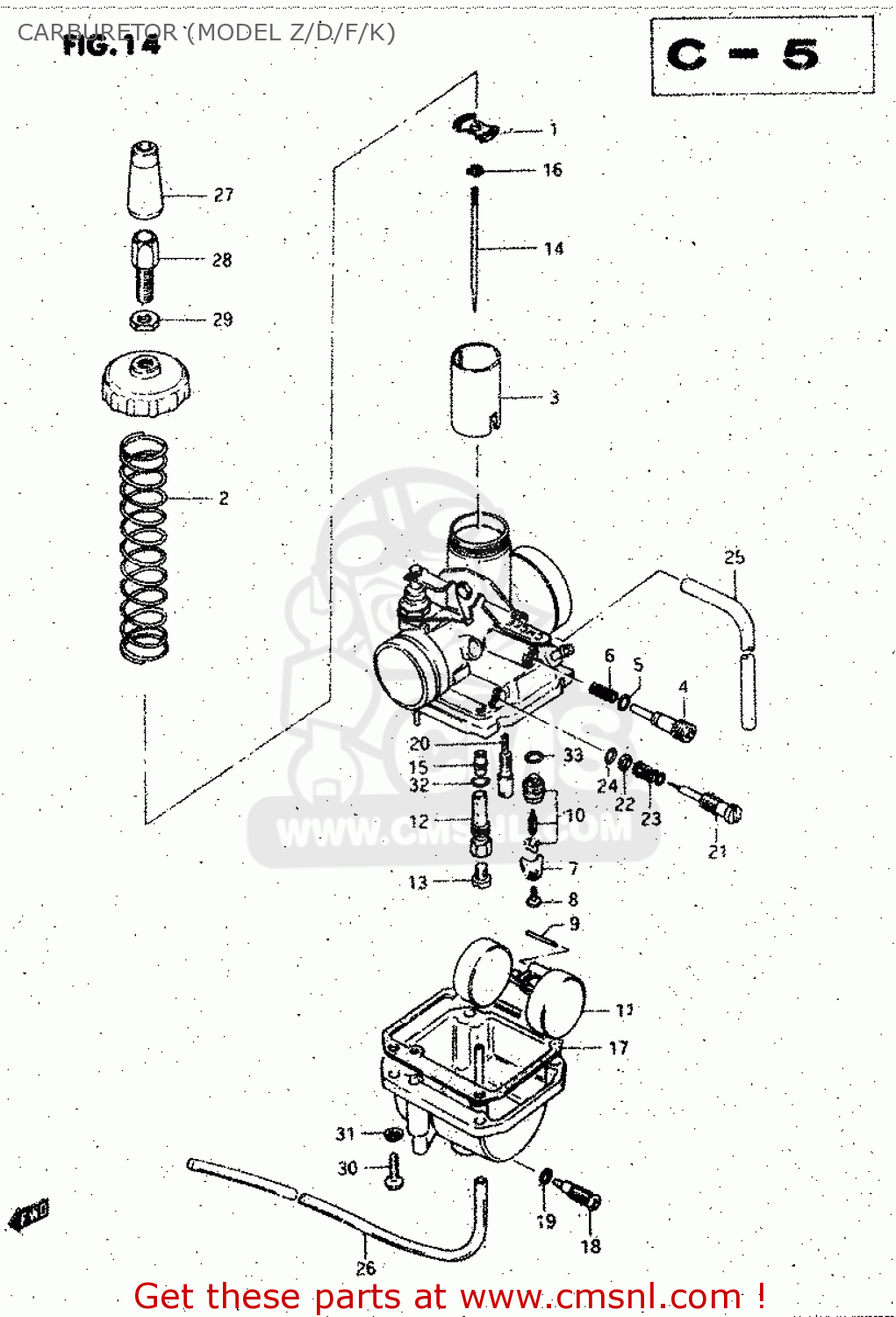

Carburetor (model z/d/f/k) diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

CARBURETOR (MODEL Z/D/F/K) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
CARBURETOR (MODEL Z/D/F/K) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
CARBURETOR (MODEL Z/D/F/K) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
0
1320005320
ref: 0
CARBURETOR ASSY
€ 198.00
1
1358109210
ref: 1
STOPPER,NEEDLE CLIP
1358109210
€ 5.50
2
1357305320
ref: 2
SPRING
1357305320
€ 3.50
3
1355105320
ref: 3
VALVE,THROTTLE
€ 41.00
4
1326736600
ref: 4
SCREW,THROTTLE STOP
1326736600
€ 8.50
5
1329533010
ref: 5
O RING
1329533010
€ 4.50
6
1326835010
ref: 6
SPRING
1326835010
€ 3.00
7
1337346710
ref: 7
PLATE,NEEDLE VALVE FITING
1337346710
€ 4.50
8
0211203066
ref: 8
SCREW
€ 2.00
9
1325401010
ref: 9
PIN,FLOAT
1325401010
€ 3.00
10
1337005320
ref: 10
VALVE ASSY,NEEDLE
1337005320
€ 59.50
11
1325005230
ref: 11
FLOAT
1325005230
€ 24.00
12
1338505320
ref: 12
HOLDER ASSY,JET
1338505320
€ 19.50
13
0949195005
ref: 13
JET,MAIN(95)
0949195005
€ 8.50
14
1338305320
ref: 14
40T38A-3
NEEDLE, JET
1338305320
€ 11.50
15
0949400388
ref: 15
JET,NEEDLE(0-4)
0949400388
€ 13.50
16
1339410010
ref: 16
CLIP
1339410010
€ 4.50
17
1325105320
ref: 17
GASKET (NAS)
1325105320
€ 9.00
18
1324702340
ref: 18
PLUG,DRAIN
1324702340
€ 5.50
19
1327802340
ref: 19
O RING
1327802340
€ 1.50
20
0949220009
ref: 20
JET,PILOT(20)
0949220009
€ 11.00
21
1327947080
ref: 21
SCREW,PILOT AIR
1327947080
€ 11.50
22
1329129300
ref: 22
WASHER
€ 0.00
23
1326847070
ref: 23
SPRING
1326847070
€ 5.00
24
1329529900
ref: 24
O RING,PILOT AIR SCREW
1329529900
€ 4.00
25
0935250823300
ref: 25
ARROW LEFT13683-0532
HOSE
0935250823300
€ 13.00
26
1368337420
ref: 26
L:500ARROW RIGHT360
HOSE
€ 5.50
27
1368116600
ref: 27
CAP,RUBBER
1368116600
€ 7.00
28
1357748110
ref: 28
ADJUSTER,CABLE
1357748110
€ 8.00
29
1366116600
ref: 29
NUT
1366116600
€ 5.00
30
0211204166
ref: 30
SCREW
€ 1.00
31
0832121046
ref: 31
LOCK WASHER
0832121046
€ 2.00
32
1324643010
ref: 32
O RING
1324643010
€ 4.00
33
1337646710
ref: 33
O RING
€ 0.00
