STAND

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

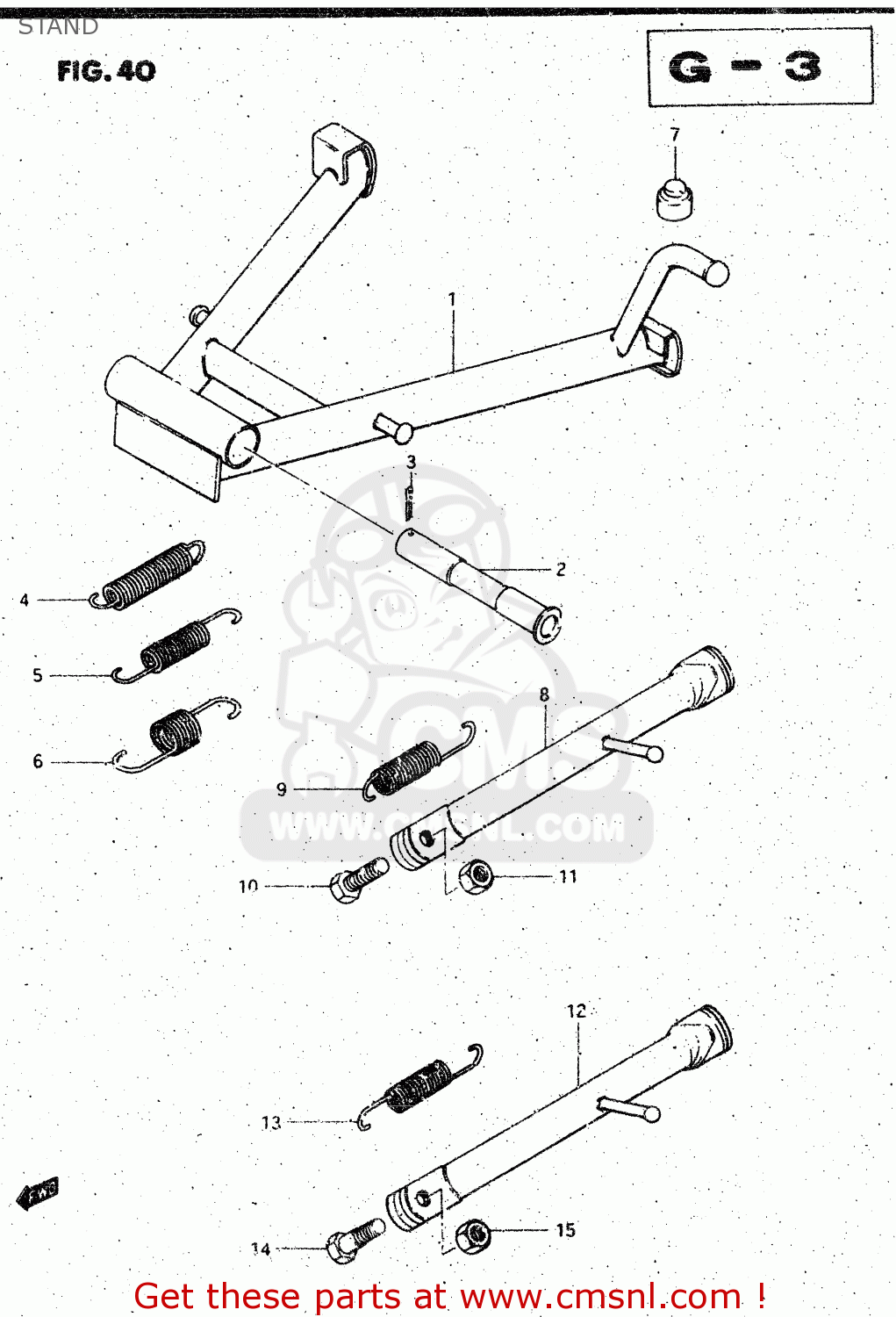

Stand diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

STAND GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

STAND GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

prices are in EUR

ref

part #

description

quantity

1

4210005303
ref: 1

STAND,CTR

€ 70.50

2-1

4221136501
ref: 2-1
MODEL Z/D/F

SHAFT,CENTER STAND

€ 20.00

2-2

4221136502
ref: 2-2
MODEL K/L/M

SHAFT,CENTER STAND

€ 20.00

3-3

4221136504
ref: 3-3
MODEL R

SHAFT,CTR STAND

€ 20.00

3

0411130308
ref: 3

COTTER PIN

€ 1.50

4-1

0944318003
ref: 4-1
MODEL Z/D

SPRING

€ 5.50

4-2

0944318006
ref: 4-2
MODEL F/K/L/M/R

SPRING

€ 5.50

5

0944315013
ref: 5
E15 F.NO.114709~

SPRING

€ 22.50

6

0944322002
ref: 6
E15 F.NO.114709~

SPRING

€ 7.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

4231005300
ref: 8

STAND,PROP

€ 75.50

9

0944317007
ref: 9

SPRING

€ 4.50

10-1

0910010067
ref: 10-1
MODEL Z/D/F/K/L/M

BOLT(10X30)

€ 3.50

10-2

0910010501
ref: 10-2
MODEL R

BOLT(10X30)

€ 2.50

11-1

0831022107
ref: 11-1
MODEL Z/D/F/K/L/M

NUT

€ 2.50

11-2

0914010043
ref: 11-2
MODEL R

NUT

€ 2.00

12

4231005310
ref: 12
E18,E15 F.NO.114709~

STAND,PROP

€ 19.00

13

0944317011
ref: 13
E18,E15 F.NO.114709~

SPRING

€ 9.00

14-1

0911110019
ref: 14-1
E18,E19 F.NO.114709~

BOLT L:30

€ 4.50

14-2

0911110047
ref: 14-2
MODEL R E2

BOLT(10X30)

€ 4.50

15-1

0831022107
ref: 15-1
E18,E15 F.NO.114709~

NUT

€ 2.50

15-2

0914010043
ref: 15-2
MODEL R E2

NUT

€ 2.00
