CYLINDER HEAD

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

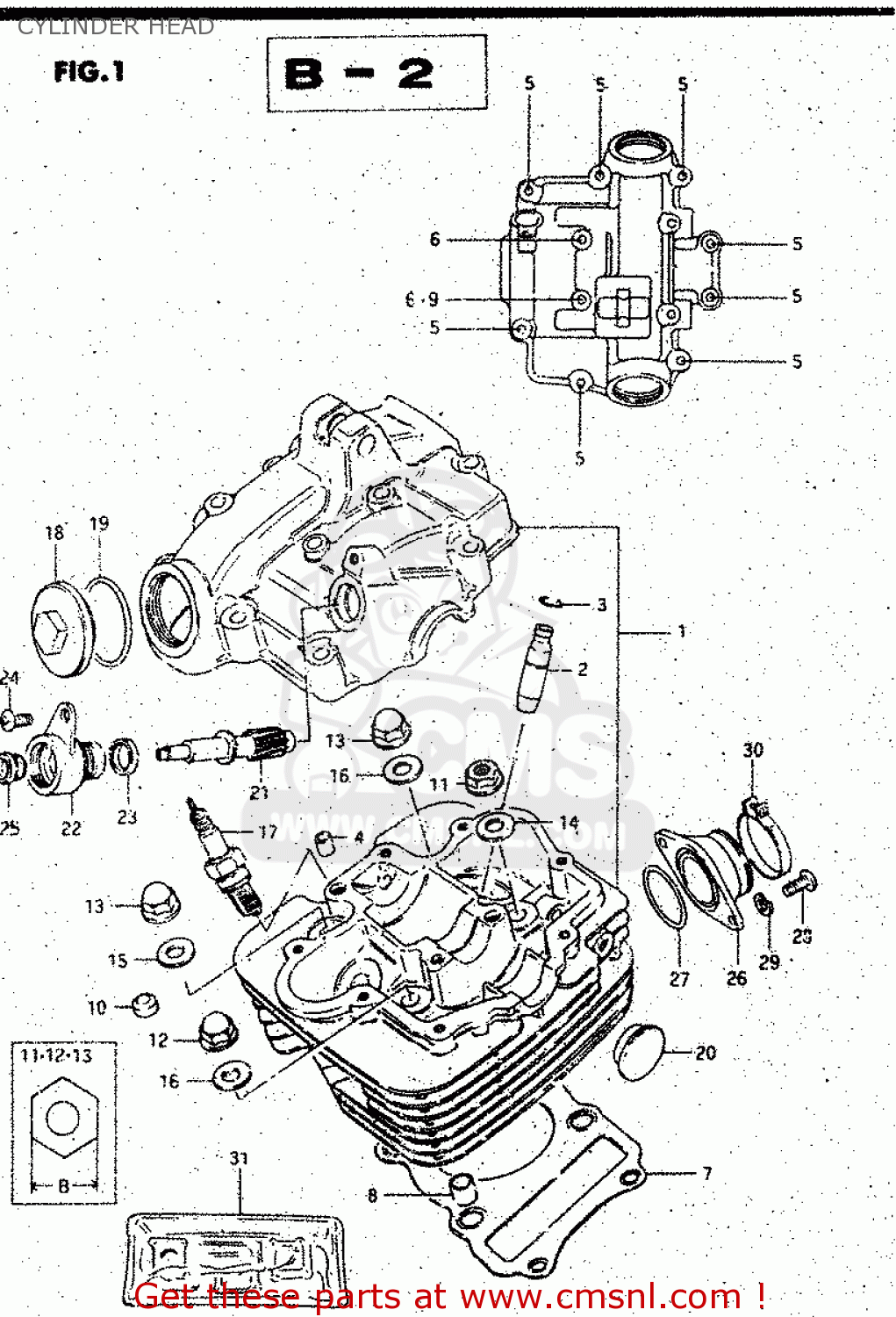

Cylinder head diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

CYLINDER HEAD GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
CYLINDER HEAD GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
CYLINDER HEAD GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1-1
1110005261
ref: 1-1
MODEL Z,ARROW RIGHT1
HEAD ASSEMBLY,CYLINDER
€ 727.50
1-2
1110009270
ref: 1-2
MODEL D,ARROW RIGHT1
HEAD ASSY, CYLINDER
€ 0.00
1-3
1110005272
ref: 1-3
MODEL F/K/L/M/R
HEAD ASSY,CYLINDER
€ 532.50
2
1111505270
ref: 2
GUIDE,VALVE
1111505270
€ 18.50
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5-1
0151706358
ref: 5-1
MODEL Z
BOLT 6X35
0151706358
€ 2.50
5-2
0151706354
ref: 5-2
MODEL D/F/K/L/M
BOLT 6X35
€ 2.50
5-3
0155006353
ref: 5-3
MODEL R
BOLT
0155006353
€ 2.50
6-1
0151706608
ref: 6-1
MODEL Z
BOLT (6X60)
€ 2.50
6-2
0151706605
ref: 6-2
MODEL D/F/K/L/M
BOLT ,6X60
€ 2.50
6-3
0155006603
ref: 6-3
MODEL R
BOLT
0155006603
€ 2.50
7
1114105201
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114105201
€ 7.50
8
0421111169
ref: 8
PIN
0421111169
€ 2.00
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
10
1115145000
ref: 10
PAD,CYLINDER HEAD
1115145000
€ 3.00
11-1
0915908031
ref: 11-1
NUT
0915908031
€ 2.00
11-2
0831616088
ref: 11-2
NUT
0831616088
€ 2.50
11-3
0831610083
ref: 11-3
MODEL R
NUT
0831610083
€ 3.00
12-1
0915908029
ref: 12-1
NUT
0915908029
€ 6.00
12-2
0915908074
ref: 12-2
NUT
0915908074
€ 7.00
13-1
0915908035
ref: 13-1
NUT (8MM)
€ 6.00
13-2
0915908064
ref: 13-2
NUT (8MM)
€ 7.00
13-3
0915908074
ref: 13-3
MODEL R
NUT
0915908074
€ 7.00
14
0916008039
ref: 14
WASHER(8.5X19X2.3)
0916008039
€ 2.00
15-1
0916008053
ref: 15-1
MODEL Z/D/F/K/L/M
WASHER (8.5X19X2.3)
0916008053
€ 2.00
15-2
0916006039
ref: 15-2
MODEL R
WASHER (6.5X18X1.6)
0916006039
€ 2.00
16-1
0916808012
ref: 16-1
MODEL Z/D/F/K/L/M
GASKET (NAS)
0916808012
€ 4.50
16-2
0916808021
ref: 16-2
MODEL R
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
17-1
0948200144
ref: 17-1
SPARK PLUG D8EA
0948200144
€ 3.50
17-2
0948200145
ref: 17-2
SPARK PLUG X24ES-U
€ 3.50
17-3
0948200399
ref: 17-3
E2,E4,E6,E15,E17,E18
PLUG,SPARK(DR8EA)
0948200399
€ 3.50
17-4
0948200223
ref: 17-4
E2,E4,E6,E15,E17,E18
PLUG,SPARK(X24ESR-U)
€ 3.50
18-1
1117537111
ref: 18-1
MODEL Z
CAP,INSPECTION HOLE
1117537111
€ 14.00
18-2
1117532400
ref: 18-2
MODEL D/F/K/L/M
CAP,INSPECTION
1117532400
€ 9.50
18-3
1117542A00
ref: 18-3
MODEL R
CAP,INSPECTION
1117542A00
€ 9.50
19
0928030001
ref: 19
O RING(D:3,ID:29.5)
0928030001
€ 2.00
20
0924122002
ref: 20
PLUG(OD:22.5)
0924122002
€ 5.50
21
2643105201
ref: 21
GEAR,TACHOMETER DRIVEN
2643105201
€ 21.50
22
2644149000
ref: 22
SLEEVE,TACHOMETER DRIVE GEAR
2644149000
€ 18.00
23
2645145000A
ref: 23
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
24
0912805101
ref: 24
SCREW(5X12)
0912805101
€ 1.50
25
0928905002
ref: 25
SEAL,OIL(5X12X8)
0928905002
€ 11.00
26-1
1311005310
ref: 26-1
MODEL Z/D/F/K
PIPE, INTAKE
€ 25.50
26-2
1311005300
ref: 26-2
GS125ESK/ESL E24 MOD
PIPE,INTAKE
1311005300
€ 33.50
27
0928032006
ref: 27
O RING(D:2.4,ID:31.7)
0928032006
€ 2.50
28-1
0211206164
ref: 28-1
MODEL Z/D/F/K/L/M
SCREW
€ 2.00
28-2
0211236163
ref: 28-2
MODEL R
SCREW
0211236163
€ 2.50
29
0832121064
ref: 29
MODEL Z/D/F/K/L/M
WASHER,LOCK
0832121064
€ 2.00
30-1
0940246208
ref: 30-1
MODEL Z/D/F/K
CLAMP
0940246208
€ 4.50
30-2
0940244208
ref: 30-2
GS125ESK/ESL E24 MOD
CLAMP
0940244208
€ 5.50
31-1
1140105861
ref: 31-1
GASKET SET (NAS)
€ 79.50
31-2
1140005853
ref: 31-2
GS125Z/D/UR
GASKET SET
€ 47.50
