REAR COMBINATION LAMP

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

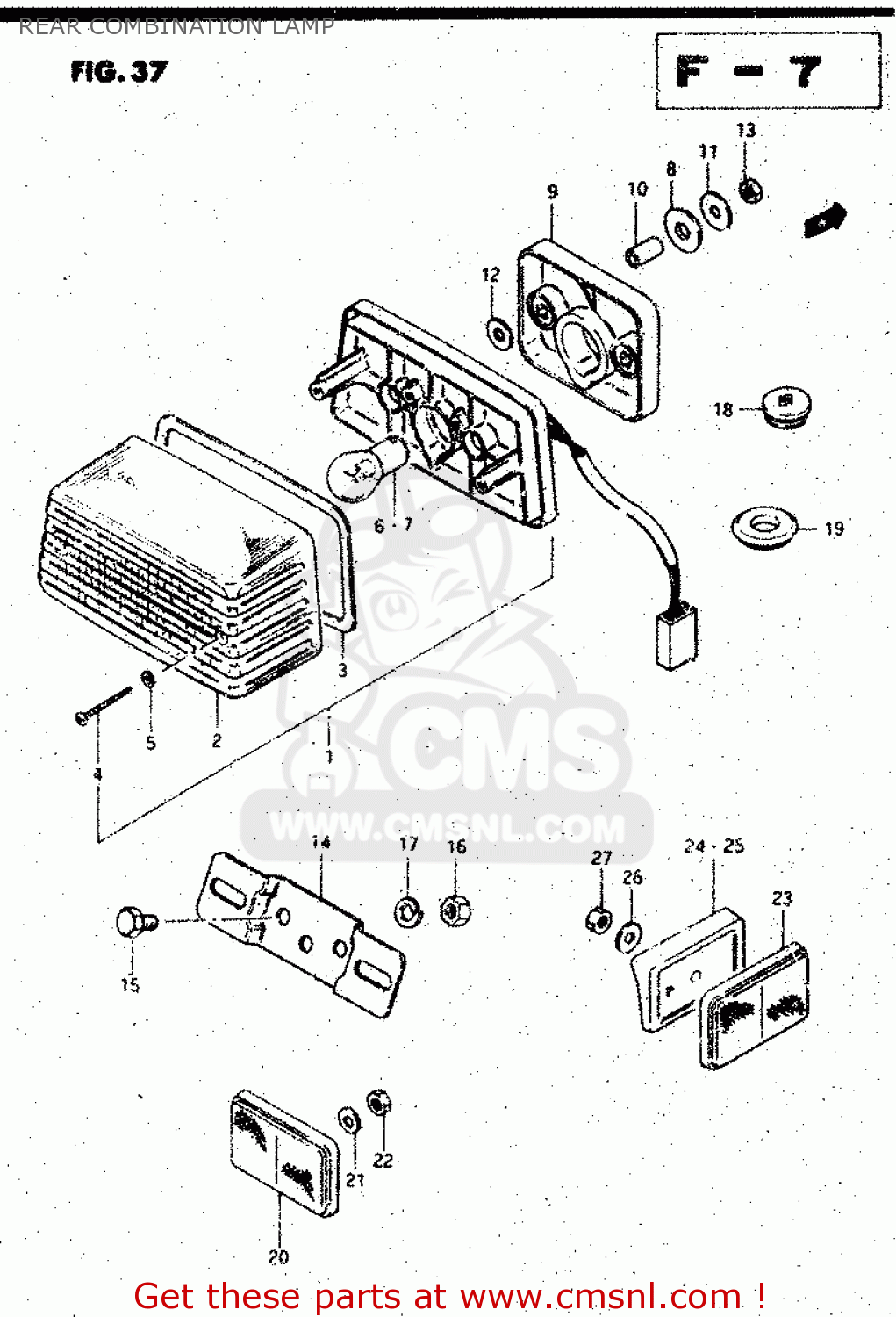

Rear combination lamp diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

REAR COMBINATION LAMP GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
REAR COMBINATION LAMP GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
REAR COMBINATION LAMP GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1-1
3571005300999
ref: 1-1
E1,E6,E24,E30,E71
LAMP ASSY,RR COMBINATION
€ 73.50
1-2
3571005380
ref: 1-2
E4,E15,E17,E18,E39 M
LAMP ASSY, REAR COMBINATION
€ 92.00
1-3
3571005361
ref: 1-3
E34
LAMP ASSY, REAR COMBINATION
€ 0.00
1-4
3571005340
ref: 1-4
MODEL K/M/R E2
LAMP ASSY,REAR COMBINATION
€ 92.00
2-1
3571217300
ref: 2-1
E1,E6,E24,E30,E71
LENS
3571217300
€ 18.00
2-2
3571236511
ref: 2-2
E4,E15,E17,E18,E39 M
LENS
3571236511
€ 26.00
2-3
3571205361
ref: 2-3
E34
LENS
€ 0.00
2-4
3571239370
ref: 2-4
MODEL K/M/R E2
LENS,RR COMBINATION LAMP
€ 33.00
3
3571335300
ref: 3
GASKET (NAS)
€ 0.00
4
0321204359
ref: 4
SCREW
0321204359
€ 0.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112046
ref: 6
E2,E4,E15,E17,E18,E3
BULB(12V21/5W)
0947112046
€ 1.50
7-1
0947112035
ref: 7-1
E1,E6,E30,E71,MODEL
BULB(12V23W)
0947112035
€ 5.50
7-2
0947112046
ref: 7-2
MODEL K/L/M E24
BULB(12V21/5W)
0947112046
€ 1.50
8
3576426451
ref: 8
CUSHION,RR COMBINATION LAMP
€ 0.00
9
3576505300
ref: 9
CUSHION,RR COMB LAMP NO.1
€ 0.00
10
0918006035
ref: 10
SPACER (6.1X8X12)
0918006035
€ 2.50
11
0916005011
ref: 11
WASHER (5.5X20X1.2)
€ 2.00
12-1
0916005017
ref: 12-1
MODEL Z/D/F/K/L/M
WASHER (5.5X16X1.2)
0916005017
€ 2.50
12-2
0916005037
ref: 12-2
MODEL R
WASHER(5.5X16X1.2)
0916005037
€ 1.50
13-1
0831011056
ref: 13-1
MODEL Z/D/F/K/L/M
NUT
€ 2.50
13-2
0831000053
ref: 13-2
MODEL R
NUT
€ 2.50
14
3592705300
ref: 14
BRACKET,LICENSE PLATE
€ 7.00
15-1
0151706164
ref: 15-1
MODEL Z/D/F/K/L/M
BOLT
€ 2.50
15-2
0155006163
ref: 15-2
MODEL R
BOLT
0155006163
€ 2.50
16-1
0831012066
ref: 16-1
MODEL Z/D/F/K/L/M
NUT
0831012066
€ 2.00
16-2
0831000063
ref: 16-2
MODEL R
NUT 6MM
0831000063
€ 2.00
17-1
0832121066
ref: 17-1
MODEL Z/D/F/K/L/M
WASHER,LOCK
0832121066
€ 2.00
17-2
0832101063
ref: 17-2
MODEL R
LOCK WASHER
0832101063
€ 2.00
18
0925020006
ref: 18
CAP(OD:24)
0925020006
€ 3.00
19
0930809004
ref: 19
GROMMET
€ 0.00
20-1
3597017300
ref: 20-1
RR35990
REFLEX REFLECTOR,RR
3597017300
€ 16.50
20-2
3597001A10
ref: 20-2
RR018
REFLEX REFLECTOR,RR
3597001A10
€ 85.00
21
0832221056
ref: 21
MODEL Z/D/F/K/L/M
WASHER
€ 2.50
22-1
0831011056
ref: 22-1
MODEL Z/D/F/K/L/M
NUT
€ 2.50
22-2
0831610053
ref: 22-2
MODEL R
NUT
0831610053
€ 2.50
23
3595049410
ref: 23
E39
REFLECTOR,REFLEX
€ 0.00
24
3597705300
ref: 24
E39
SPACER, RH
€ 0.00
25
3597805300
ref: 25
E39
SPACER, LH
€ 0.00
26
0916005013
ref: 26
E39
WASHER(5.2X16X1)
0916005013
€ 1.50
27
0831011056
ref: 27
E39
NUT
€ 2.50
