STARTING MOTOR (GS125ESZ/EZ/ESD/ESF/ESK/ESL)

GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

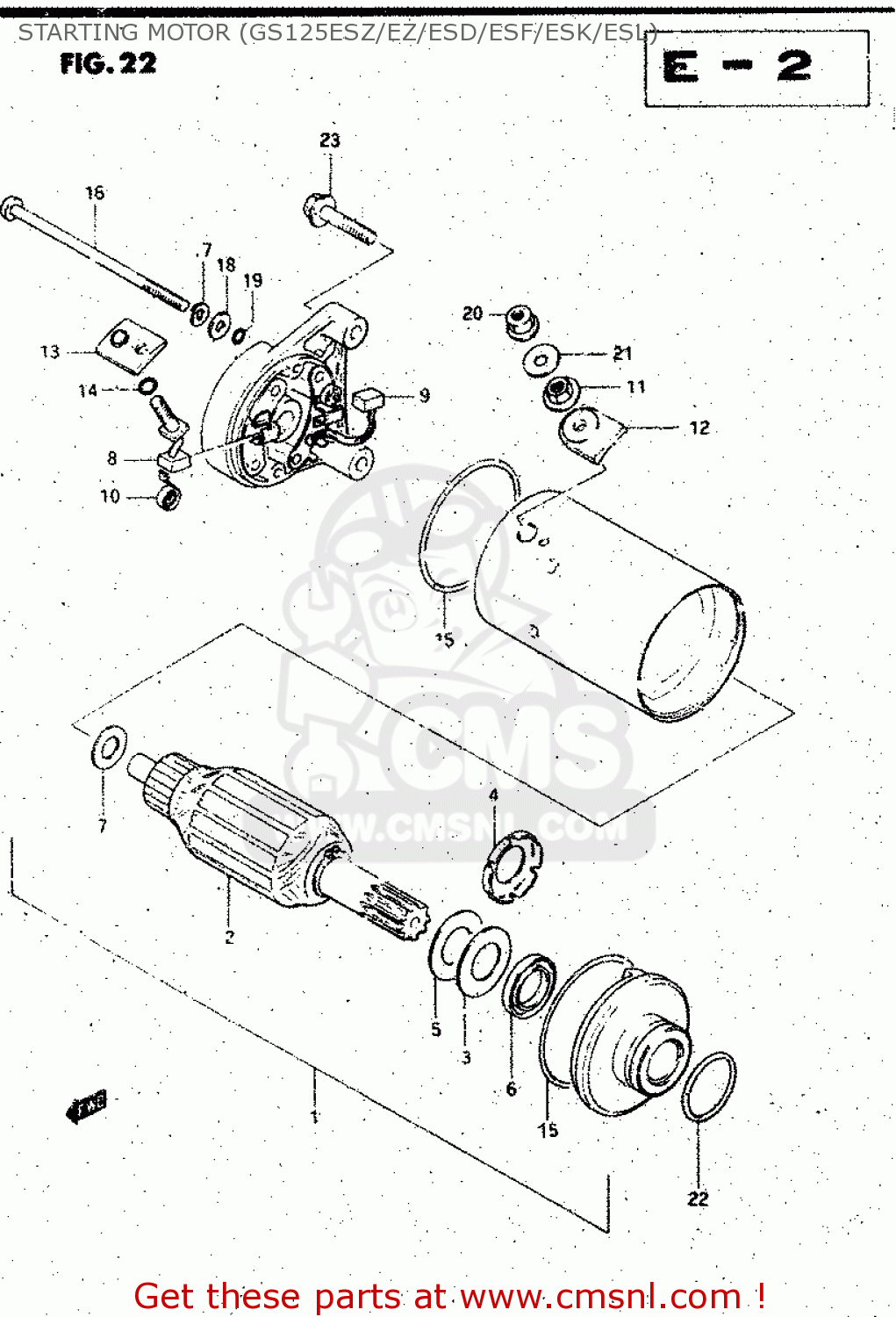

Starting motor (gs125esz/ez/esd/esf/esk/esl) diagram GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)

STARTING MOTOR (GS125ESZ/EZ/ESD/ESF/ESK/ESL) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
STARTING MOTOR (GS125ESZ/EZ/ESD/ESF/ESK/ESL) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
STARTING MOTOR (GS125ESZ/EZ/ESD/ESF/ESK/ESL) GS125ES 1991 (M) GENERAL EXP UNITED KINDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1-1
3110005300
ref: 1-1
MODEL Z,ARROW RIGHT3
MOTOR ASSEMBLY,STARTING
€ 899.00
1-2
3110005300H17
ref: 1-2
MODEL E17,ARROW RIGH
MOTOR ASSEMBLY,STARTING
€ 899.00
1-3
3110005310H17
ref: 1-3
MODEL D/F/K/L ARROW
MOTOR ASSY, STARTING
€ 899.00
2
3131110201H17
ref: 2
ARMATURE
€ 167.00
3
3136110200
ref: 3
RING,SNAP
3136110200
€ 2.50
4
3136101400
ref: 4
SHIM,ARMATURE
€ 0.00
5
3136138300
ref: 5
SHIM
3136138300
€ 1.50
6
3115343400
ref: 6
SEAL,OIL
3115343400
€ 19.50
7
3136147010
ref: 7
SHIM,ARMATURE
€ 3.50
8
3113005300
ref: 8
BRUSH(+)
3113005300
€ 13.00
9
3113110200
ref: 9
BRUSH(-)
3113110200
€ 8.50
10
3113565010
ref: 10
SPRING
3113565010
€ 3.00
11
0831000067
ref: 11
ARROW LEFT08310-2206
NUT
0831000067
€ 2.50
12
3117205300
ref: 12
BUSH,A
€ 0.00
13
3117105300
ref: 13
BUSH,B
€ 0.00
14
3114338300
ref: 14
O RING
3114338300
€ 3.50
15
3126405300
ref: 15
O-RING
€ 9.00
16-1
3128105300
ref: 16-1
MODEL Z/K/L ARROW LE
BOLT
€ 8.50
16-2
3128188C00
ref: 16-2
MODEL D/F,ARROW RIGH
BOLT
3128188C00
€ 8.50
17
0832121057
ref: 17
LOCK WASHER
0832121057
€ 2.00
18-1
3116138300
ref: 18-1
MODEL Z/K/L
WASHER
3116138300
€ 2.50
18-2
3116105310
ref: 18-2
MODEL D/F,ARROW RIGH
WASHER
€ 2.50
19
3115638300
ref: 19
O RING
3115638300
€ 3.00
20
0836135066
ref: 20
NUT
€ 2.00
21
0916006003
ref: 21
WASHER (6.7X16X1.8)
€ 2.00
22
0928024003
ref: 22
O RING(D:3,ID:24.5)
0928024003
€ 2.00
23-1
0154706357
ref: 23-1
MODEL Z
BOLT
0154706357
€ 2.50
23-2
0154706354
ref: 23-2
MODEL D/F/K/L
BOLT 6X35
0154706354
€ 3.00
