CAM CHAIN
GS450SU 1988 (J) GERMANY (E22)

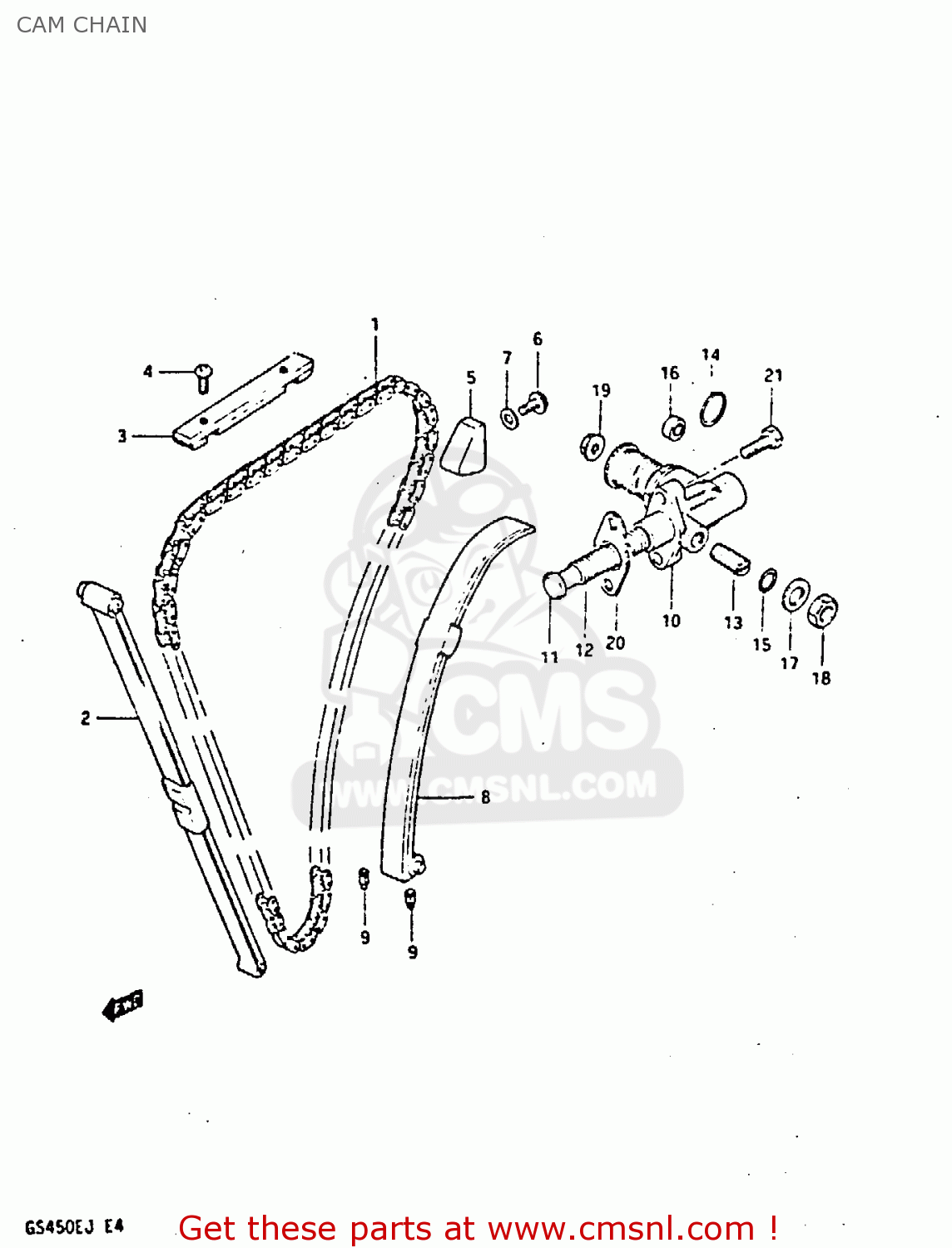

Cam chain diagram GS450SU 1988 (J) GERMANY (E22)
CAM CHAIN GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1276045040
ref: 1
CHAIN,CAMSHAFT DRIVE(120L)
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
€ 33.50
3
1278247040
ref: 3
GUIDE,CAM CHAIN NO.3
€ 89.50
4
0211205128
ref: 4
SCREW
€ 2.50
5
1279145040
ref: 5
GUIDE,CAM CHAIN
€ 8.50
6
0151706125
ref: 6
BOLT 6X12
€ 2.50
7
0916806023
ref: 7
FROM 09168-06015
GASKET(5.8X13X1.2) (NAS)
€ 2.00
8
1281044150
ref: 8
TENSIONER,CAM CHAIN
€ 64.00
9
1281444101
ref: 9
CUSHION,CAM CHAIN TENSIONER
€ 8.50
10
1283047011
ref: 10
ADJUSTER ASSEMBLY,TENSIONER
€ 167.00
11
1283347001
ref: 11
ROD,PUSH
€ 25.00
12
0944012017
ref: 12
SPRING
€ 2.50
13
1283845010
ref: 13
SCREW,TENSIONER ADJUST
€ 6.00
14
0928021013
ref: 14
O RING(D:2.4,ID:20.8)
€ 4.50
15
0928006005
ref: 15
O RING(D:1.9,ID:5.7)
€ 2.50
16
0928410006
ref: 16
SEAL,OIL(10X16X4)
€ 4.00
17
0832211084
ref: 17
WASHER
€ 1.50
18
0831011085
ref: 18
NUT
€ 1.50
19
0831616064
ref: 19
NUT 6MM
€ 2.50
20
1283731310
ref: 20
GASKET,TENSIONER ADJUSTER (MCA)
€ 7.50
21
0912806022
ref: 21
SCREW
€ 2.50
