COWLING
GS450SU 1988 (J) GERMANY (E22)

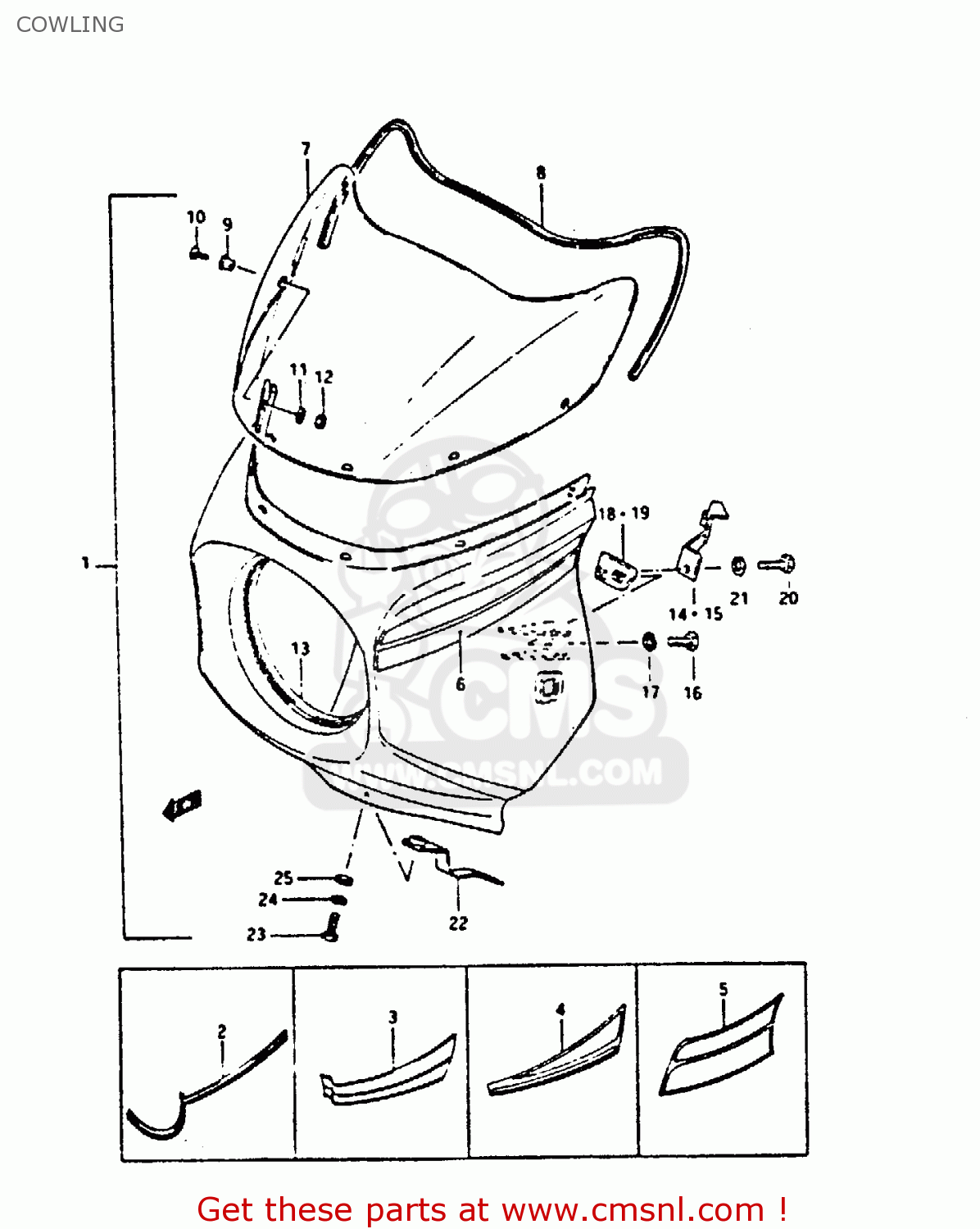

Cowling diagram GS450SU 1988 (J) GERMANY (E22)
COWLING GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
944004446087P
ref: 1-1
MODEL E
COWLING ASSY (WHITE/RED)
€ 345.50
1-2
944004446086R
ref: 1-2
MODEL E
COWLING ASSY (WHITE/BLUE)
€ 345.50
1-3
94400444907PE
ref: 1-3
MODEL F
COWLING ASSY (WHITE/RED)
€ 345.50
1-4
94400444907PD
ref: 1-4
MODEL F
COWLING ASSY (WHITE/BLUE)
€ 345.50
1-5
94500444307JK
ref: 1-5
MODEL G
COWLING ASSY (WHITE/RED)
€ 345.50
1-6
94500444307PD
ref: 1-6
MODEL G
COWLING ASSY (WHITE/BLUE)
€ 345.50
1-7
945004445007P
ref: 1-7
MODEL H
COWLING ASSY (RED)
€ 345.50
1-8
945004445006X
ref: 1-8
MODEL H
COWLING ASSY (WHITE)
€ 345.50
1-9
9450030C00019
ref: 1-9
MODEL J
COWLING ASSY (BLACK)
€ 345.50
1-10
9450030C0006X
ref: 1-10
MODEL J
COWLING ASSY (WHITE)
€ 345.50
2-1
681904441087P
ref: 2-1
MODEL E, FOR 87P
TAPE SET
€ 0.00
2-2
681904441086R
ref: 2-2
MODEL E, FOR 86R
TAPE SET
€ 0.00
3-1
68190444207PP
ref: 3-1
MODEL F, FOR 7PE
TAPE SET
€ 0.00
3-2
68190444207PN
ref: 3-2
MODEL F, FOR 7PD
TAPE SET
€ 0.00
4-1
681904443065G
ref: 4-1
MODEL G, FOR 7JK
TAPE SET
€ 0.00
4-2
681904443083Y
ref: 4-2
MODEL G, FOR 7PD
TAPE SET
€ 0.00
5-1
68190444409KT
ref: 5-1
MODEL H FOR 07P
TAPE SET
€ 0.00
5-2
68190444409KJ
ref: 5-2
MODEL H FOR 22R
TAPE SET
€ 0.00
6-1
6819030C0066P
ref: 6-1
MODEL J, FOR 019
TAPE SET
€ 0.00
6-2
6819030C007YA
ref: 6-2
MODEL J, FOR 06X
TAPE SET
€ 0.00
7-1
9461144400
ref: 7-1
MODEL E/F/G/H
WINDOW
€ 238.00
7-2
9461144410
ref: 7-2
MODEL J
WINDOW
€ 238.00
8
9463144110
ref: 8
L:1920@r1860
MOLD,COWLING
€ 18.00
9
0932005008
ref: 9
CUSHION
€ 5.00
10
0214205164
ref: 10
SCREW
€ 2.50
11
0832221055
ref: 11
WASHER,5MM
€ 2.50
12
0831921055
ref: 12
NUT 8MM
€ 1.50
13
9459144400
ref: 13
MOLDING,HEADLAMP GRILL
€ 11.50
14
9451044400
ref: 14
BRACKET,COWLING RH
€ 8.50
15
9452044400
ref: 15
BRACKET,COWLING LH
€ 7.00
16
0110706125
ref: 16
BOLT
€ 2.00
17
0832121064
ref: 17
WASHER,LOCK
€ 2.00
18
9453044401
ref: 18
BRACKET, FITTING RH
€ 5.50
19
9456044401
ref: 19
BRACKET, FITTING LH
€ 4.00
20
0110706165
ref: 20
BOLT 6X16
€ 2.00
21
0916006039
ref: 21
WASHER (6.5X18X1.6)
€ 2.00
22
9455044400
ref: 22
BRACKET, LOWER
€ 7.00
23
0110706125
ref: 23
BOLT
€ 2.00
24
0832121064
ref: 24
WASHER,LOCK
€ 2.00
25
0832221064
ref: 25
WASHER
€ 2.00
