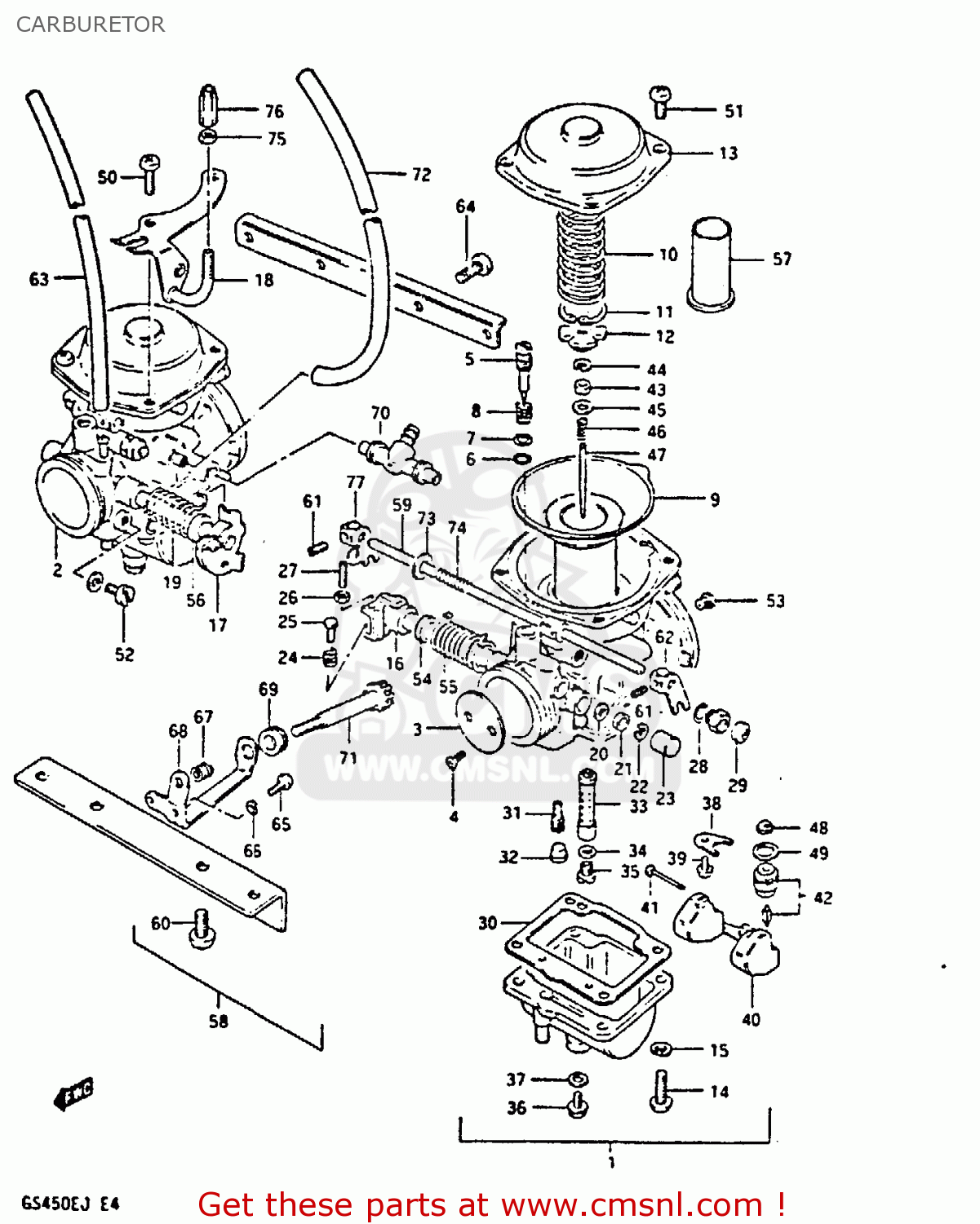

CARBURETOR

ref

part #

description

quantity

1-1

1320144470
ref: 1-1

CARBURETOR ASSY, LH

€ 0.00

1-2

1320130C00
ref: 1-2
GS450EUJ/SUJ E22

CARBURETOR ASSY, RH

€ 0.00

2-1

1320244470
ref: 2-1

CARBURETOR ASSY, RH

€ 0.00

2-2

1320230C00
ref: 2-2
GS450EUJ/SUJ E22

CARBURETOR ASSY, LH

€ 0.00

3

1355144410
ref: 3

VALVE, THROTTLE

€ 0.00

4

1360444080
ref: 4

SCREW

€ 3.50

5

1327947080
ref: 5

SCREW,PILOT AIR

€ 11.50

6

1329529900
ref: 6

O RING,PILOT AIR SCREW

€ 4.00

7

1329129900
ref: 7

WASHER

€ 2.00

8

1326847070
ref: 8

SPRING

€ 5.00

9

1350038310
ref: 9

DIAPHRAGM ASSY

€ 168.00

10

1350344400
ref: 10

SPRING

€ 7.50

11

1358144030
ref: 11

E RING

€ 6.50

12

1338944030
ref: 12

HOLDER,GUIDE

€ 10.50

13

1350238300
ref: 13

COVER

€ 22.00

14

0211205166
ref: 14

SCREW

€ 2.00

15

0832121056
ref: 15

LOCK WASHER

€ 3.00

16

1355044210
ref: 16
LH

SHAFT ASSEMBLY

€ 0.00

17

1355044220
ref: 17
RH

SHAFT,THROTTLE

€ 0.00

18

1362744460
ref: 18
RH

BRACKET,THROTTLE CABLE

€ 11.50

19

1357344210
ref: 19
RH

SPRING

€ 0.00

20

1365151010
ref: 20

SEAL

€ 4.00

21

1355747070
ref: 21

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

22

1361744080
ref: 22

E RING

€ 3.50

23

1357847070
ref: 23

CAP

€ 5.50

24

1326844110
ref: 24
LH

SPRING,THROTTLE SCREW

€ 0.00

25

1356344110
ref: 25
LH

PIN,THROTTLE LEVER

€ 0.00

26

1360747070
ref: 26
LH

NUT

€ 4.00

27

1360547080
ref: 27
LH

SCREW

€ 7.00

28

1327847090
ref: 28

O RING

€ 2.00

29

1368231210
ref: 29

CAP,STARTER VALVE

€ 5.00

30

1325144080
ref: 30

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

31

0949245016
ref: 31

JET,PILOT(45)

€ 12.00

32

1335744080
ref: 32

PLUG,NEEDLE JET

€ 4.50

33

0949400357
ref: 33

JET,NEEDLE(R-0)

€ 16.50

34

1333244080
ref: 34

WASHER,NEEDLE NOZZLE

€ 2.50

35

0949124016
ref: 35

JET,MAIN(120)

€ 11.50

36

1324744080
ref: 36

PLUG,DRAIN

€ 9.50

37

1324644080
ref: 37

GASKET (NAS)

€ 3.50

38

1337311400
ref: 38

PLATE,NEEDLE VALVE FITING

€ 7.00

39

0211204066
ref: 39

SCREW

€ 2.00

40

1325044080
ref: 40

FLOAT

€ 31.00

41

1325492311
ref: 41

PIN,FLOAT

€ 2.00

42

1337044500
ref: 42

VALVE ASSY,NEEDLE

€ 40.50

43

1338747010
ref: 43

RING

€ 7.50

44

1339410010
ref: 44

CLIP

€ 4.50

45

1338247010
ref: 45

WASHER,JET NEEDLE

€ 3.00

46

1338847010
ref: 46

SPRING

€ 7.00

47

1338344410
ref: 47
50*85-3

NEEDLE, JET

€ 11.50

48

1337684110
ref: 48

FILTER

€ 6.50

49

1337444080
ref: 49

O-RING,NEEDLE VALVE

€ 6.00

50

0211205106
ref: 50
RH

SCREW 5X10

€ 2.00

51

0211205086
ref: 51
LH:4, RH:2

SCREW

€ 2.00

52

1360573000
ref: 52
RH

SCREW

€ 10.50

53

0949327001
ref: 53

JET,AIR(135)

€ 11.00

54

1338744200
ref: 54
LH

SPACER,THROTTLE SHAFT

€ 0.00

55

1357344200
ref: 55
LH

SPRING

€ 0.00

56

1338744210
ref: 56
RH

SPACER,THROTTLE SHAFT

€ 0.00

57

1348530C00
ref: 57
GS450EUJ/SUJ E22

RING

€ 15.00

58

1321044460
ref: 58

FLANGE ASSEMBLY,CARBURETOR

€ 185.00

59

1341044460
ref: 59

SHAFT,STARTER

€ 19.00

60

0211206126
ref: 60

SCREW

€ 1.50

61

1360547070
ref: 61

SCREW

€ 5.50

62

1342244080
ref: 62

LEVER

€ 10.00

63

1368335420
ref: 63
L:600@r240

HOSE 4.5X8X600

€ 14.00

64

0211205126
ref: 64

SCREW 5X12

€ 1.50

65

0211205086
ref: 65

SCREW

€ 2.00

66

0832121056
ref: 66

LOCK WASHER

€ 3.00

67

1327144220
ref: 67

SPRING,THROTTLE ADJUST

€ 3.50

68

1362144210
ref: 68

BRACKET,THROTTLE ADJUST

€ 0.00

69

1368116600
ref: 69

CAP,RUBBER

€ 7.00

70

1368511400
ref: 70

NIPPLE,CARBURETOR

€ 19.50

71

1326747070
ref: 71

SCREW

€ 21.00

72

1368422A00
ref: 72
L:550@r350

HOSE

€ 13.00

73

1342744500
ref: 73

SPRING

€ 0.00

74

1343744500
ref: 74

SPRING,STARTER

€ 0.00

75

1366103010
ref: 75

NUT

€ 3.50

76

1357798011
ref: 76

ADJUSTER

€ 0.00

77

1342244500
ref: 77

LEVER,STARTER

€ 16.00
