FRONT DAMPER (MODEL J)
GS450SU 1988 (J) GERMANY (E22)

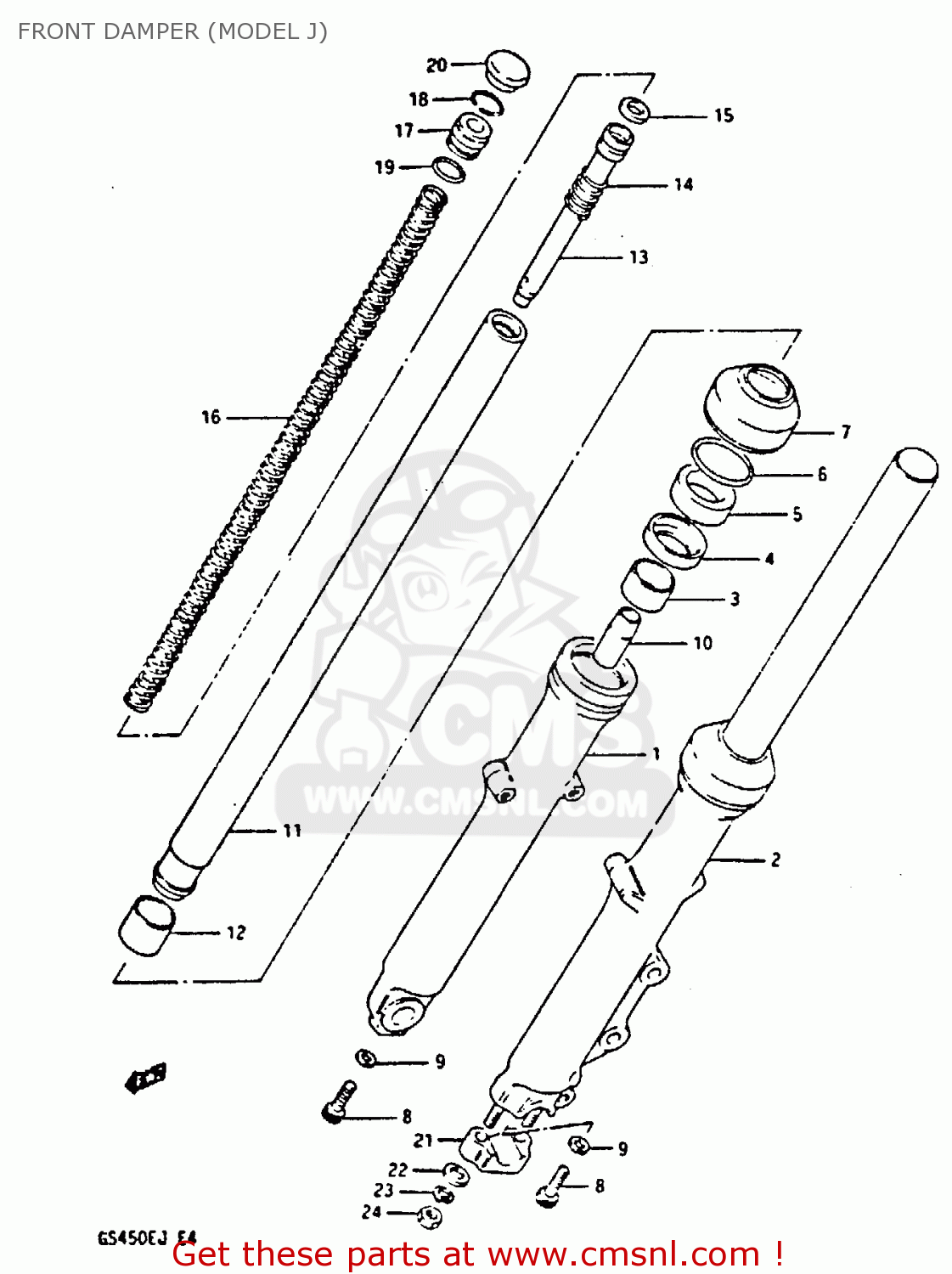

Front damper (model j) diagram GS450SU 1988 (J) GERMANY (E22)
FRONT DAMPER (MODEL J) GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
5110330C00
ref: 0
DAMPER ASSY, RH
€ 0.00
0
5110430C00
ref: 0
DAMPER ASSY, LH
€ 0.00
1
5113130C00
ref: 1
OUTER TUBE, RH
€ 0.00
2
5114030C00
ref: 2
OUTER TUBE, LH
€ 261.00
3
5115211420
ref: 3
BUSH,GUIDE
€ 16.50
4
5116844030
ref: 4
SPACER,OIL SEAL
€ 4.50
5
5115302B00
ref: 5
SEAL,OIL
€ 15.00
6
5115602B00
ref: 6
RING,OIL SEAL STOPPER
€ 4.50
7
5157137310
ref: 7
DUST SEAL
€ 22.00
8
5114748130
ref: 8
BOLT(8X27)
€ 3.50
9
5114836011
ref: 9
GASKET (NAS)
€ 4.00
10
5119548000
ref: 10
PIECE,OIL LOCK
€ 8.50
11
5111044500
ref: 11
TUBE,FORK,INNER
€ 146.00
12
5112111420
ref: 12
BUSH
€ 16.50
13
5114644110
ref: 13
CYLINDER,FRONT FORK
€ 42.00
14
5117736030
ref: 14
SPRING,REBOUND
€ 4.50
15
5119633130
ref: 15
RING,PISTON
€ 7.50
16
5117111900
ref: 16
SPRING,FRONT FORK
€ 43.50
17
5117548500
ref: 17
SEAT,SPRING
€ 9.00
18
5116948500
ref: 18
RING,STOPPER
€ 2.00
19
5118133131
ref: 19
O RING
€ 5.00
20
5118944301
ref: 20
CAP,FRONT FORK
€ 7.00
21
5113231030
ref: 21
HOLDER,AXLE
€ 31.50
22
0832221088
ref: 22
WASHER
€ 2.00
23
0832121088
ref: 23
LOCK WASHER
€ 2.00
24
0831012088
ref: 24
NUT
€ 2.00
