CRANKCASE
GS450SU 1988 (J) GERMANY (E22)

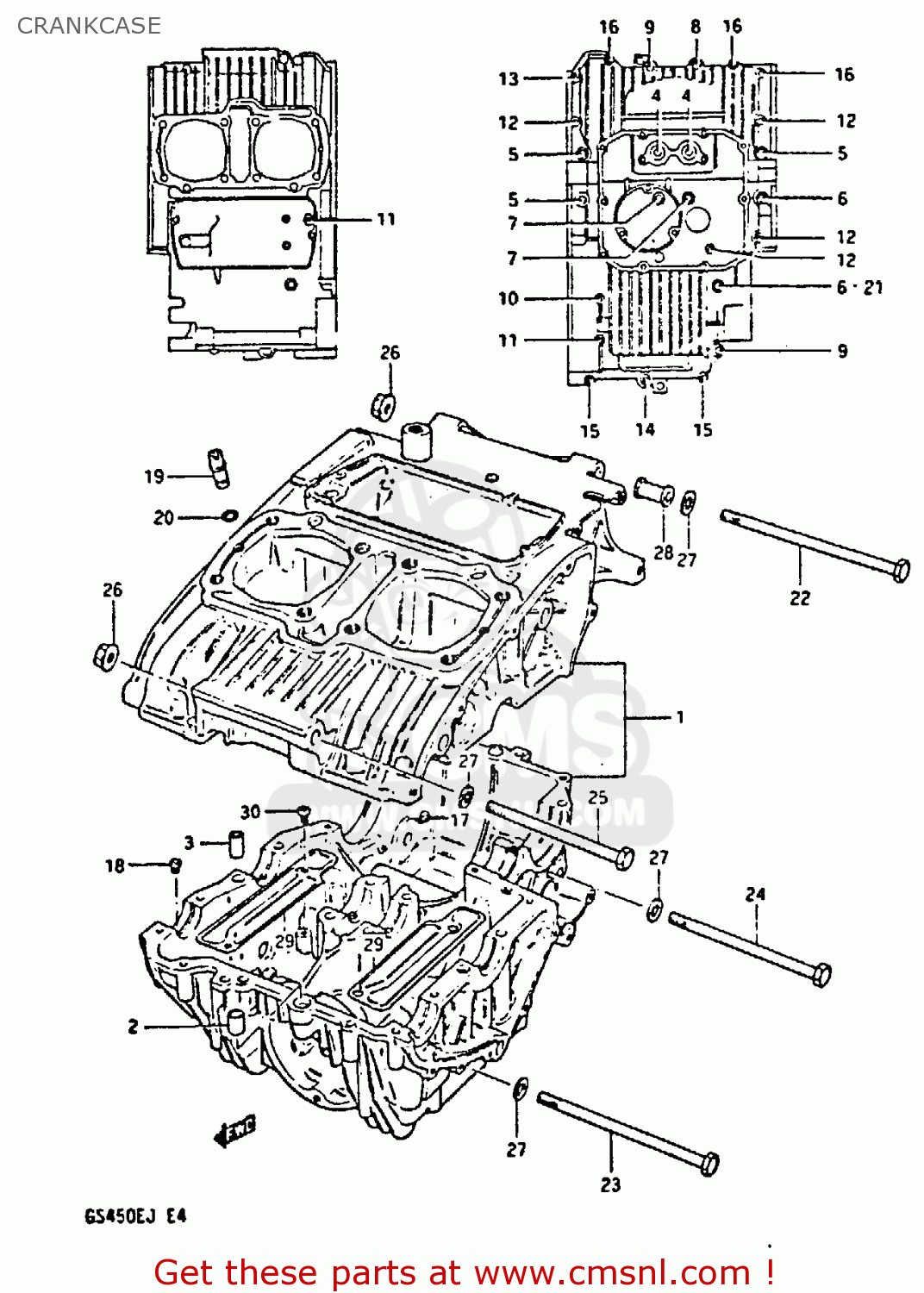

Crankcase diagram GS450SU 1988 (J) GERMANY (E22)
CRANKCASE GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1130044880
ref: 1
CRANKCASE SET
€ 1,172.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0711008706
ref: 4
BOLT (8X70)
€ 4.00
5
0910308182
ref: 5
BOLT(8X125)
€ 4.50
6
0910308024
ref: 6
BOLT
€ 3.00
7
0910308070
ref: 7
BOLT(8X100)
€ 5.00
8
0151708655
ref: 8
BOLT (8X65)
€ 3.00
9
0151708455
ref: 9
BOLT
€ 3.00
10
0910306033
ref: 10
BOLT(6X125)
€ 3.50
11
0910306067
ref: 11
BOLT(6X105)
€ 3.50
12
0151706905
ref: 12
BOLT (6X90)
€ 3.50
13
0151706705
ref: 13
BOLT
€ 2.50
14
0151706655
ref: 14
BOLT
€ 2.50
15
0151706505
ref: 15
BOLT 6X50
€ 2.00
16
0151706455
ref: 16
BOLT (6X45)
€ 2.50
17
0949322010
ref: 17
JET,AIR
€ 12.00
18
0949332002
ref: 18
JET
€ 11.50
19
0949324008
ref: 19
JET
€ 16.00
20
0928003003
ref: 20
O RING(D:1.05,ID:3.1)
€ 2.50
21
0916808008
ref: 21
GASKET 8.2X14X1 (NAS)
€ 1.00
22
0910010139
ref: 22
BOLT
€ 6.50
23
0910010145
ref: 23
BOLT
€ 46.50
24
0910010136
ref: 24
BOLT
€ 28.50
25
0910010135
ref: 25
BOLT
€ 6.50
26
0831931105
ref: 26
NUT 10MM
€ 3.00
27
0832211104
ref: 27
WASHER 10MM
€ 2.50
28
1161011410
ref: 28
SPACER,ENGINE MOUNT
€ 9.50
29
1152144100
ref: 29
PLATE,OIL SEPARATOR
€ 3.00
30
0211206108
ref: 30
SCREW
€ 1.50
