MASTER CYLINDER
GS450SU 1988 (J) GERMANY (E22)

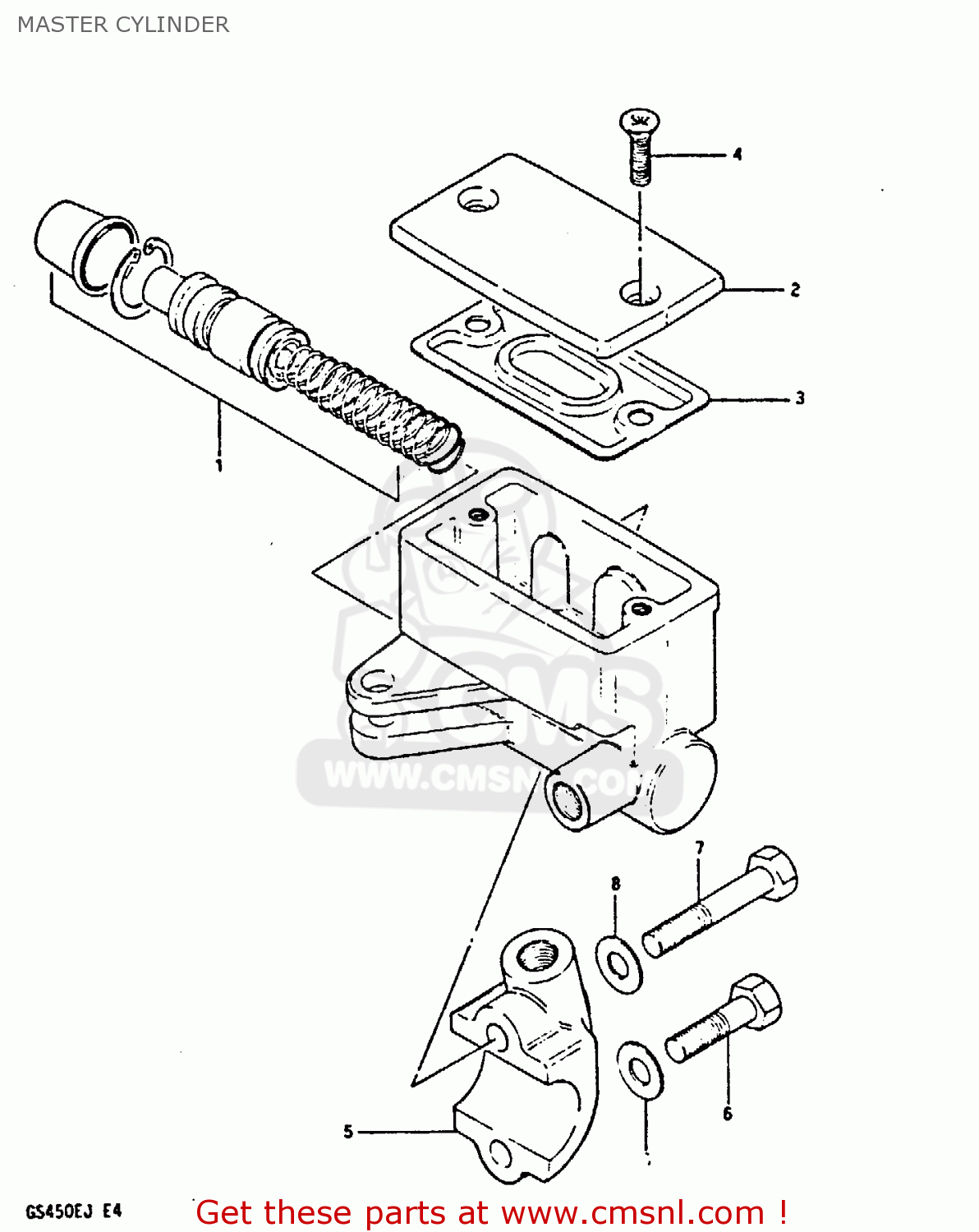

Master cylinder diagram GS450SU 1988 (J) GERMANY (E22)
MASTER CYLINDER GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
5960044300
ref: 0
MODEL E/F/G/H
CYLINDER ASSY, MASTER
€ 210.50
0
5960049401
ref: 0
GS450SE/SF E34
CYLINDER,MASTE
€ 256.00
0
5960044310
ref: 0
MODEL H E34, MODEL J
CYLINDER ASSY, MASTER
€ 210.50
1-1
5960045841
ref: 1-1
PISTON & CUP SET
€ 41.50
1-2
5960045831
ref: 1-2
GS450SE/SF E34
PISTON & CUP SET
€ 41.50
2-1
5966904A20
ref: 2-1
MODEL E/F/G/H
CAP
€ 30.00
2-2
5966904A10
ref: 2-2
MODEL H E34, MODEL J
CAP
€ 30.00
3
5966749460
ref: 3
5966749460
4
6968949300
ref: 4
SCREW
€ 1.50
5
5967144300
ref: 5
HOLDER
€ 14.50
6
0110706255
ref: 6
BOLT
€ 2.50
7
0110706405
ref: 7
BOLT
€ 2.00
8
0832221064
ref: 8
WASHER
€ 2.00
