FUEL COCK
GS450SU 1988 (J) GERMANY (E22)

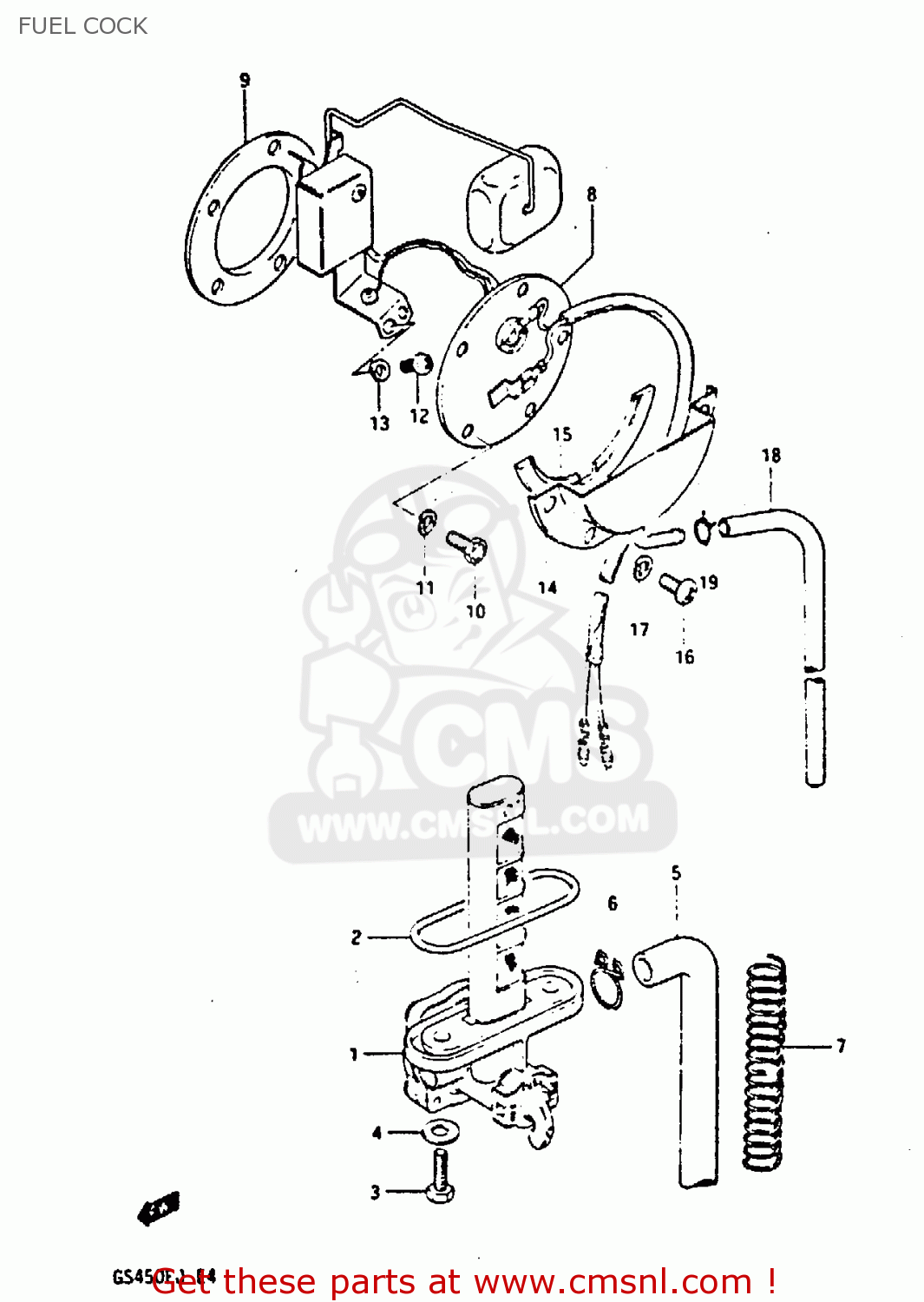

Fuel cock diagram GS450SU 1988 (J) GERMANY (E22)
FUEL COCK GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430045470
ref: 1-1
MODEL E
COCK ASSEMBLY,FUEL
€ 85.50
1-2
4430045471
ref: 1-2
MODEL F/G/H/J
COCK ASSY,FUEL
€ 85.50
2
4434849170
ref: 2
O RING
€ 3.50
3
0912806006
ref: 3
BOLT(6X20)
€ 2.00
4
0916806010
ref: 4
GASKET
€ 2.00
5-1
0934307073
ref: 5-1
MODEL E/F/G/H
HOSE
€ 17.50
5-2
093527010328A
ref: 5-2
MODEL J
HOSE
€ 17.50
6
0940110402
ref: 6
CLIP
€ 7.00
7
0944013018
ref: 7
SPRING
€ 14.50
8
3481044402
ref: 8
GUAGE, FUEL LEVEL
€ 70.50
9
3482545100
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
10
0110705106
ref: 10
BOLT
€ 1.50
11
0832121056
ref: 11
LOCK WASHER
€ 3.00
12
0211205106
ref: 12
SCREW 5X10
€ 2.00
13
0832121056
ref: 13
LOCK WASHER
€ 3.00
14
3488534500
ref: 14
PLATE,FUEL DRAIN
€ 20.50
15
3488834500
ref: 15
GASKET (NAS)
€ 8.50
16
0211205088
ref: 16
SCREW
€ 2.00
17
0832121056
ref: 17
LOCK WASHER
€ 3.00
18-1
0934305165
ref: 18-1
MODEL E/F/G/H
HOSE,FUEL
€ 13.00
18-2
0935250823890
ref: 18-2
MODEL J
HOSE
€ 13.00
19
0940108402
ref: 19
CLIP
€ 1.50
