STAND
GS450SU 1988 (J) GERMANY (E22)

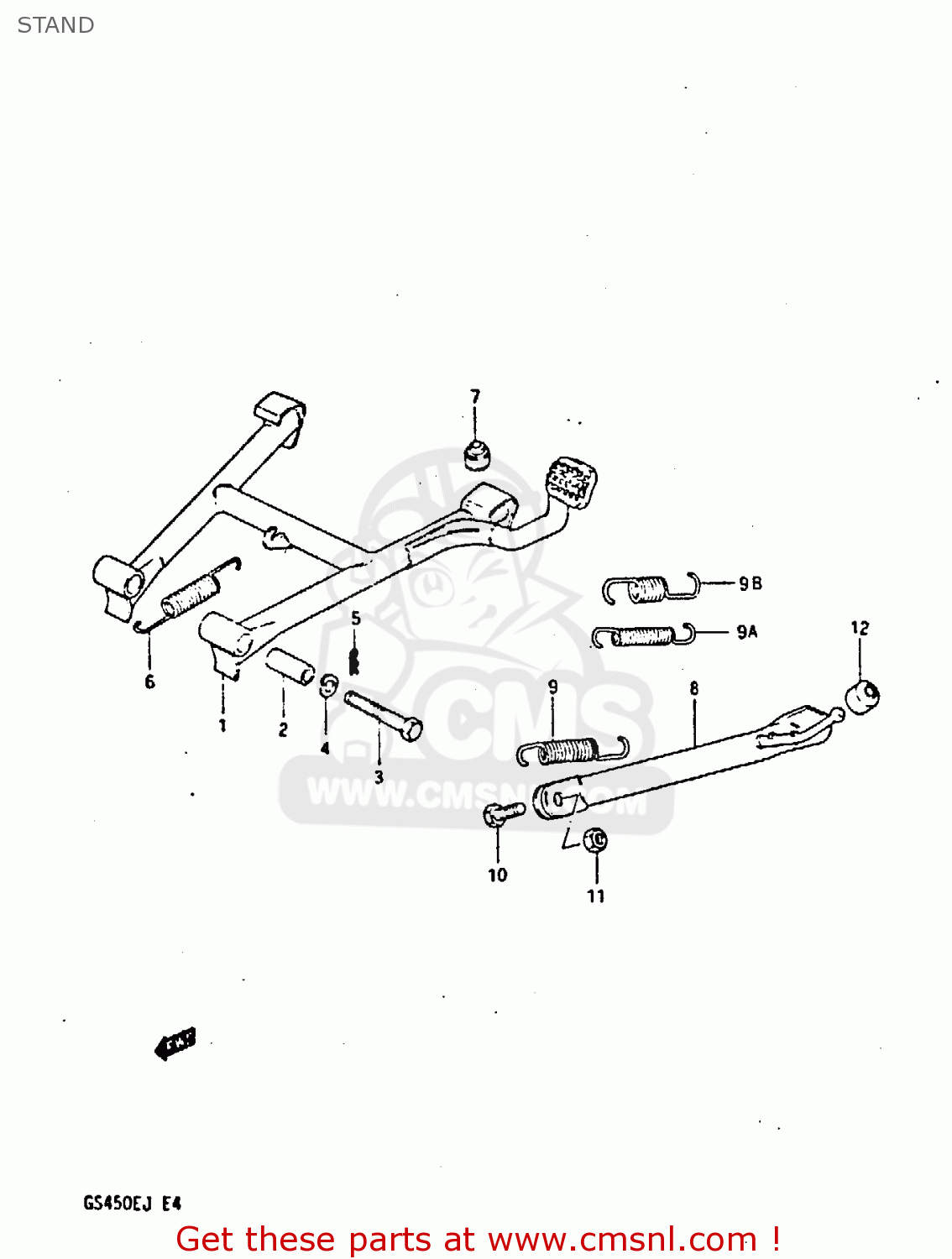

Stand diagram GS450SU 1988 (J) GERMANY (E22)
STAND GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210044400
ref: 1-1
E2, E4, E6, E21, E34
STAND,CENTER
€ 72.00
1-2
4210044410
ref: 1-2
E15, E22
STAND, CENTER
€ 91.50
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3-1
0910110030
ref: 3-1
MODEL E
BOLT(10X65)
€ 5.50
3-2
0910110034
ref: 3-2
MODEL F/G/H/J
BOLT
€ 6.50
4
0832121107
ref: 4
WASHER,LOCK,10
€ 2.00
5
0938510001
ref: 5
CLIP
€ 1.50
6-1
0944318006
ref: 6-1
E2, E4, E6, E21, E34
SPRING
€ 5.50
6-2
0944318006
ref: 6-2
E15, E22
SPRING
€ 5.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8-1
4231044100
ref: 8-1
E6, E21, E34, MODEL
STAND,SIDE
€ 29.00
8-2
4231044110
ref: 8-2
E2, E15, MODEL H E39
STAND, PROP
€ 31.50
8-3
4231044130
ref: 8-3
MODEL J
STAND, PROP
€ 0.00
9-1
0944317005
ref: 9-1
MODEL E/F/G E6, E21,
SPRING
€ 11.50
9-2
0944317008
ref: 9-2
MODEL H E6, E21, E34
SPRING
€ 11.50
9-3
0944317006
ref: 9-3
E2, E15, MODEL H E39
SPRING
€ 4.50
9A
0944315037
ref: 9A
MODEL J
SPRING
€ 4.50
9B
0944323001
ref: 9B
MODEL J
SPRING
€ 7.50
10-1
0910010067
ref: 10-1
E6, E21, E34, MODEL
BOLT(10X30)
€ 3.50
10-2
0911110019
ref: 10-2
E2, E15, MODEL H E39
BOLT L:30
€ 4.50
11
0831022106
ref: 11
NUTM10X1.25X8
€ 2.00
12
0932007001
ref: 12
CUSHION
€ 4.00
