STEERING STEM
GS450SU 1988 (J) GERMANY (E22)

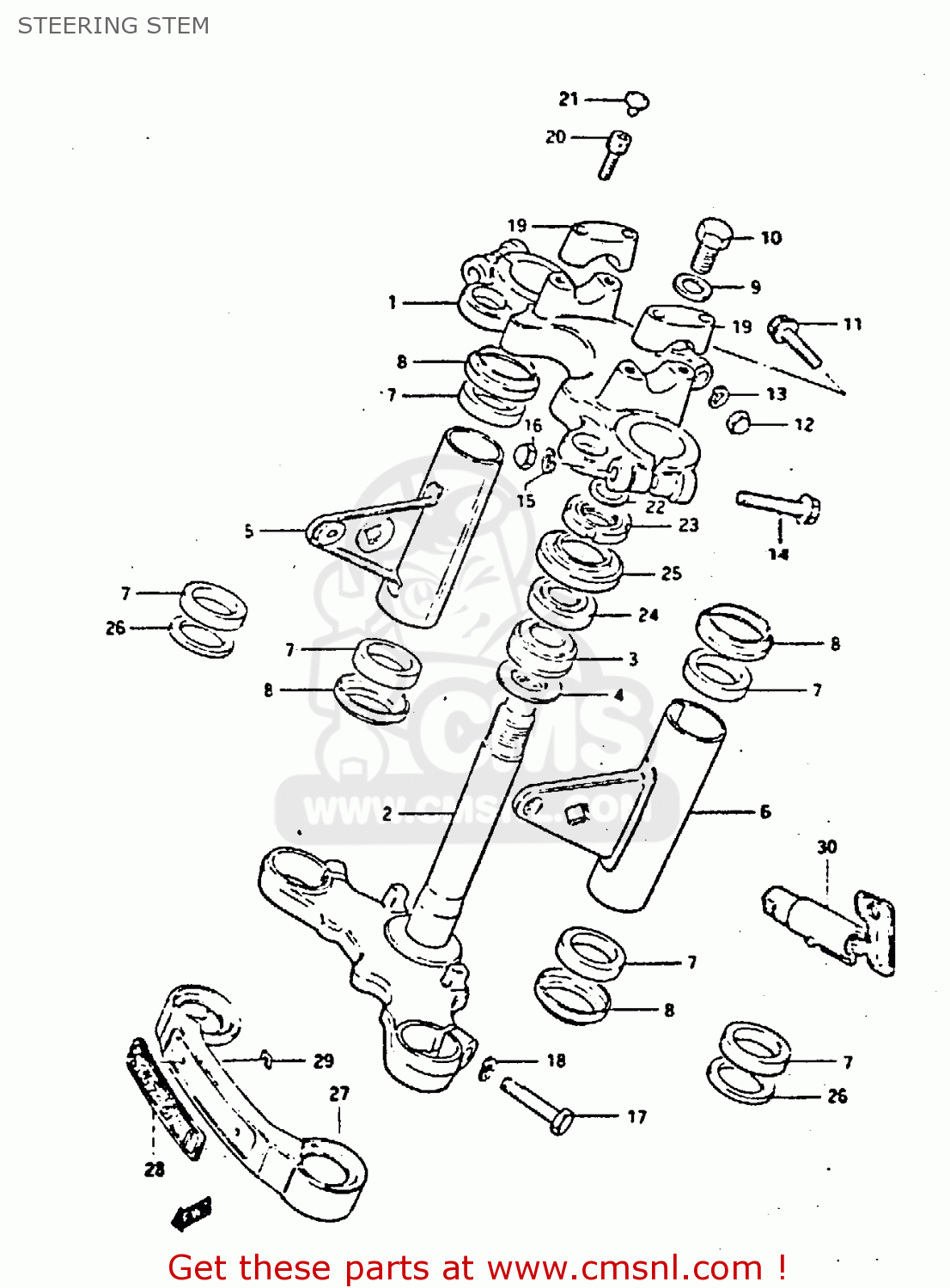

Steering stem diagram GS450SU 1988 (J) GERMANY (E22)
STEERING STEM GS450SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5131144110291
ref: 1
HEAD,STEERING STEM
€ 100.50
2
5140044851
ref: 2
STEM,STEERING
€ 97.00
3
0926530005
ref: 3
BEARING
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
€ 4.00
5
5153033200291
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 100.00
6
5154033200291
ref: 6
BRACKET,HEADLAMP,LEFT
€ 99.00
7
5155644100
ref: 7
CUSHION,HEADLAMP BRACKET
€ 5.50
8
5155544100
ref: 8
CAP,HEADLAMP BRACKET
€ 5.50
9
0916012020
ref: 9
WASHER (12.5X27X1.6)
€ 2.00
10
0910412013
ref: 10
BOLT(12X20)
€ 6.50
11
0151708504
ref: 11
BOLT, UPPER
€ 2.50
12
0831311085
ref: 12
NUT,M8X1.25X12
€ 2.00
13
0832121084
ref: 13
WASHER,LOCK,8.
€ 2.50
14
0151710555
ref: 14
BOLT
€ 3.00
15
0832131105
ref: 15
GS450EE/EG/EH/EJ E2,
LOCK WASHER
€ 3.00
16
0914510002
ref: 16
GS450EE/EG/EH/EJ E2,
NUT
€ 4.00
17
0110710404
ref: 17
BOLT
€ 2.50
18
0832121104
ref: 18
WASHER,LOCK
€ 3.00
19
5621134300291
ref: 19
HOLDER,HANDLEBAR(BLACK)
€ 42.00
20
0711008305
ref: 20
BOLT, REAR (8X30)
€ 3.00
21
0925006004
ref: 21
CAP(OD:14.5)
€ 1.50
22
0916018002
ref: 22
WASHER(18.5X24X1)
€ 2.00
23
5163134200
ref: 23
NUT,STEERING STEM
€ 23.00
24
0926525008
ref: 24
TAPER,ROLLER BEARING
€ 48.50
25
5164340502
ref: 25
DUST SEAL,STEERING UPR
€ 8.00
26
5155511400
ref: 26
GS450SE/SF/SG/SH/SJ
SEAT,HEADLAMP BRACKET LWR
€ 2.00
27-1
5187144220
ref: 27-1
GS450EE/EG/EH/EJ
COVER,FRONT FORK
€ 22.50
27-2
5187144210
ref: 27-2
GS450EE E39, GS450EJ
COVER,FRONT FORK
€ 22.50
28
6821144210
ref: 28
GS450EE/EG/EH/EJ
EMBLEM,FR FORK COVER
€ 23.00
29
0914803002
ref: 29
GS450EE/EG/EH/EJ
NUT
€ 3.00
30
5190022662
ref: 30
E15, E22, E77
LOCK ASSEMBLY,STEERING (NEI
€ 168.50
