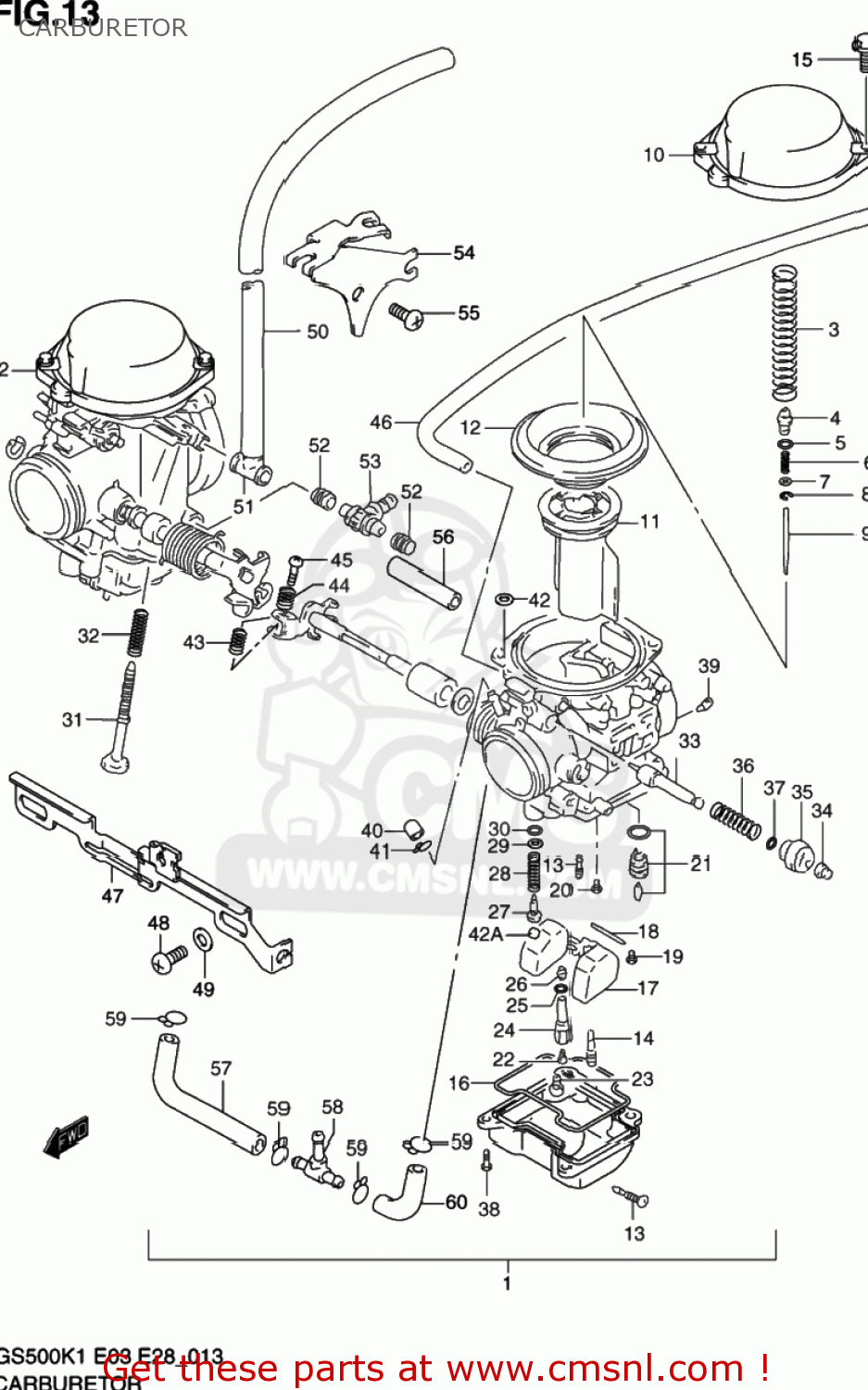

CARBURETOR

ref

part #

description

quantity

1-1

1320101DH0
ref: 1-1

CARBURETOR ASSY, LH

€ 0.00

1-2

1320101DJ0
ref: 1-2

CARBURETOR ASSY,L

€ 0.00

2-1

1320201DH0
ref: 2-1

CARBURETOR ASSY,R

€ 0.00

2-2

1320201DJ0
ref: 2-2

CARBURETOR ASSY,R

€ 0.00

3

1357319E00
ref: 3

SPRING

€ 7.50

4

1341833E00
ref: 4

HOLDER

€ 4.50

5

0928005004
ref: 5

O RING(D:1.9,ID:4.8)

€ 2.00

6

1348113F00
ref: 6

SPRING

€ 4.00

7

1338219E00
ref: 7

WASHER

€ 3.00

8

1338713F00
ref: 8

RING

€ 6.00

9

1338301DH0
ref: 9

NEEDLE,JET(5DH42-1)

€ 0.00

10

1350207F00
ref: 10

COVER ASSY,DIAPHRAGM

€ 47.00

11

1350129FA0
ref: 11

VALVE,PISTON

€ 57.50

12

1350717C01
ref: 12

DIAPHRAGM

€ 24.50

13

1324702340
ref: 13

PLUG,DRAIN

€ 5.50

14

0949217016
ref: 14

JET,PILOT(17.5)

€ 15.50

15

0211204107
ref: 15

SCREW

€ 2.00

16

1325804F00
ref: 16

GASKET (NAS)

€ 9.00

17

1325004F00
ref: 17

FLOAT ASSY

€ 27.50

18

1325401010
ref: 18

PIN,FLOAT

€ 3.00

19

0211204083
ref: 19
02112-0408A

SCREW

€ 2.00

20

1360205A10
ref: 20

SCREW

€ 4.00

21

1337033E80
ref: 21

VALVE ASSY,NEEDLE(NI)

€ 61.00

22

0949125018
ref: 22

JET,MAIN(127.5)

€ 15.50

23

0949160010
ref: 23

JET,MAIN(60)

€ 16.00

24

1338507F00
ref: 24

HOLDER,JET

€ 29.00

25

1324643010
ref: 25

O RING

€ 4.00

26

0949400949
ref: 26

JET,NEEDLE(P-5M)

€ 38.00

27

1327933E00
ref: 27

ADJUSTER

€ 9.50

28

1326847070
ref: 28

SPRING

€ 5.00

29

1329129900
ref: 29

WASHER

€ 2.00

30

1329529900
ref: 30

O RING,PILOT AIR SCREW

€ 4.00

31

1326713F00
ref: 31

SCREW,ADJUST

€ 12.50

32

1327133C00
ref: 32

SPRING

€ 4.50

33

1341105300
ref: 33

PLUNGER

€ 23.50

34

1368231210
ref: 34

CAP,STARTER VALVE

€ 5.00

35

1341844080
ref: 35

GUIDE SCREW,PLUNGER

€ 8.00

36

1341726D00
ref: 36

SPRING

€ 5.50

37

1327847090
ref: 37

O RING

€ 2.00

38

1324733E00
ref: 38

SCREW

€ 3.00

39

0949332007
ref: 39

JET,AIR(160)

€ 11.50

40

1327484000
ref: 40

CAP

€ 5.50

41

0940106101
ref: 41

CLIP

€ 2.50

42

1329533010
ref: 42

O RING

€ 4.50

42A

1328105A00
ref: 42A

PLUG

€ 3.50

43

1326896111
ref: 43

SPRING,THROTTLE SCREW

€ 4.50

44

1327144B00
ref: 44

SPRING

€ 4.00

45

1326744B00
ref: 45

SCREW

€ 3.50

46

1368301DF0
ref: 46

HOSE

€ 17.50

47

1341301DE0
ref: 47

PLATE

€ 33.00

48

1360204F00
ref: 48

SCREW

€ 3.50

49

1355733E00
ref: 49

PACKING

€ 3.00

50

1368301DE0
ref: 50

HOSE

€ 18.50

51

1368301DB0
ref: 51

HOSE

€ 15.00

52

1367344B00
ref: 52

SEAL

€ 6.00

53

1368533EQ0
ref: 53

NIPPLE

€ 22.50

54

1356501DE0
ref: 54

BRACKET

€ 13.50

55

0212205103
ref: 55
02122-0510A

SCREW

€ 1.00

56

1368501DB0
ref: 56

PIPE

€ 11.00

57

1368448B10
ref: 57

HOSE

€ 19.50

58

1368548B00
ref: 58

NIPPLE

€ 9.00

59

0940110410
ref: 59
09401-10401

CLIP

€ 1.50

60

1368448B10
ref: 60

HOSE

€ 19.50
