CYLINDER

GS500 2001 (K1) USA (E03)

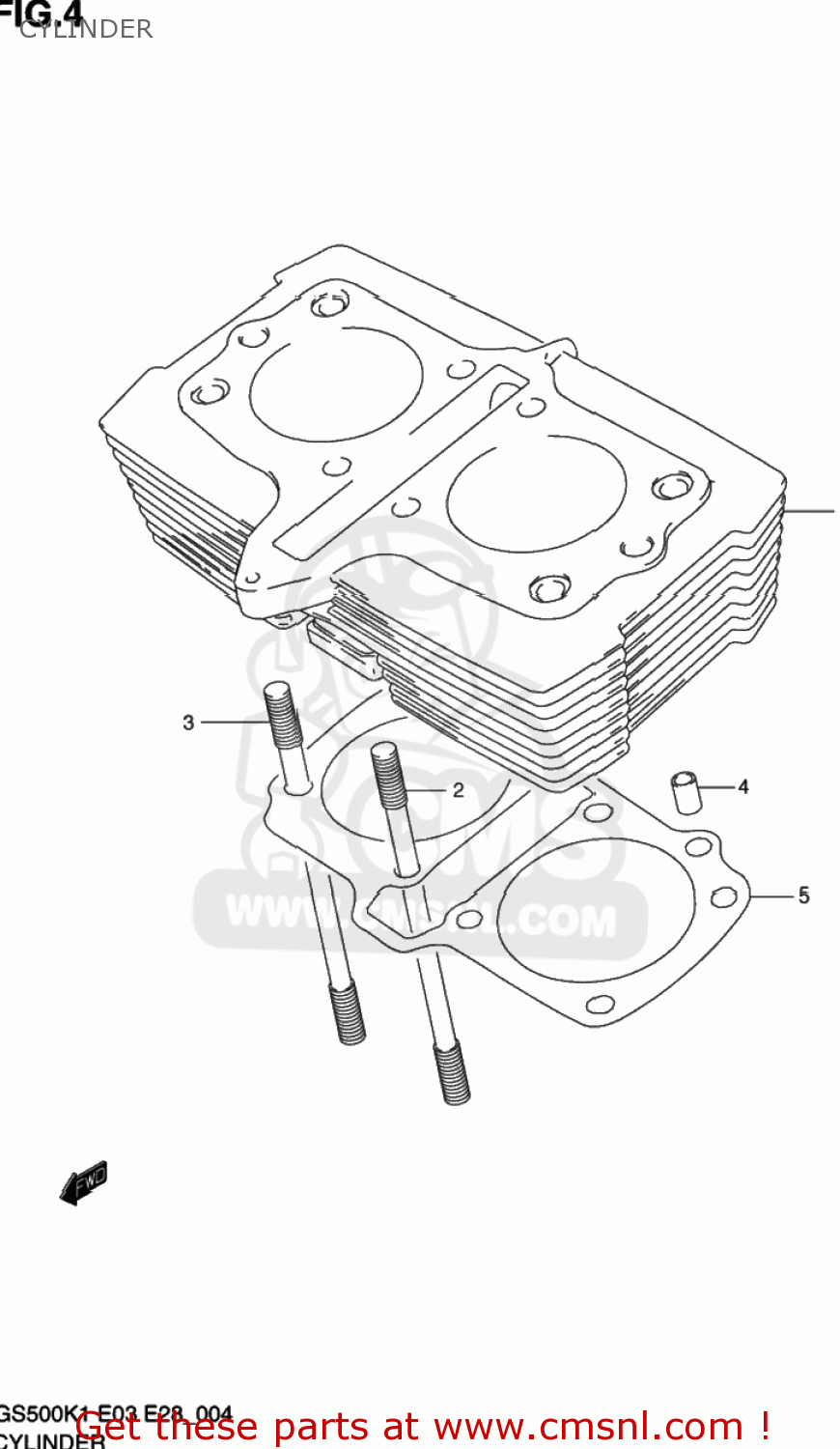

Cylinder diagram GS500 2001 (K1) USA (E03)

CYLINDER GS500 2001 (K1) USA (E03)

CYLINDER GS500 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121001D200F0
ref: 1

CYLINDER

€ 791.50

2

0910810112
ref: 2

BOLT,STUD

€ 9.00

3

0910810041
ref: 3

BOLT,STUD

€ 9.00

4

0421111189
ref: 4

PIN

€ 2.00

5

1124101D00
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50
