MUFFLER

GS500 2001 (K1) USA (E03)

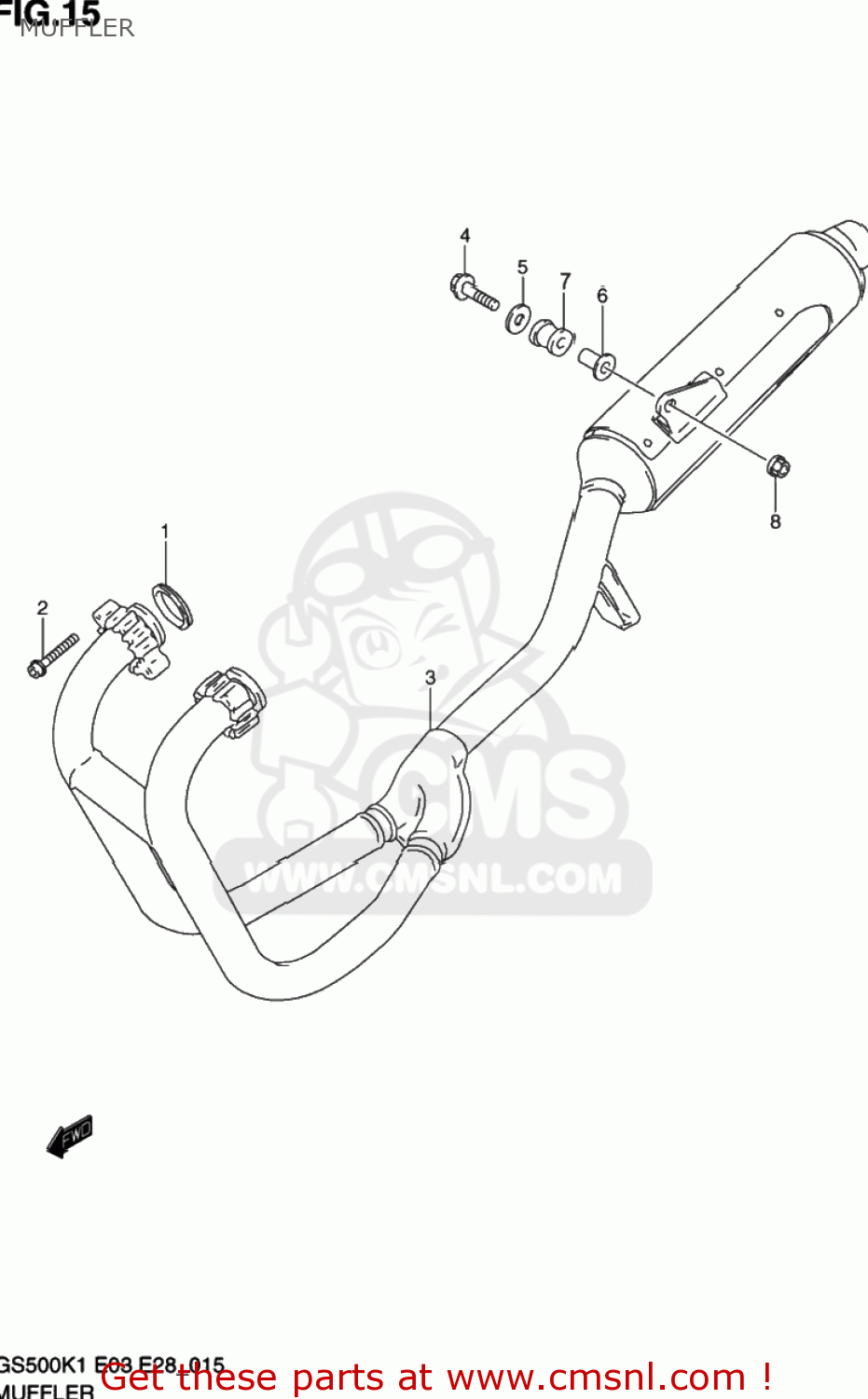

Muffler diagram GS500 2001 (K1) USA (E03)

MUFFLER GS500 2001 (K1) USA (E03)

MUFFLER GS500 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1418101D00
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

0712008403
ref: 2
07120-0840A

BOLT

€ 3.50

3

1430101DC0H01
ref: 3

MUFFLER

€ 559.00

4

0910308256
ref: 4

BOLT(8X40)

€ 6.00

5

0916008136
ref: 5

WASHER(8.5X28X1.6)

€ 3.50

6

0918008152
ref: 6

SPACER(8.6X12X24.2)

€ 6.00

7

0932012048
ref: 7

CUSHION

€ 5.00

8

0831610083
ref: 8
08316-1008B

NUT

€ 3.00
